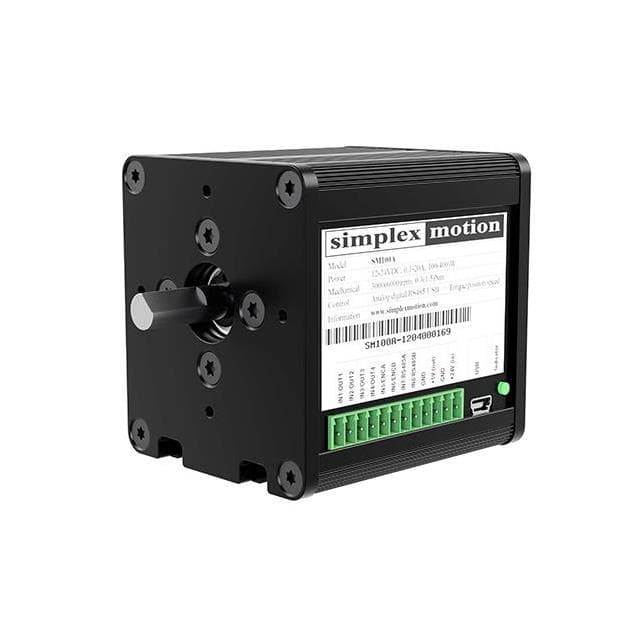

Simplex Motion AB SM100B — Integrated Servomotor 100W
Manufacturer part no. SM100B
€476.55
In stock — 26 units
- Conforme à RoHS
Estimated landed cost
| Item | €476.55 |
| Shipping (free over threshold) | Free |
| VAT (20%) | €95.31 |
| Total delivered | €571.86 |
Estimate for a single item delivered to mainland France, shipped from outside the EU: customs duty and clearance fees may apply and are charged by the carrier.
Volume pricing
| Qty | Unit price | Saving |
|---|---|---|
| ≥ 1 | €476.55 | |
| ≥ 5 | €445.94 | −6 % |
| ≥ 10 | €428.46 | −10 % |
Datasheets & documents
Specifications (automatically extracted)
Mechanical
| Speed | 6 000 rpm |
Other characteristics
| Puissance nominale | 100 W |
| Couple assigne oz in mnm | 45 / 320 |
| Couple momentane max oz in mnm | 280 / 2000 |
| Diametre arbre | 0,315po (8,00mm) |
| Espacement des orifices de montage | 1,969 po (50,00mm) |
| Fonction | Servomoteur |
| Fonctionnalites | Contrôleur intégré |
| Longueur arbre et roulement | 0,709po (18,00mm) |
| Style de terminaison | Connecteur |
| Taille dimension | Rectangular - 2.913" x 2.520" (74.00mm x 64.00mm) |
| Temperature de fonctionnement | -20°C ~ 85°C |
| Tension nominale | 12 ~ 24V CC |
| Type | Moteur CC |
| Type de codeur | Incrémental |
Description
Moteur CC Servomoteur 6000 tr/min 100W Incrémental 12 ~ 24V CC
Cheaper alternatives
Semantically close products available for less — check the specs match your need.
