DigiKeyTexas Instruments· Integrated circuits

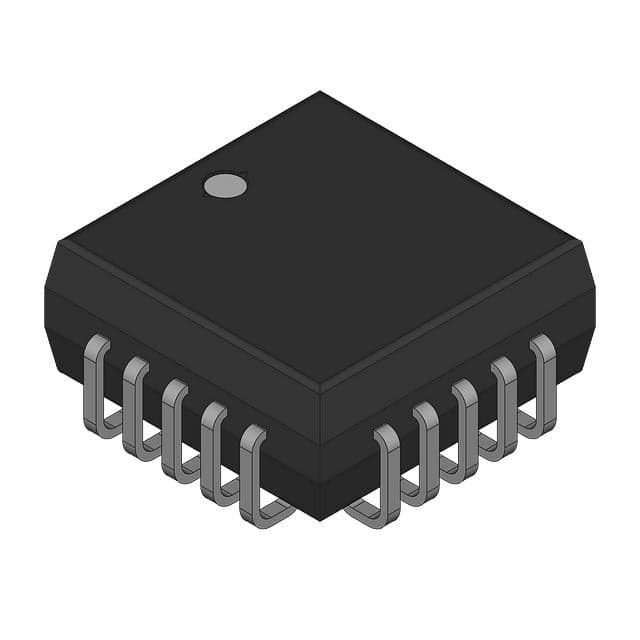

Texas Instruments UC3717Q — STEPPER MOTOR CONTROLLER, 1A
Manufacturer part no. UC3717Q
€3.10
In stock — 6132 unitslead time 7 d
- min. order 85
- Non conforme à RoHS
Estimated landed cost
| Item | €3.10 |
| Shipping | €18.00 |
| VAT (20%) | €4.22 |
| Total delivered | €25.32 |
Estimate for a single item delivered to mainland France, shipped from outside the EU: customs duty and clearance fees may apply and are charged by the carrier.
Datasheets & documents
Specifications (automatically extracted)
Electrical
| Current | 1 A |
Other characteristics
| Applications | Usage général |
| Boitier | 20-LCC (Sortie en J) |
| Boitier fournisseur | 20-PLCC (9x9) |
| Configuration de sortie | Demi-pont (2) |
| Fonction | Variateur - entièrement intégré, commande et étage de puissance |
| Resolution en pas | 1, 1/2 |
| Technologies | MOSFET de puissance |
| Temperature de fonctionnement | 0°C ~ 70°C (TA) |
| Tension alimentation | 4,75V ~ 5,25V |
| Tension charge | 10V ~ 40V |
| Type de montage | Montage en surface |
| Type de moteur ca cc | CC à balais |
| Type de moteur pas a pas | Bipolaire |
Compliance
| Moisture sensitivity (MSL) | 3 (168 heures) |
Description
MOSFET de puissance Pilote de moteur Bipolaire 20-PLCC (9x9)
