DigiKeyAirgain· RF and wireless

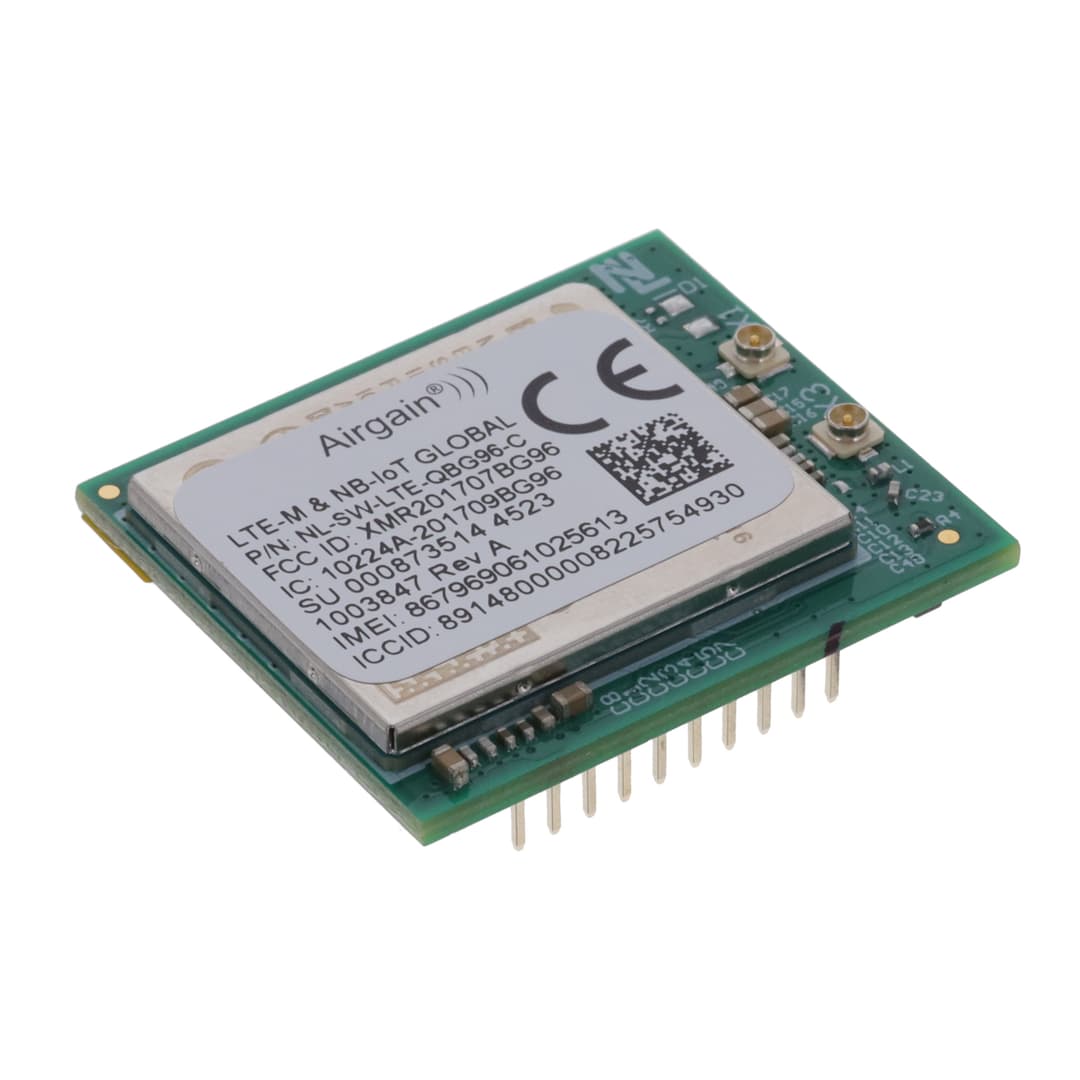

Airgain NL-SW-LTE-QBG96-C — RF TXRX MODULE CELL/NAV U.FL TH
Manufacturer part no. NL-SW-LTE-QBG96-C
€92.53
In stock — 614 unitslead time 168 d
- Unknown
Estimated landed cost
| Item | €92.53 |
| Shipping (free over threshold) | Free |
| VAT (20%) | €18.51 |
| Total delivered | €111.04 |
Estimate for a single item delivered to mainland France, shipped from outside the EU: customs duty and clearance fees may apply and are charged by the carrier.
Datasheets & documents
Specifications (automatically extracted)
Other characteristics
| Debit de donnees | 375 kbps |
| Puissance sortie | 23 dBm |
| Sensibilite | -157 dBm |
| Boitier | Module 20-DIP |
| Circuit integre composant utilise | BG96 |
| Frequence | 1,559GHz ~ 1,609GHz |
| Interfaces serie | GPIO, UART, USB |
| Norme gamme rf | Cellulaire, Navigation |
| Protocole | BeiDou, Galileo, GLONASS, GNSS, GPS, LTE |
| Temperature de fonctionnement | -40°C ~ 85°C |
| Tension alimentation | 3,4V ~ 4,3V |
| Type d antenne | Antenne non incluse, U.FL |
| Type de montage | Trou traversant |
Compliance
| Moisture sensitivity (MSL) | 1 (illimité) |
Description
Cellulaire, Navigation BeiDou, Galileo, GLONASS, GNSS, GPS, LTE Modules d'émetteurs-récepteurs RF 1,559GHz ~ 1,609GHz Antenne non incluse, U.FL Trou traversant
Cheaper alternatives
Semantically close products available for less — check the specs match your need.
