DigiKeyAnalog Devices Inc./Maxim Integrated· Motors, actuators, solenoids and drivers

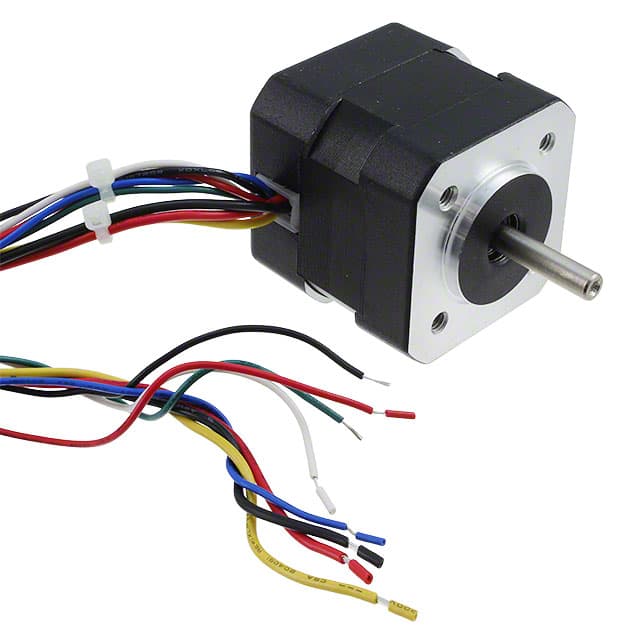

Analog Devices Inc./Maxim Integrated QBL4208-41-04-006 — STANDARD MOTOR 4000 RPM 24V
Manufacturer part no. QBL4208-41-04-006
€96.46
In stock — 50 unitslead time 147 d
- Conforme à RoHS 3
Estimated landed cost
| Item | €96.46 |
| Shipping (free over threshold) | Free |
| VAT (20%) | €19.29 |
| Total delivered | €115.75 |
Estimate for a single item delivered to mainland France, shipped from outside the EU: customs duty and clearance fees may apply and are charged by the carrier.
Volume pricing
| Qty | Unit price | Saving |
|---|---|---|
| ≥ 1 | €96.46 | |
| ≥ 5 | €91.74 | −5 % |
Datasheets & documents
Specifications (automatically extracted)
Electrical
| Voltage | 24 V |
Mechanical
| Speed | 4 000 rpm |
Other characteristics
| Puissance nominale | 26.2 W |
| Couple assigne oz in mnm | 8,85 / 62,5 |
| Couple momentane max oz in mnm | 26,91 / 190 |
| Diametre arbre | 0,197po (5,00mm) |
| Espacement des orifices de montage | 1,417 po (36,00mm) |
| Fonction | Standard |
| Longueur arbre et roulement | 0,866 po (22,00mm) |
| Style de terminaison | Fils conducteurs |
| Taille dimension | Carré - 1,654po x 1,654po (42,00mm x 42,00mm) |
| Temperature de fonctionnement | -20°C ~ 40°C |
| Tension nominale | 24V CC |
| Type | Moteur CC |
Compliance
| Moisture sensitivity (MSL) | 1 (illimité) |
Description
Brushless DC (BLDC) Moteur CC Standard 4000 tr/min 26,2W 24V CC
