DigiKeyCrouzet· Motors, actuators, solenoids and drivers

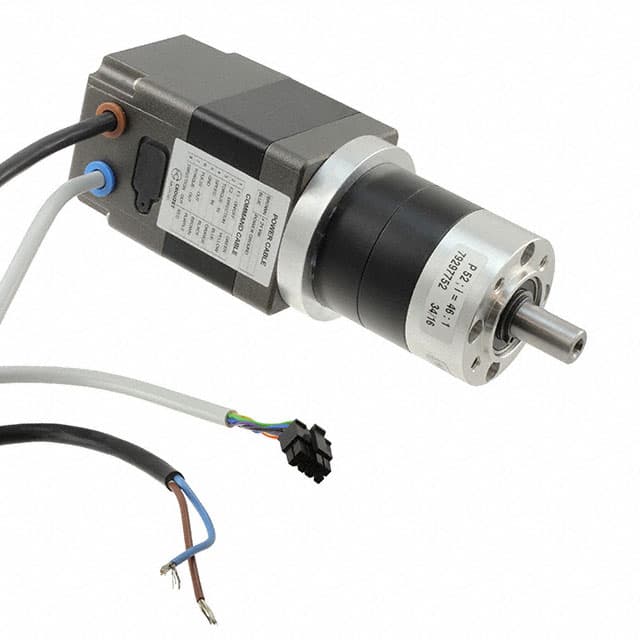

Crouzet 80149525 — GEARMOTOR 43RPM 12-32V TNI21 P52
Manufacturer part no. 80149525
€1444.52
On backorderlead time 189 d
- Conforme à RoHS
Estimated landed cost
| Item | €1444.52 |
| Shipping (free over threshold) | Free |
| VAT (20%) | €288.90 |
| Total delivered | €1733.42 |
Estimate for a single item delivered to mainland France, shipped from outside the EU: customs duty and clearance fees may apply and are charged by the carrier.
Datasheets & documents
Specifications (automatically extracted)
Electrical
| Voltage | 32 V |
Mechanical
| Speed | 43 rpm |
Other characteristics
| Puissance nominale | 66 W |
| Rapport de demultiplication | 92.7 |
| Couple assigne oz in mnm | 1691 / 11940 |
| Couple momentane max oz in mnm | 3540 / 25000 |
| Diametre arbre | 0,472 po (12,00mm) |
| Espacement des orifices de montage | 1,575po (40,00mm) |
| Fonction | Motoréducteur |
| Fonctionnalites | Contrôleur intégré |
| Longueur arbre et roulement | 0,984 po (25,00mm) |
| Temperature de fonctionnement | -20°C ~ 70°C |
| Tension nominale | 12 ~ 32V CC |
| Type | Moteur CC |
Compliance
| Moisture sensitivity (MSL) | 1 (illimité) |
Description
Brushless DC (BLDC) Moteur CC Motoréducteur 43 tr/min 66W 12 ~ 32V CC
