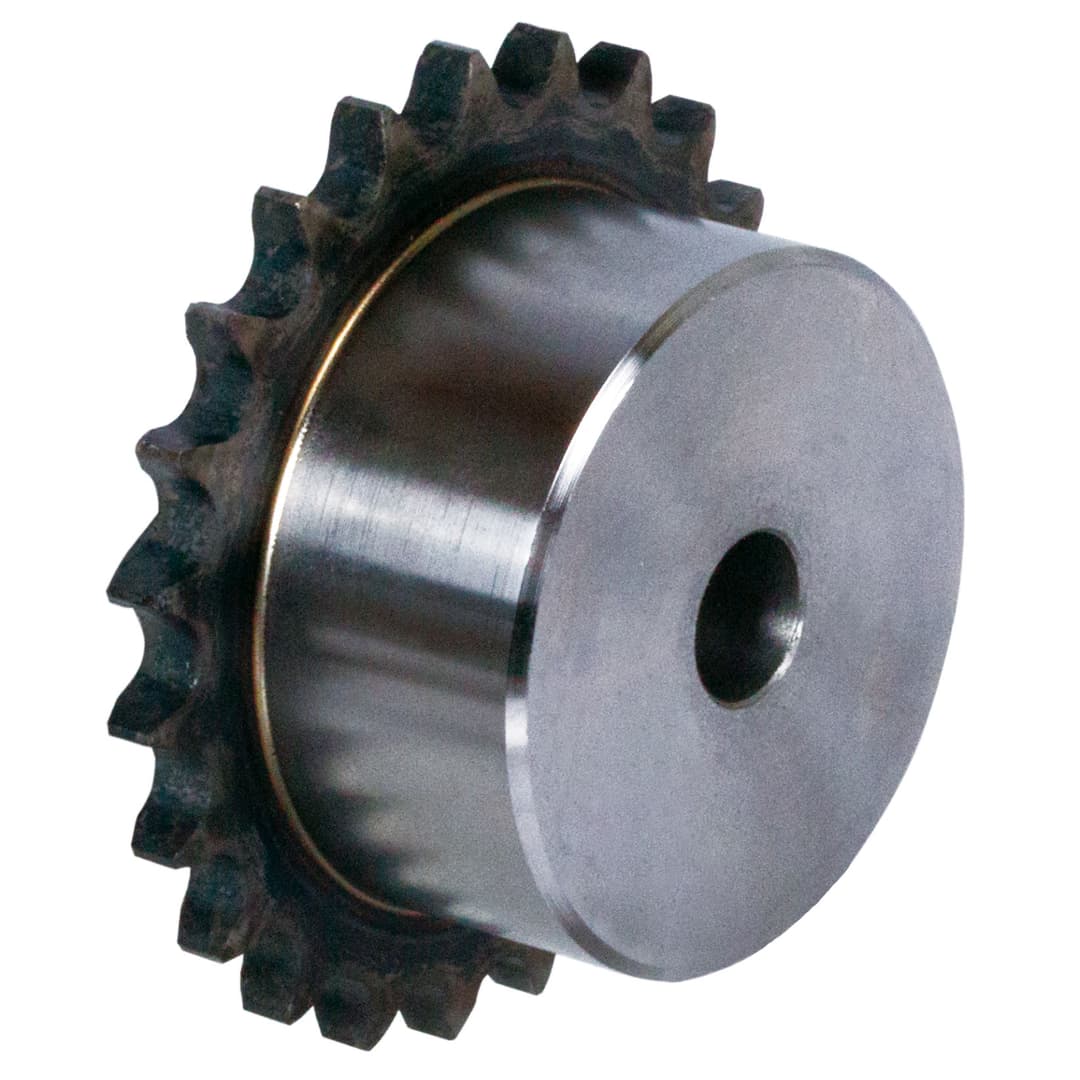

Sprocket KRG with hub 08 B-1 1/2×5/16″ 15 teeth material steel teeth induction hardened
Manufacturer part no. 10588115
$18.45≈ 16.02 €
On backorderlead time 14 d
Estimated landed cost
| Item | €16.02 |
|---|---|
| Shipping | €15.00 |
| VAT (20%) | €6.20 |
| Total delivered | €37.22 |
Estimate for a single item delivered to mainland France, shipped from outside the EU: customs duty and clearance fees may apply and are charged by the carrier.
Datasheets & documents
Specifications (automatically extracted)
Mechanical
| Weight | 385 g |
Other characteristics
| Bore | 10 mm |
| Hub diameter | 45 mm |
| No of teeth | 15 |
| Number of strands | 1 |
| Outer diameter | 65.5 mm |
| Pitch circle diameter | 61.09 mm |
| Total length | 28 mm |
| Din iso no | 08 B-1 |
| Hardened | Yes |
| Hub | One sided |
| Material | Steel (1045) |
| Surface | Blank |
Description

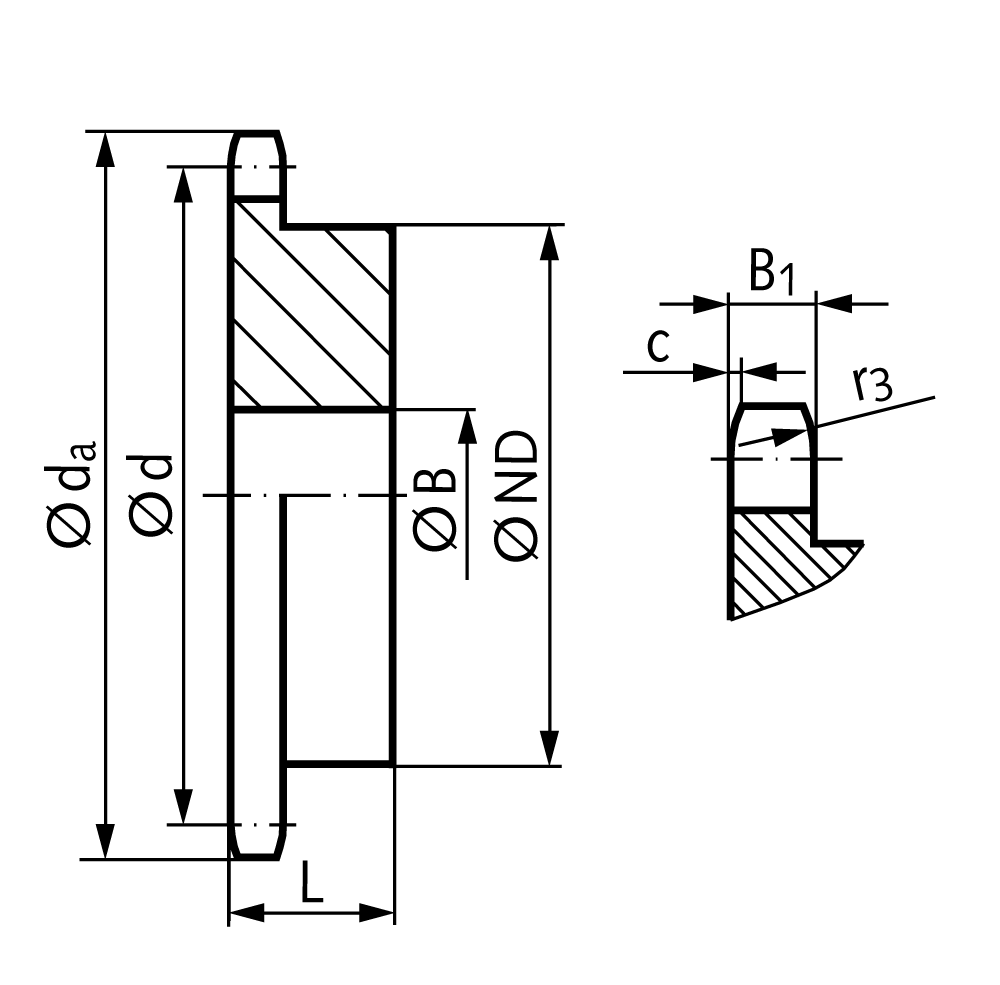

Material: Steel C45, teeth induction hardened (≈ HRC 50). Pre-bored. General dimensions: B1 = 7,2 mm, c = 1,3 mm, r3 = 13 mm. Other dimensions: See the table.
