MÄDLERMÄDLER· Sprockets, Chains, Accessories

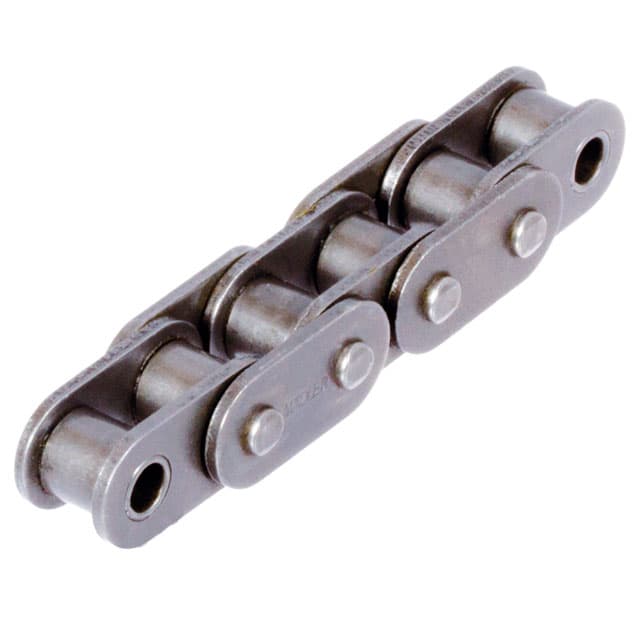

Roller chain similar to 12 B-1 pitch 3/4×7/16″ material stainless steel 1.4301 with straight plates
Manufacturer part no. 10799000GL
$71.82≈ 62.37 €
On backorderlead time 14 d
Estimated landed cost
| Item | €62.37 |
|---|---|
| Shipping | €15.00 |
| VAT (20%) | €15.47 |
| Total delivered | €92.84 |
Estimate for a single item delivered to mainland France, shipped from outside the EU: customs duty and clearance fees may apply and are charged by the carrier.
Datasheets & documents
Specifications (automatically extracted)
Mechanical
| Weight | 1.32 g |
Other characteristics
| B4 | 22.5 mm |
| B7 | 2.7 mm |
| Bolt | 5.72 mm |
| Link height hmax | 16 mm |
| Link thickness s1 2 | 1.85 mm |
| Roller d1 | 12.07 mm |
| Tensile strenghtmin | 18.5 |
| Din isonr | 12 B-1-GL |
| P x b1 | 19,05 x 11,68 |
Description
Similar to DIN ISO 606 (ex DIN 8187). Material: Stainless steel 1.4301 (AISI 304). Simplex roller chains with good chemical resistance. Main dimensions according to DIN 8187, but with straight link plates, to use as conveyor chain or drive chain. Chains with an uneven number of links are supplied with inner links at both ends. Connecting links must be ordered separately. 1 Unit = 1 Meter = 39.37 Inches
