MÄDLERMÄDLER· Sprockets, Chains, Accessories

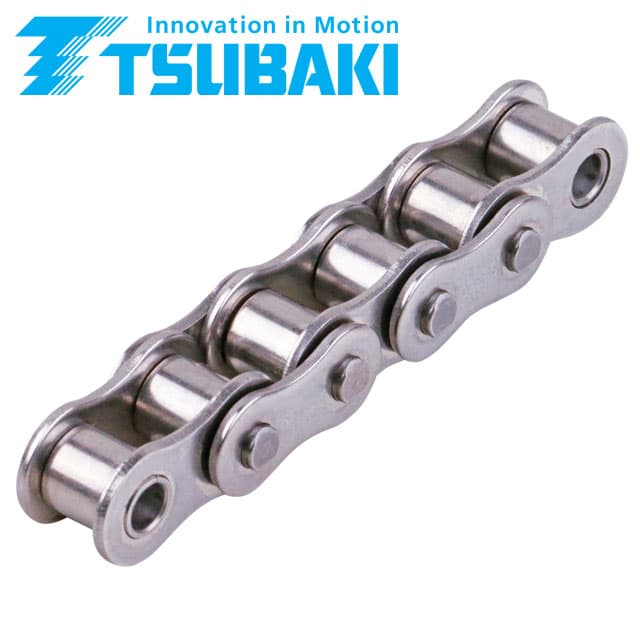

Premium stainless steel roller chain similar to 12 B-1
Manufacturer part no. 10799000P
$145.33≈ 126.21 €
On backorderlead time 14 d
Estimated landed cost
| Item | €126.21 |
|---|---|
| Shipping | €15.00 |
| VAT (20%) | €28.24 |
| Total delivered | €169.45 |
Estimate for a single item delivered to mainland France, shipped from outside the EU: customs duty and clearance fees may apply and are charged by the carrier.
Datasheets & documents
Specifications (automatically extracted)
Mechanical
| Weight | 1.25 g |
Other characteristics
| B4 | 22.7 mm |
| B7 | 4.6 mm |
| Bolt | 5.72 mm |
| Breaking strength approx | 0.87 |
| Inner width b2 | 15.62 mm |
| Roller d1 | 12.07 mm |
| Din isonr | 12 B-1 |
| Pitch p x inner width b1 | 19,05 x 11,68 |
Description
Similar to DIN ISO 606 (ex DIN 8187). Material: Stainless steel, equivalent 1.4301 (AISI 304). Cold forged, with minimal magnetism. Premium simplex roller chains with high chemical resistance. Produced in consistently high quality. Main dimensions according to DIN. Due to the material properties, the transmittable power and breaking load are below the DIN values. The work load should not be higher than stated. Not lubricated. The chains must be lubricated according to the type of application. Waisted link plates (size 06 with straight link plates). Chains are supplied with an uneven number of links, with inner links at both ends. Temperature range: -20°C to +400°C. Please note: Packing Unit 5m with 1 Connecting Link. 1 Unit = 1 Meter = 39.37 Inches
