MÄDLERMÄDLER· Sprockets, Chains, Accessories

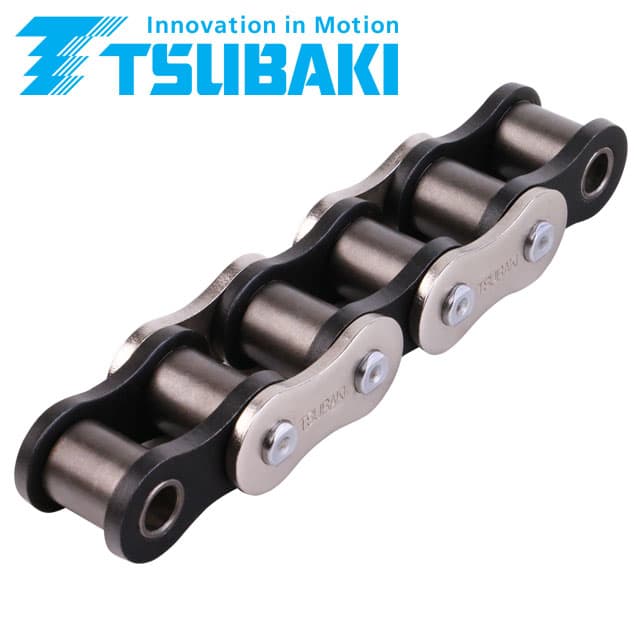

Roller chain Titan 16 B-1
Manufacturer part no. 10800000T
$163.35≈ 141.86 €
On backorderlead time 14 d
Estimated landed cost
| Item | €141.86 |
|---|---|
| Shipping | €15.00 |
| VAT (20%) | €31.37 |
| Total delivered | €188.23 |
Estimate for a single item delivered to mainland France, shipped from outside the EU: customs duty and clearance fees may apply and are charged by the carrier.
Datasheets & documents
Specifications (automatically extracted)
Mechanical
| Weight | 2.7 g |
Other characteristics
| B4 | 36.1 mm |
| B7 | 5.4 mm |
| Bolt | 8.28 mm |
| Breaking strength approx | 70 |
| Inner width b2 | 25.45 mm |
| Roller d1 | 15.88 mm |
| Din isonr | 16 B-1 |
| Pitch p x inner width b1 | 25,4 x 17,02 |
Description
According to DIN ISO 606 (ex DIN 8187). Material: Special chain steels. Outer plates nickel-plated. Inner plates black oxided. Premium simplex roller chains, developed for low wear, even under dusty environment. Seamless bushes with lube grooves. Specially hard, low friction pins. Dynamically prestretched. Waisted link plates (size 06 with straight link plates). Chains are supplied with an uneven number of links, with inner links at both ends. Connecting links with ring coin plate for higher strength. Temperature range: -10°C to +60°C. Other temperatures are possible if special grease is used. Please note: Packing Unit 5m with 1 Connecting Link. 1 Unit = 1 Meter = 39.37 Inches
