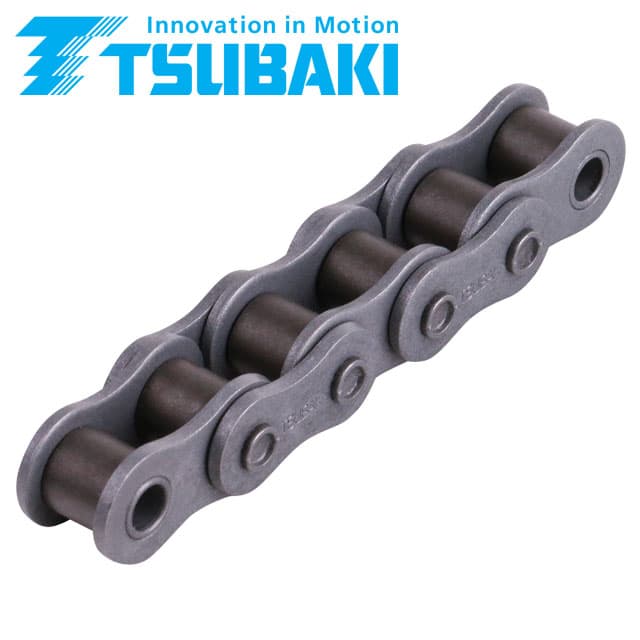

Anti corrosion roller chain Neptune 20 B-1
Manufacturer part no. 10966000N
$308.85≈ 268.22 €
On backorderlead time 14 d
Estimated landed cost
| Item | €268.22 |
|---|---|
| Shipping | €15.00 |
| VAT (20%) | €56.64 |
| Total delivered | €339.86 |
Estimate for a single item delivered to mainland France, shipped from outside the EU: customs duty and clearance fees may apply and are charged by the carrier.
Datasheets & documents
Specifications (automatically extracted)
Mechanical
| Weight | 3.85 g |
Other characteristics
| B4 | 43.2 mm |
| B7 | 6.1 mm |
| Bolt | 10.19 mm |
| Breaking strength approx | 98 |
| Inner width b2 | 29.01 mm |
| Roller d1 | 19.05 mm |
| Din isonr | 20 B-1 |
| Pitch p x inner width b1 | 31,75 x 19,56 |
Description
According to DIN ISO 606 (ex DIN 8187). Material: Special chain steel, with corrosion protection coating. Premium single-strand roller chains with good corrosion resistance, but still highly loadable. Plates, bushes, pins and rollers with high-resiliant coating against moisture and alkaline cleaning agents. Sizes 08 to 16 with centre sink riveting. Performance and dimensions according to DIN. Dynamically prestretched. Wasted link plates (size 06 with straight link plates). Chains are supplied with an uneven number of links, with inner links at both ends. Temperature range: -10°C to +60°C. Wider temperature range -10ºC to +230ºC on request. Please note: Packing Unit 5m with 1 Connecting Link. 1 Unit = 1 Meter = 39.37 Inches
