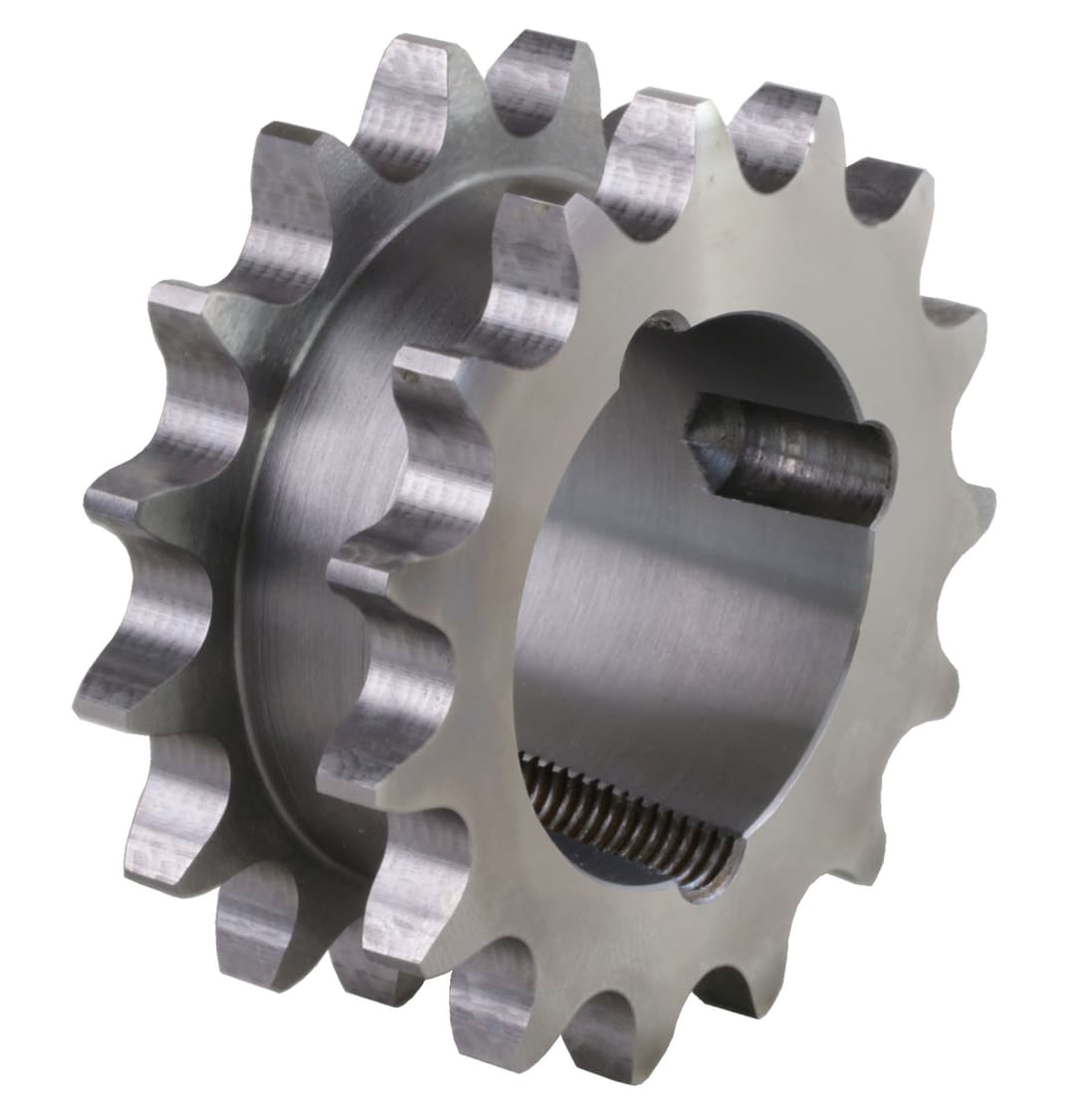

Name: Double sprocket ZRET for 2 single roller chains 10 B-1 19 teeth material steel for taper-bush 1610
Brand: MÄDLER
Price: 47.04 USD
Availability: InStock

Specifications (automatically extracted)

Mechanical

Weight

1.17 kg

Other characteristics

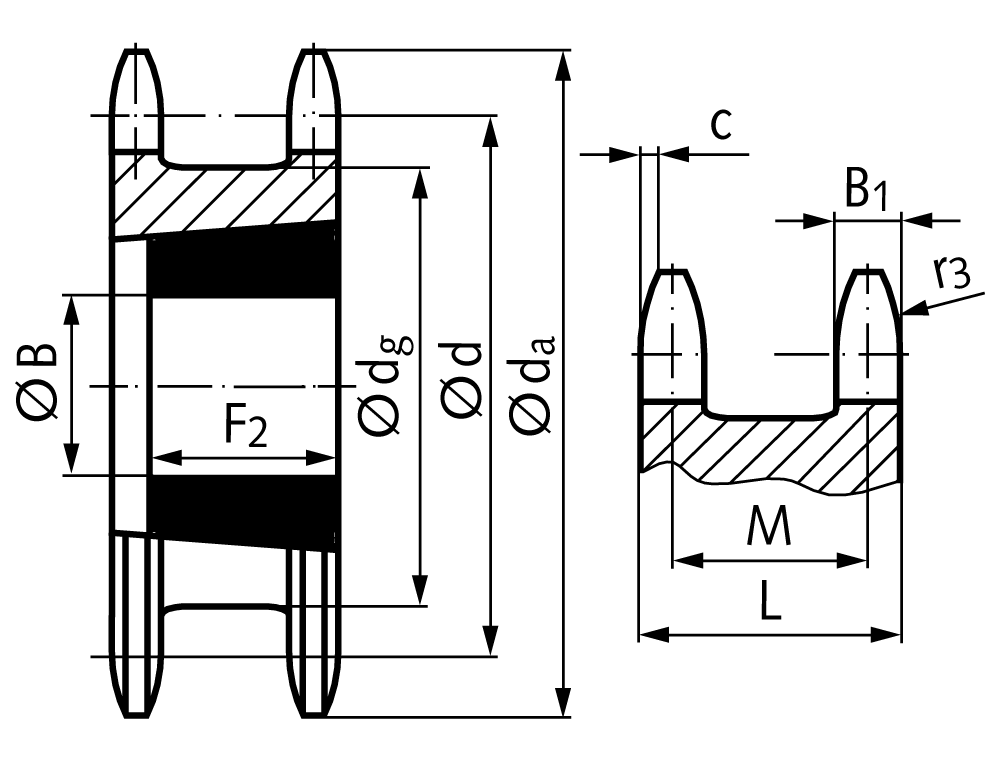

Bore	42 mm
Center distance of tooth strands	27.4 mm
Length of taper bushing	25.4 mm
No of teeth	19
Outer diameter	103.3 mm
Pitch circle diameter	96.45 mm
Taper bushing type	1 610
Total length	36.5 mm
Din iso no	10 B-1 (Taper)
Hardened	No
Hub	Without
Material	Steel (1045)
Number of strands	2×1
Surface

Description

Material: Steel C45, not hardened. Teeth milled. Double-Sprockets for transmitting the power from a driving chain to a parallel running driven chain, e.g. at roller conveyors. Version for taper bushes, for easy and fast mounting. The taper bush has to be ordered separately, see page 76. Material: Steel C45, not hardened. Teeth milled. Double-Sprockets for transmitting the power from a driving chain to a parallel running driven chain, e.g. at roller conveyors. Version for taper bushes, for easy and fast mounting. The taper bush has to be ordered separately. In this youtube video we show the mounting and demounting of taper bushes: Video clip (3.5 Minutes)
