MÄDLERMÄDLER· Sprockets, Chains, Accessories

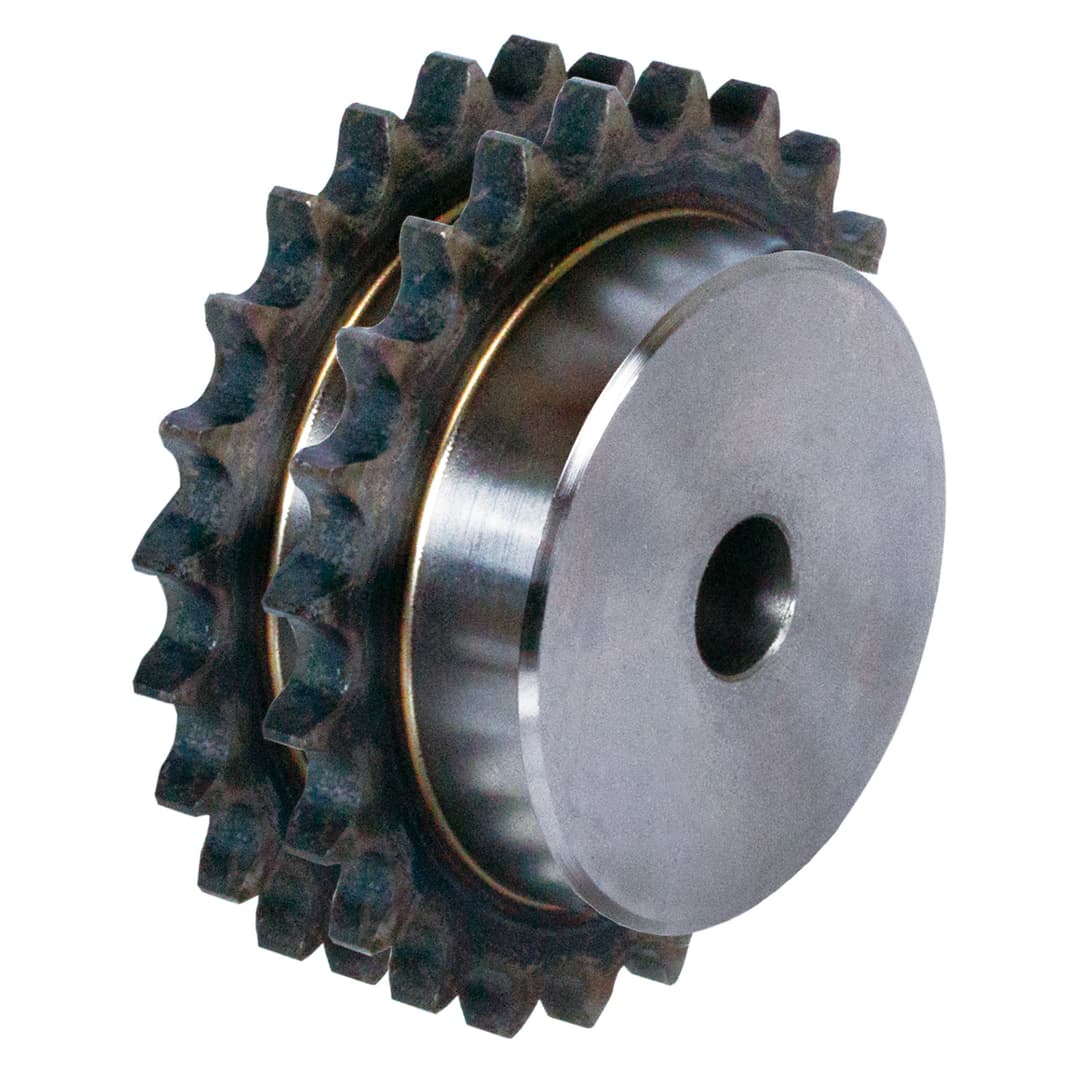

Double-strand sprocket ZRG with hub 10 B-2 5/8×3/8″ 12 teeth material steel teeth induction hardened
Manufacturer part no. 12688112
$17.25≈ 14.98 €
On backorderlead time 14 d
Estimated landed cost
| Item | €14.98 |
|---|---|
| Shipping | €15.00 |
| VAT (20%) | €6.00 |
| Total delivered | €35.98 |
Estimate for a single item delivered to mainland France, shipped from outside the EU: customs duty and clearance fees may apply and are charged by the carrier.
Datasheets & documents
Specifications (automatically extracted)
Mechanical
| Weight | 570 g |
Other characteristics
| Bore | 14 mm |
| Hub diameter | 44 mm |
| No of teeth | 12 |
| Number of strands | 2 |
| Outer diameter | 68 mm |
| Pitch circle diameter | 61.34 mm |
| Total length | 40 mm |
| Din iso no | 10 B-2 |
| Hardened | Yes |
| Hub | One sided |
| Material | Steel (1045) |
| Surface | Blank |
Description

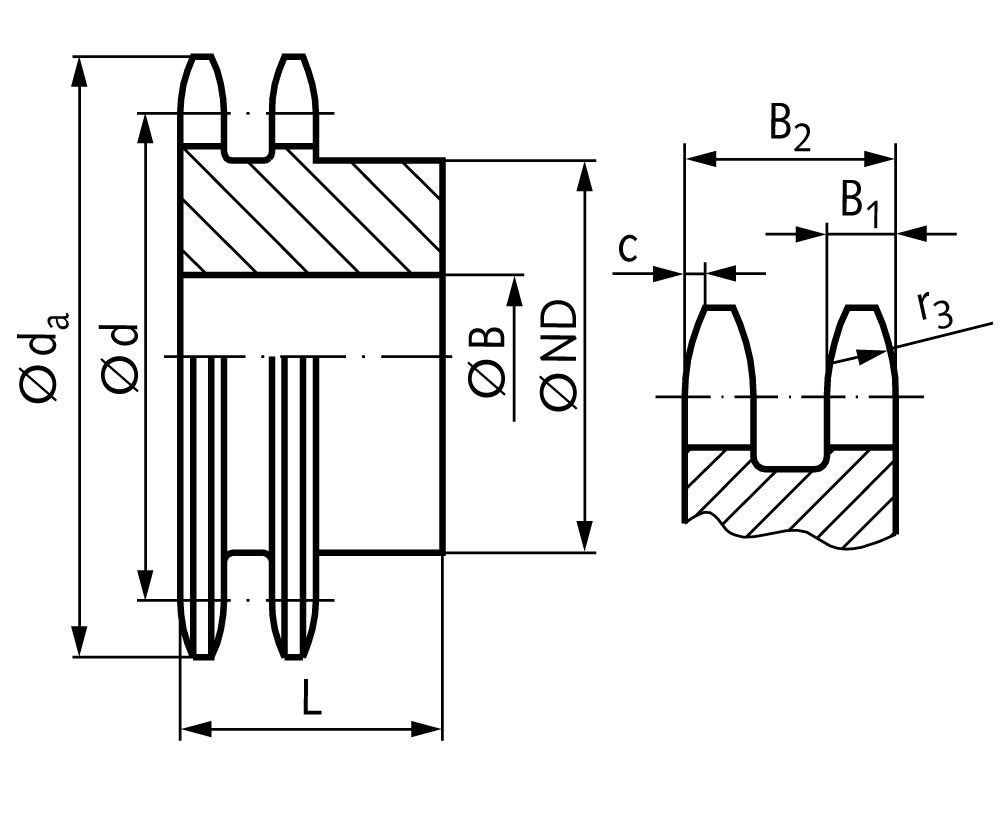

Material: Steel C45, teeth induction hardened (≈ HRC 50). Pre-bored. General dimensions: B1 = 9 mm, B2 = 25,5 mm, c = 1,6 mm, r3 = 16 mm. Other dimensions: See the table.
