MÄDLERMÄDLER· Sprockets, Chains, Accessories

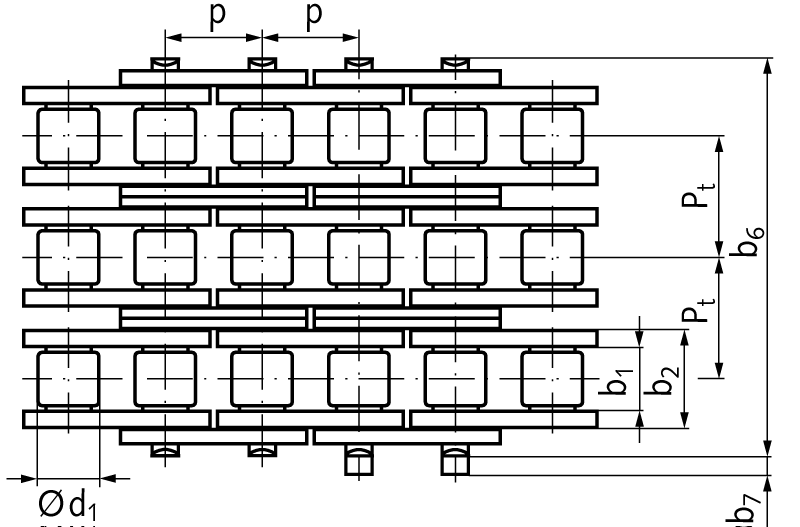

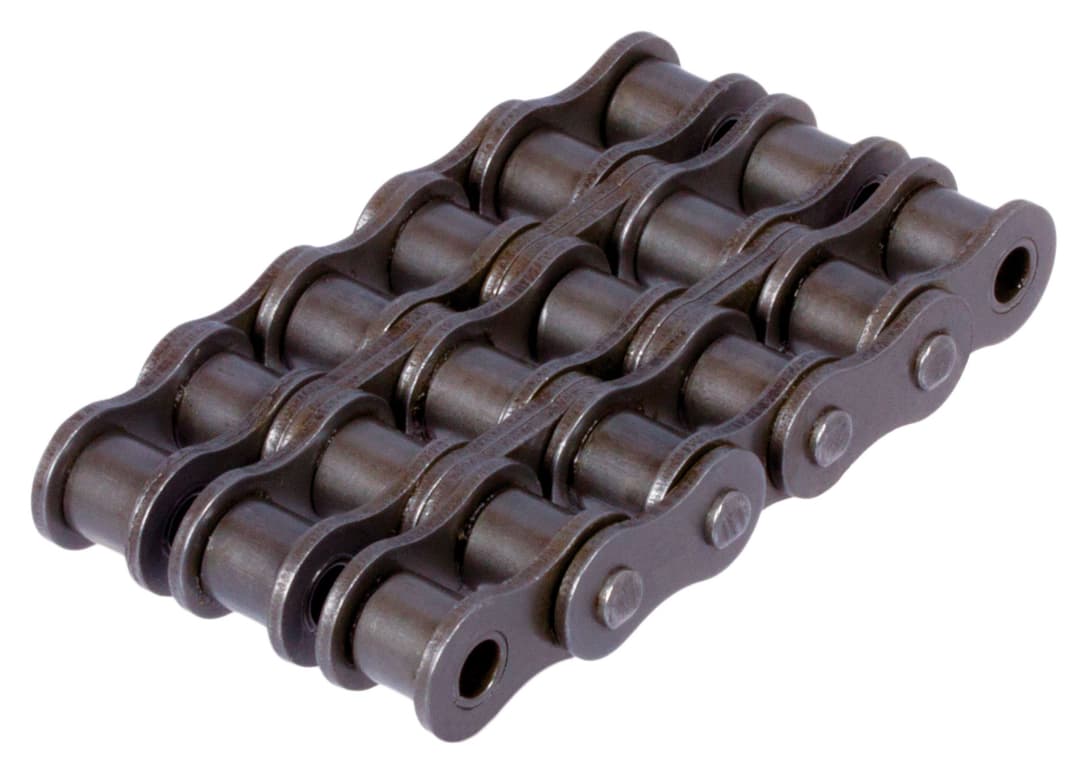

Triple-strand roller chain 08 B-3 pitch 1/2×5/16″
Manufacturer part no. 13500000
$48.25≈ 41.90 €
In stock — 12 unitslead time 14 d
Estimated landed cost
| Item | €41.90 |
|---|---|
| Shipping | €15.00 |
| VAT (20%) | €11.38 |
| Total delivered | €68.28 |
Estimate for a single item delivered to mainland France, shipped from outside the EU: customs duty and clearance fees may apply and are charged by the carrier.
Datasheets & documents
Specifications (automatically extracted)
Other characteristics
| Breaking load min. | 44 500 N |
| Inner width | 11.3 mm |
| Number of strands | 3 |
| Projection over link | 3.9 mm |
| Rollerdiameter | 8.51 mm |
| Total width over pin | 44.9 mm |
| Transverse pitch | 13.92 mm |
| Din iso no | 08 B-3 |
| Material | Steel |
| Pitch x inner width | 12.7 x 7.75 mm |
| Pitch x inner width inch | 1/2 x 5/16″ |
| Surface | Blank |
| Weight | 2.00 kg/m |
Description
Similar to DIN ISO 606 (ex DIN 8187). Material: special alloy steel. High quality single-strand roller chains, pre-stretched in accordance with DIN. Formed side plates (Size 06 with straight side plates). Chains with an odd number of links have inner links on both ends. Connecting links have to be ordered separately. Temperature range: -20° to 120°C. Other temparatures possible with special lubricants. 1 Unit = 1 Meter = 39.37 Inches
