MÄDLERMÄDLER· Sprockets, Chains, Accessories

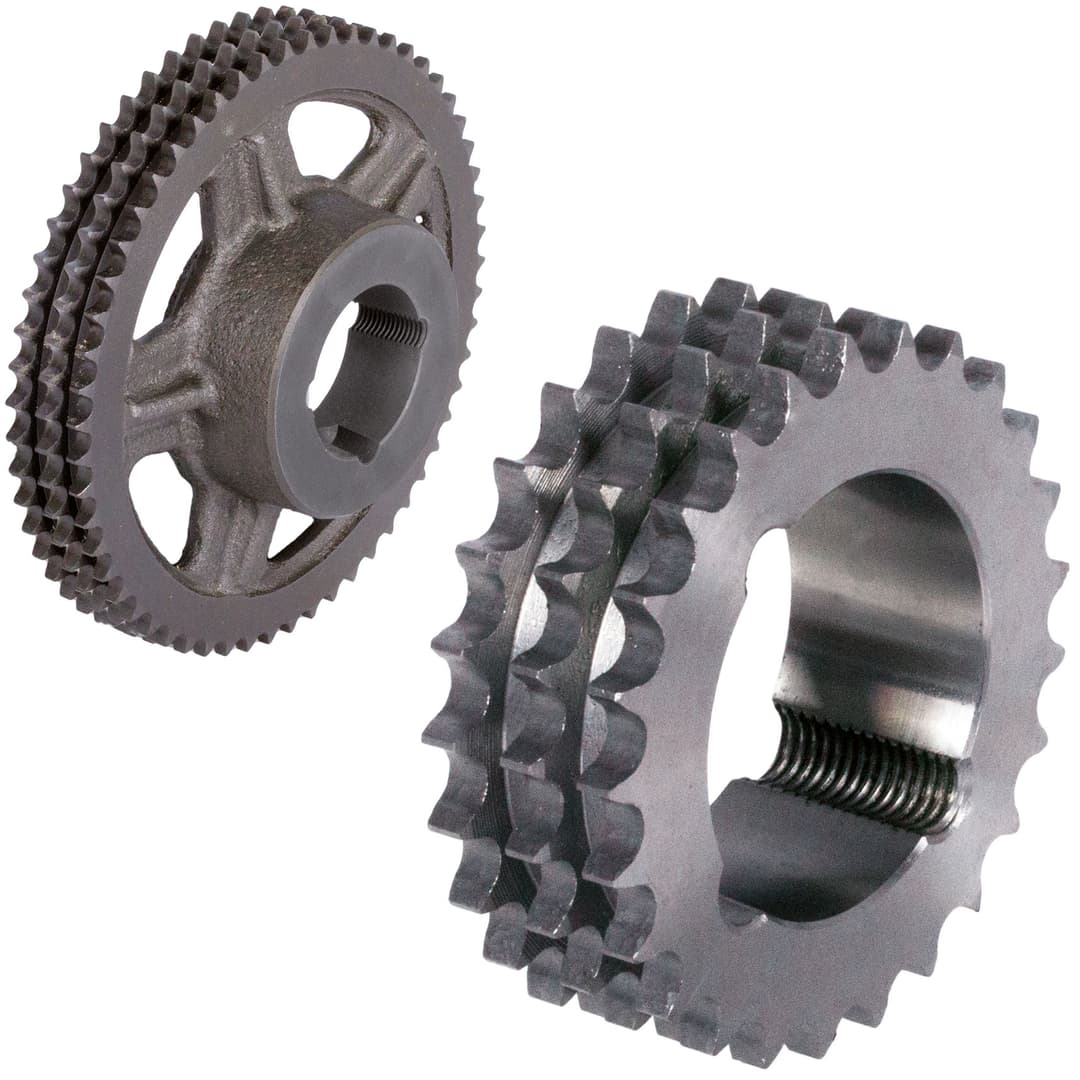

Triple-strand sprocket DRT 08 B-3 1/2×5/16″ 25 teeth material steel for taper bush type 2012
Manufacturer part no. 13577125
$60.62≈ 52.64 €
In stock — 3 unitslead time 14 d
Estimated landed cost
| Item | €52.64 |
|---|---|
| Shipping | €15.00 |
| VAT (20%) | €13.53 |
| Total delivered | €81.17 |
Estimate for a single item delivered to mainland France, shipped from outside the EU: customs duty and clearance fees may apply and are charged by the carrier.
Datasheets & documents
Specifications (automatically extracted)
Mechanical
| Weight | 850 g |
Other characteristics
| Hub diameter | 0 mm |
| Max bore diameter | 50 mm |
| Min bore diameter | 12 mm |
| No of teeth | 25 |
| Number of strands | 3 |
| Outer diameter | 105.8 mm |
| Pitch circle diameter | 101.33 mm |
| Taper bushing type | 2 012 |
| Total length | 34.9 mm |
| Din iso no | 08 B-3 (Taper) |
| Hardened | No |
| Hub | One sided |
| Material | Steel (1045) |
| Surface | Blank |
Description

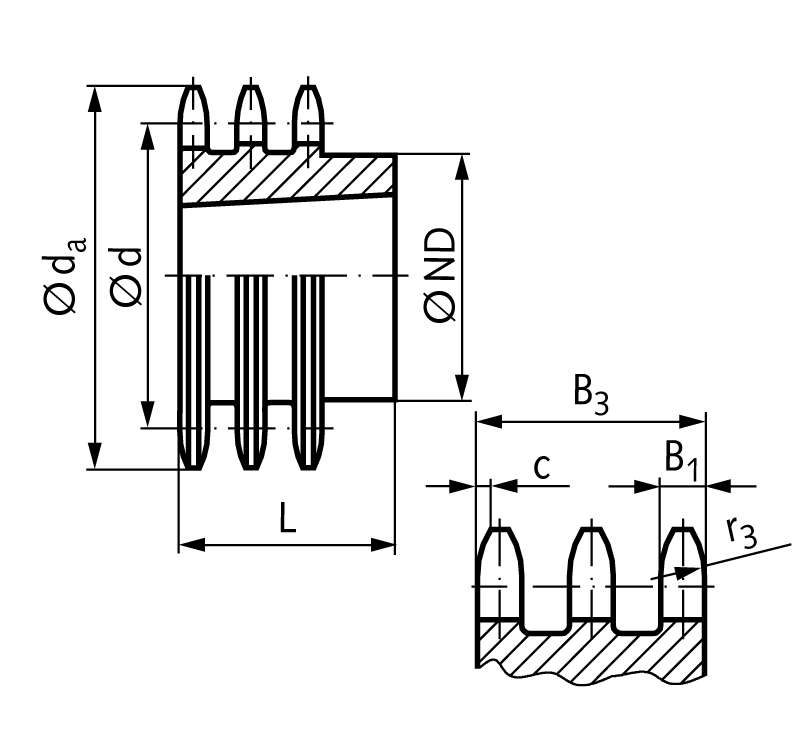

Material:: Steel C45, not hardened. General dimensions: B1 = 7,2 mm, B3 = 34,9 mm, c = 1,3 mm, r3 = 13 mm. Other dimensions: See the table. In this youtube video we show the mounting and demounting of taper bushes: Video clip (3.5 Minutes)
Similar products
MÄDLERIn stock

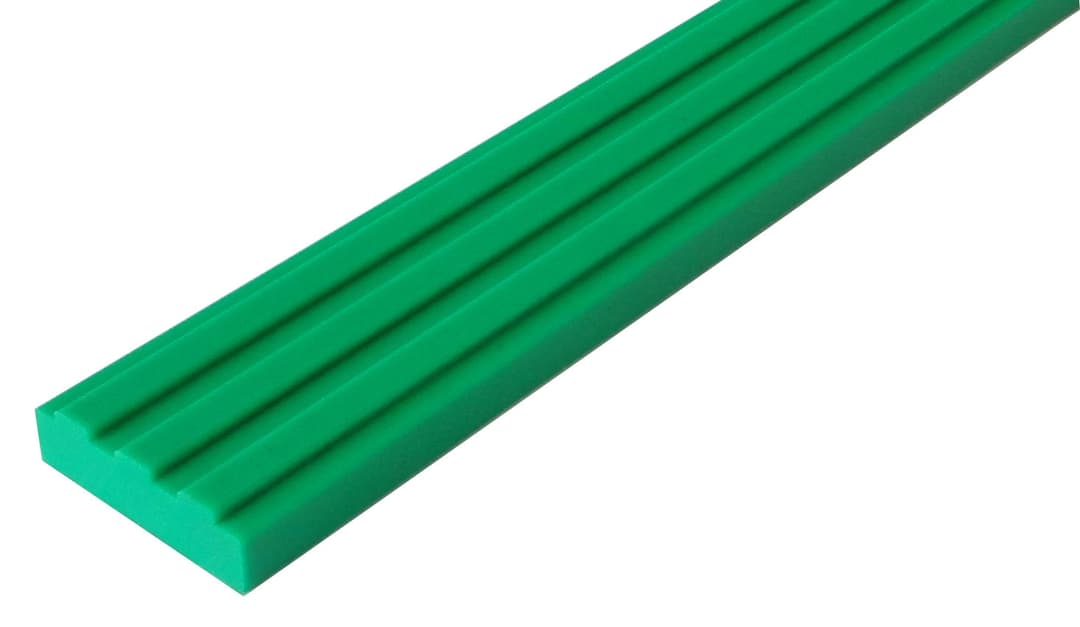

Plastic guide rail 60 x 20 x 2000mm for roller chain 12 B-3
