MÄDLERMÄDLER· Sprockets, Chains, Accessories

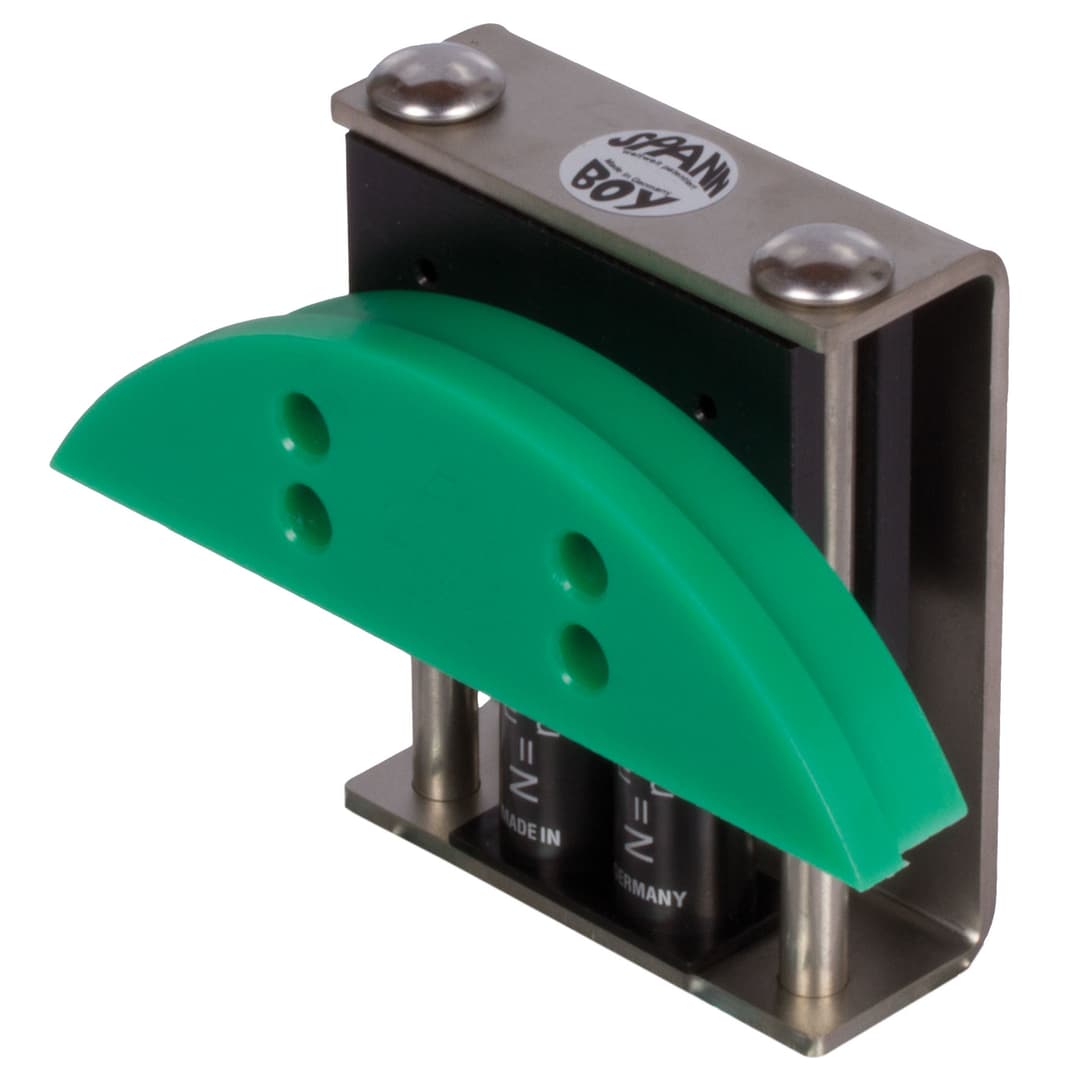

Chain tensioner SPANN-BOY® TS up to 06 B-1 stainless steel
Manufacturer part no. 14040901
$198.66≈ 172.52 €
On backorderlead time 14 d
Estimated landed cost
| Item | €172.52 |
|---|---|
| Shipping | €15.00 |
| VAT (20%) | €37.50 |
| Total delivered | €225.02 |
Estimate for a single item delivered to mainland France, shipped from outside the EU: customs duty and clearance fees may apply and are charged by the carrier.
Datasheets & documents
Specifications (automatically extracted)
Mechanical
| Weight | 460 g |
Other characteristics
| Distance to middle of chain sliding surface for | 10 mm |
| Number of strands | 1 |
| Total width of sliding element | 20 mm |
| Din iso no | Up to 06 B-1 |
| Material | Plastic (PE-UHMW) / Stainless steel |
| Pitch | 3/8 x 7/32″ |
| Surface | Blank |
| Tensioning force | 33-190 N |
Description
Material: Housing from stainless steel. Chain rider from ultra-high-molecular polyethylene PE-UHMW. These very low, ready-to-install tensioners enable noise reduction and wear reduction at chain drives. • Needed space below chain only 40mm. • With two springs of different force, which can get activated separately or together. So it is possible to adjust three different tensioning forces. • Usable travel about 40mm. • Interchangeable with similar parts of other suppliers. Temperature range: -20°C to +60°C (short time up to +80°C).
