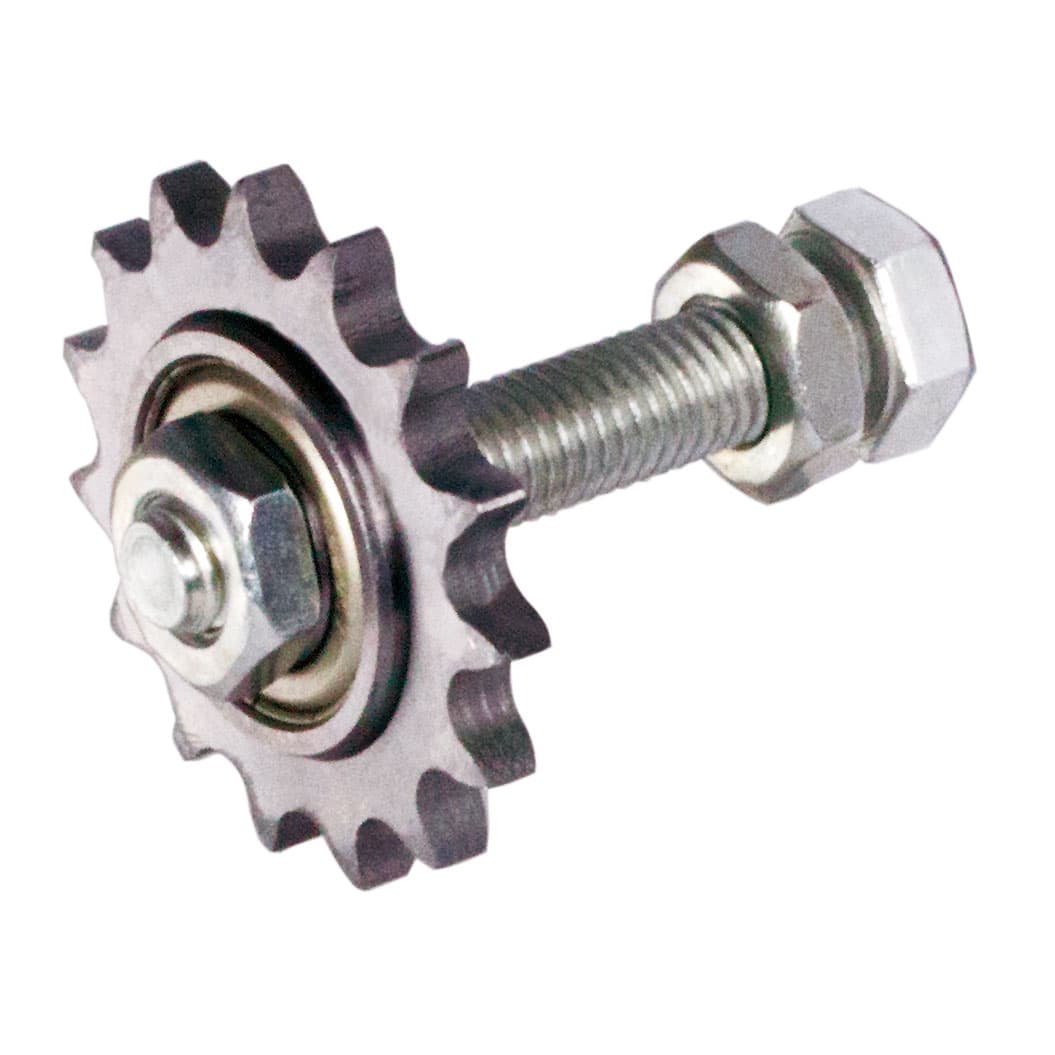

Sprocket set for chain tensioners 16 B-1 1″ x 17,02mm Z=13
Manufacturer part no. 14050801
$55.12≈ 47.87 €
In stock — 1 unitslead time 14 d
Estimated landed cost
| Item | €47.87 |
|---|---|
| Shipping | €15.00 |
| VAT (20%) | €12.57 |
| Total delivered | €75.44 |
Estimate for a single item delivered to mainland France, shipped from outside the EU: customs duty and clearance fees may apply and are charged by the carrier.
Datasheets & documents
Specifications (automatically extracted)
Mechanical
| Weight | 950 g |
Other characteristics
| No of teeth | 13 |
| Number of strands | 1 |
| Optional for tensioner | 4 |
| Pitch circle diameter | 106.14 mm |
| Thread length | 100 mm |
| Din iso no | 16 B-1 |
| Material | Steel |
| Pitch | 1″ x 17,02 mm |
| Surface | Blank |
| Thread size of axis of tensioning element | M 20 mm |
Description
Material: Sprocket from steel St40/St50. Bearing from roller bearing steel. Screw and nuts from steel, zinc-plated. The sprocket can be moved on the screw and thus be aligned with the chain. It is locked in the desired position by the nuts. The permanently lubricated 2Z bearing enables a light running. Temperature range: -20° to +120°C. * Please note the size of the hole.
