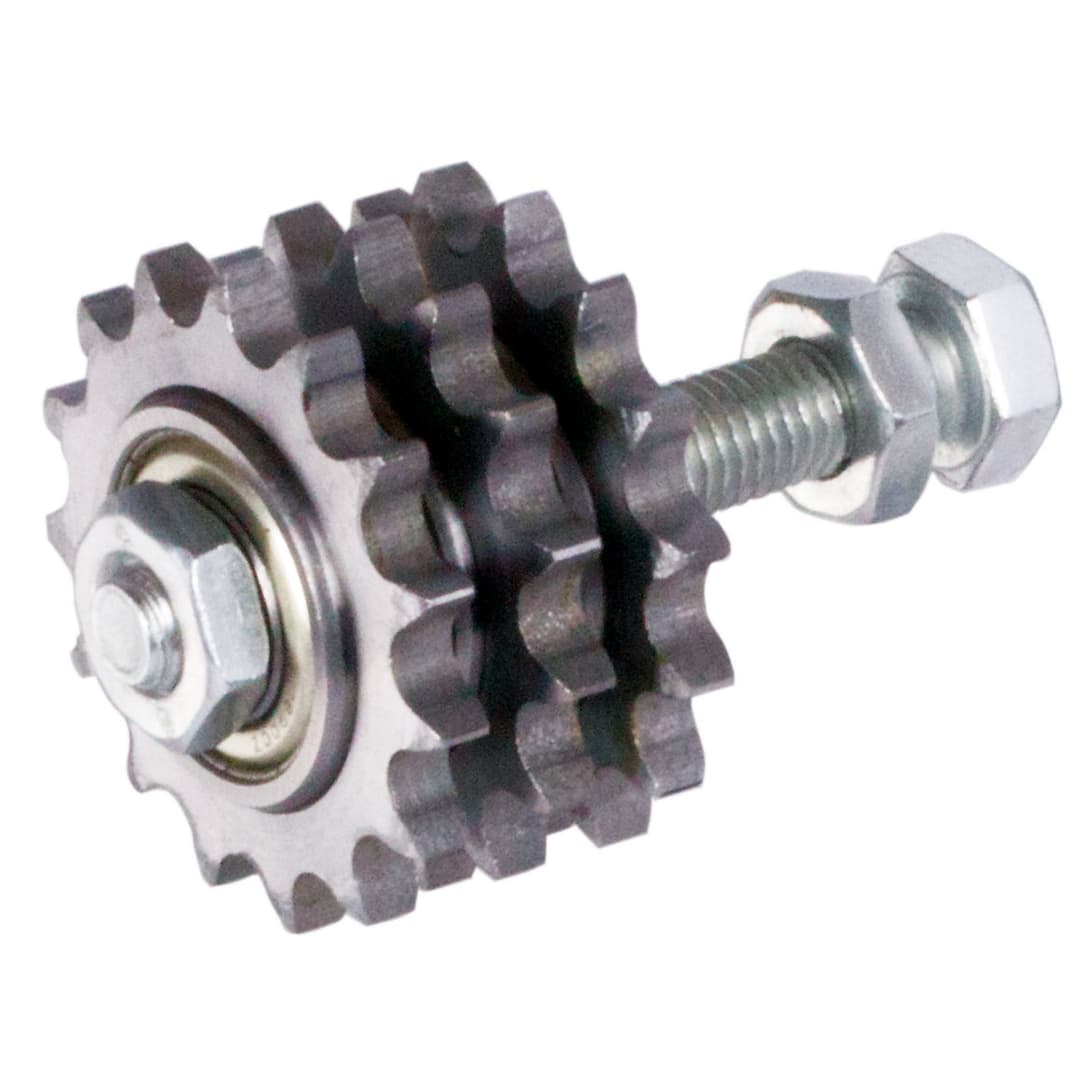

Sprocket set for chain tensioners, triple 06 B-3 3/8″ x 7/32″ Z=15
Manufacturer part no. 14053101
$116.06≈ 100.79 €
In stock — 1 unitslead time 14 d
Estimated landed cost
| Item | €100.79 |
|---|---|
| Shipping | €15.00 |
| VAT (20%) | €23.16 |
| Total delivered | €138.95 |
Estimate for a single item delivered to mainland France, shipped from outside the EU: customs duty and clearance fees may apply and are charged by the carrier.
Datasheets & documents
Specifications (automatically extracted)
Mechanical
| Weight | 250 g |
Other characteristics
| No of teeth | 15 |
| Number of strands | 3 |
| Optional for tensioner | 2 |
| Pitch circle diameter | 45.81 mm |
| Thread length | 70 mm |
| Din iso no | 06 B-3 |
| Material | Steel |
| Pitch | 3/8 x 7/32″ |
| Surface | Blank |
| Thread size of axis of tensioning element | M 10 mm |
Description

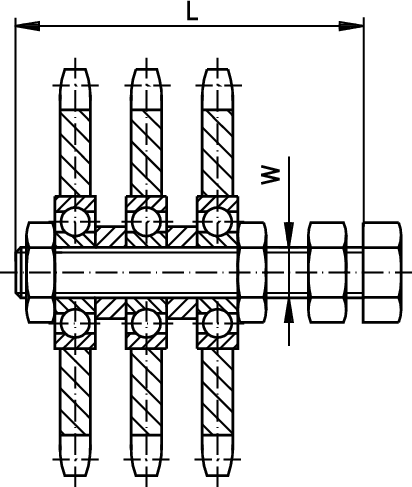

Material: Sprockets from steel St40/St50. Bearings from roller bearing steel. Screw and nuts from steel, zinc-plated. The sprockets can be moved on the screw and thus be aligned with the chain. They are locked in the desired position by the nuts. The permanently lubricated 2Z bearings enable a light running. Accurate-to-size spacers guarantee perfect meshing of teeth and sprocket. Temerature range: -20° to +120°C.
