Chain rider set 10 B-1 5/8×3/8″
Manufacturer part no. 14085600
$34.41≈ 29.88 €
In stock — 1 unitslead time 14 d
Estimated landed cost
| Item | €29.88 |
|---|---|
| Shipping | €15.00 |
| VAT (20%) | €8.98 |
| Total delivered | €53.86 |
Estimate for a single item delivered to mainland France, shipped from outside the EU: customs duty and clearance fees may apply and are charged by the carrier.
Datasheets & documents
Specifications (automatically extracted)
Mechanical
| Weight | 120 g |
Other characteristics

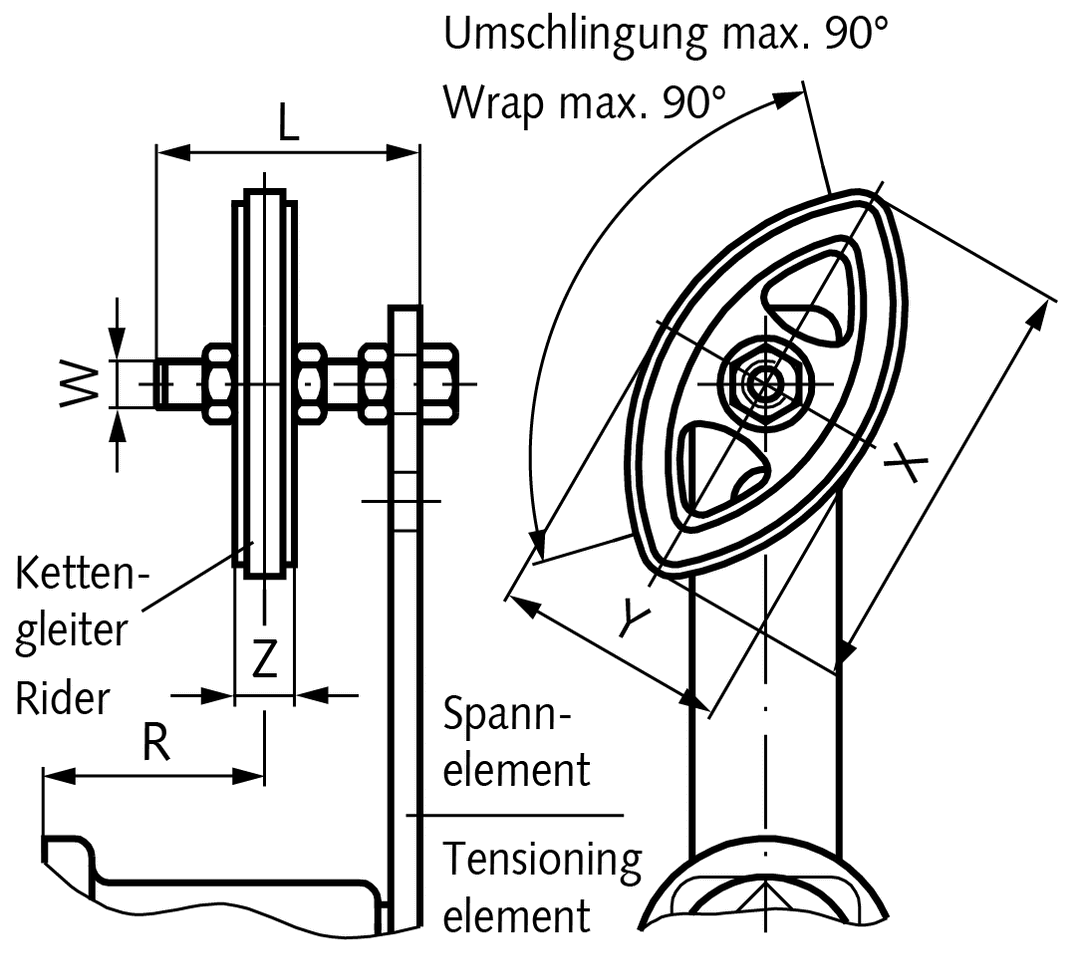

| Length of tensioning element | 126 mm |
| Max center distance between tensioning element a | 55 mm |
| Min center distance between tensioning element a | 40 mm |
| Size | 2 |
| Thickness of tensioning element | 16.6 mm |
| Thread length | 55 mm |
| Width of tensioning element | 65 mm |
| Material | Plastic (POM) |
| Suitable for din iso | 10 B-1 |
| Surface | Blank |
| Thread size of axis of tensioning element | M 10 mm |
Description

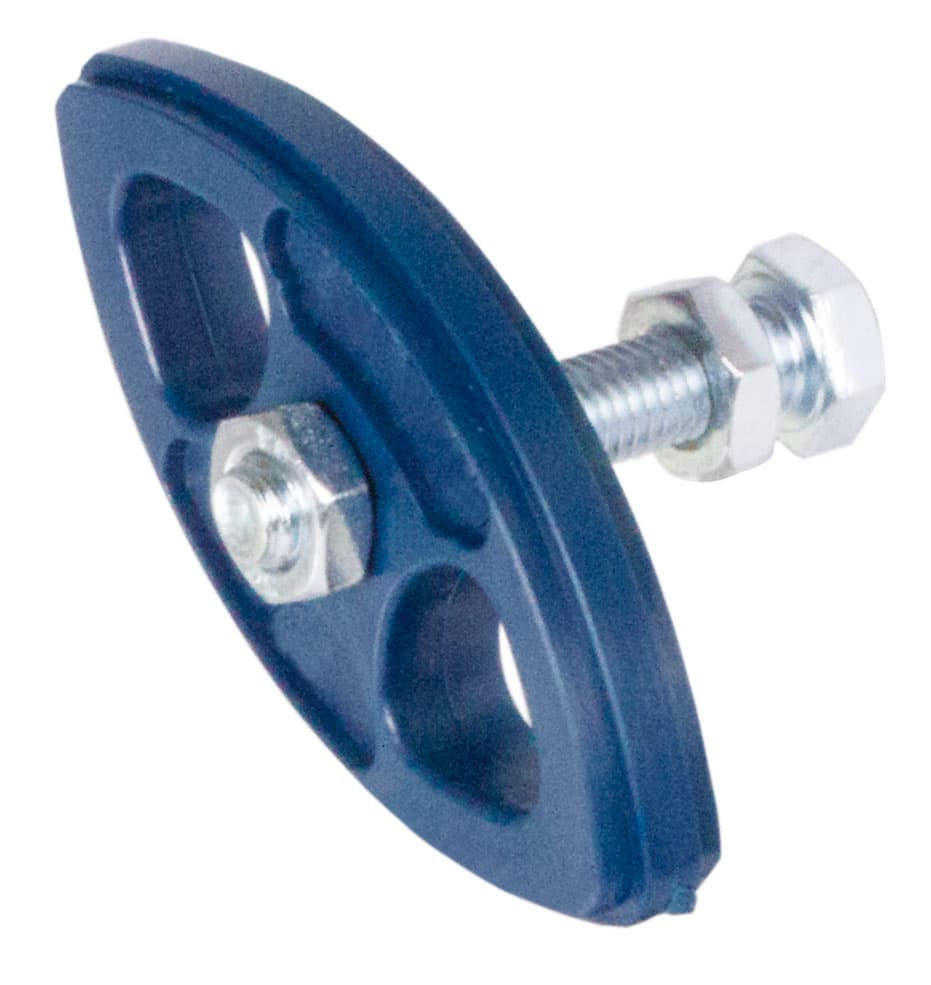

Material: POM-H. Screw nickel-plated steel. The chain rider set is mounted on the suitable tensioning element to create a ready-to-mount, cost-efficient chain tensioner. The shape of the rider, made of high-grade, friction resistant, industrial plastic, means the rider can be used on both rider sides and the large radius guarantees quiet operation. The maximum chain speed must not exceed 1,5 m/sec. Temperature range: -40° to +100°C. Tensioning Element has to be ordered seperately.
