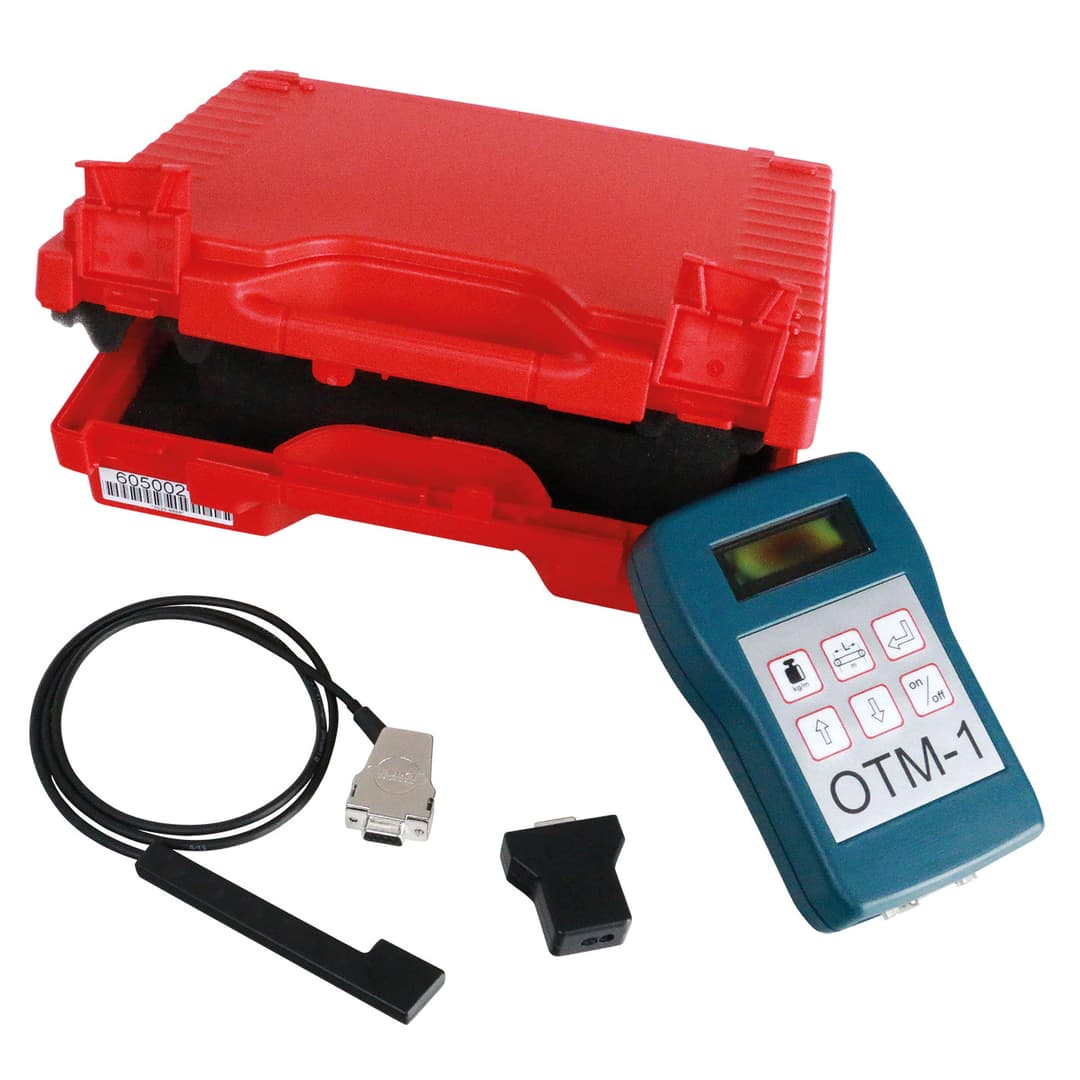

Optical Tension Measuring instrument OTM-1, including 2 measuring probes, PC software for calculation of the normal belt frequency and a strong plastic case
Manufacturer part no. 14088800
$1937.39≈ 1682.49 €
On backorderlead time 14 d
Estimated landed cost
| Item | €1682.49 |
|---|---|
| Shipping | €15.00 |
| VAT (20%) | €339.50 |
| Total delivered | €2036.99 |
Estimate for a single item delivered to mainland France, shipped from outside the EU: customs duty and clearance fees may apply and are charged by the carrier.
Datasheets & documents
Specifications (automatically extracted)
Mechanical
| Weight | 672 g |
Other characteristics
| Dimension of case | 230 x 200 x 70 mm |
| Dimension of unit | 80 x 37 x 162 mm |
| Measuring range | 10 – 800 Hz Hz |
| Power supply | 9 V Battery |
Description
OTM-1 is a precise instrument for contactless measuring of the belt tension in power transmission drives, like toothed belts or V-belts. The use of OTM-1 enables an optimal function and maximum lifetime of belt drives. The measuring results are reliable, recordable and documentable dates, for calculation-based check of the strand force and bearing load of the belt drive application. The OTM-1 is specially useful for mounting and maintenance. It is also a helpful equipment in the quality assurance and at the final inspection of belt drives. Product Description: For power transmission belts which can swing freely; not able for transportation belts lying on a slide rail. Non-contact, optical measuring with pulsed light. Measuring at non-running machine, tapping the belt to swing. Exactly measuring of belt frequency and strand force. Exactly calculation of the set points. Needed for protocolling according to DIN EN ISO 9001ff. User guidance and displaying the measuring results in 10 languages: English, German, French, Spain, Portugese, Swedish, Norwegian, Finnish, Danish. Displaying the measuring results on choice as natural belt frequency in Hz or as strand force in Newton or Pound. Easy and save operation. Compact and handy device. Device testing / re-calibrating can be done by the customer with a 250 Hz tuning fork. Versatile use for different materials: All mechanical pre-tensioned parts can be measured, which are able to swing freely, for example belts, robes, wires, films, cables, tapes, and sheets. Scope of Delivery: Measuring instrument. Plug-in probe for one-hand operation. Measuring probe with cable for limited access space. 9 V battery (9 V accumulator and charger on request). Document with the download link for a PC calculation software in Englisch and German, to calculate the frequency set point. Test certificate. Transport case from shock-resistant, durable ABS.
