MÄDLERMÄDLER· V-Belts, Pulleys, Accessories

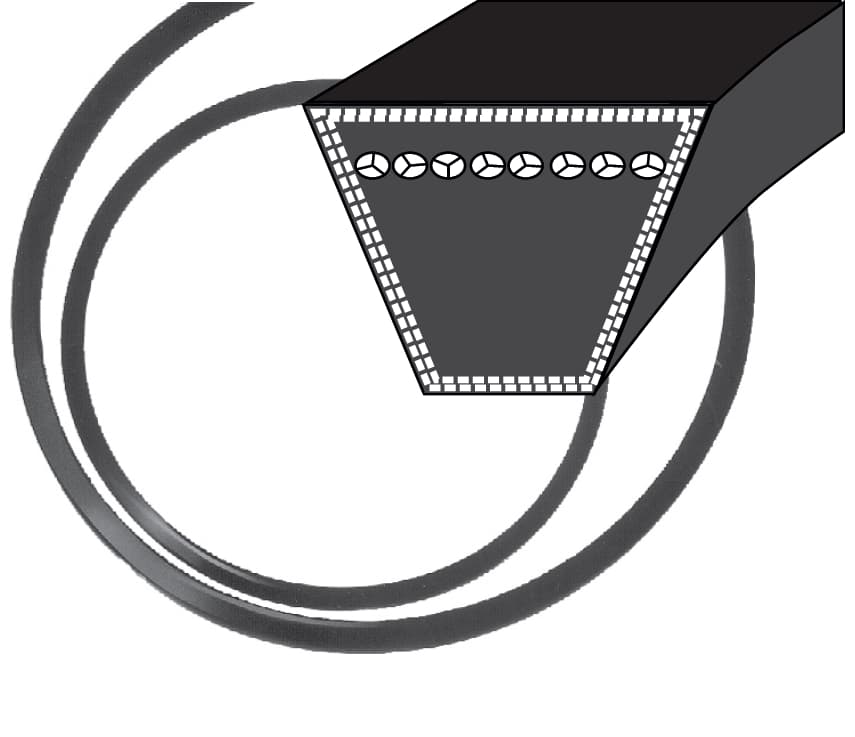

V-belt profile Z (10) LR 997mm inner length 975mm
Manufacturer part no. 15063200
$15.98≈ 13.88 €
In stock — 1 unitslead time 14 d
Estimated landed cost
| Item | €13.88 |
|---|---|
| Shipping | €15.00 |
| VAT (20%) | €5.78 |
| Total delivered | €34.66 |
Estimate for a single item delivered to mainland France, shipped from outside the EU: customs duty and clearance fees may apply and are charged by the carrier.
Datasheets & documents
Specifications (automatically extracted)
Other characteristics
| Reference length | 997 mm |
| Material | Neoprene (up to 60°C) |
| Number of grooves | Universal |
| Profile | Z (10) |
| Surface | Blank |
Description

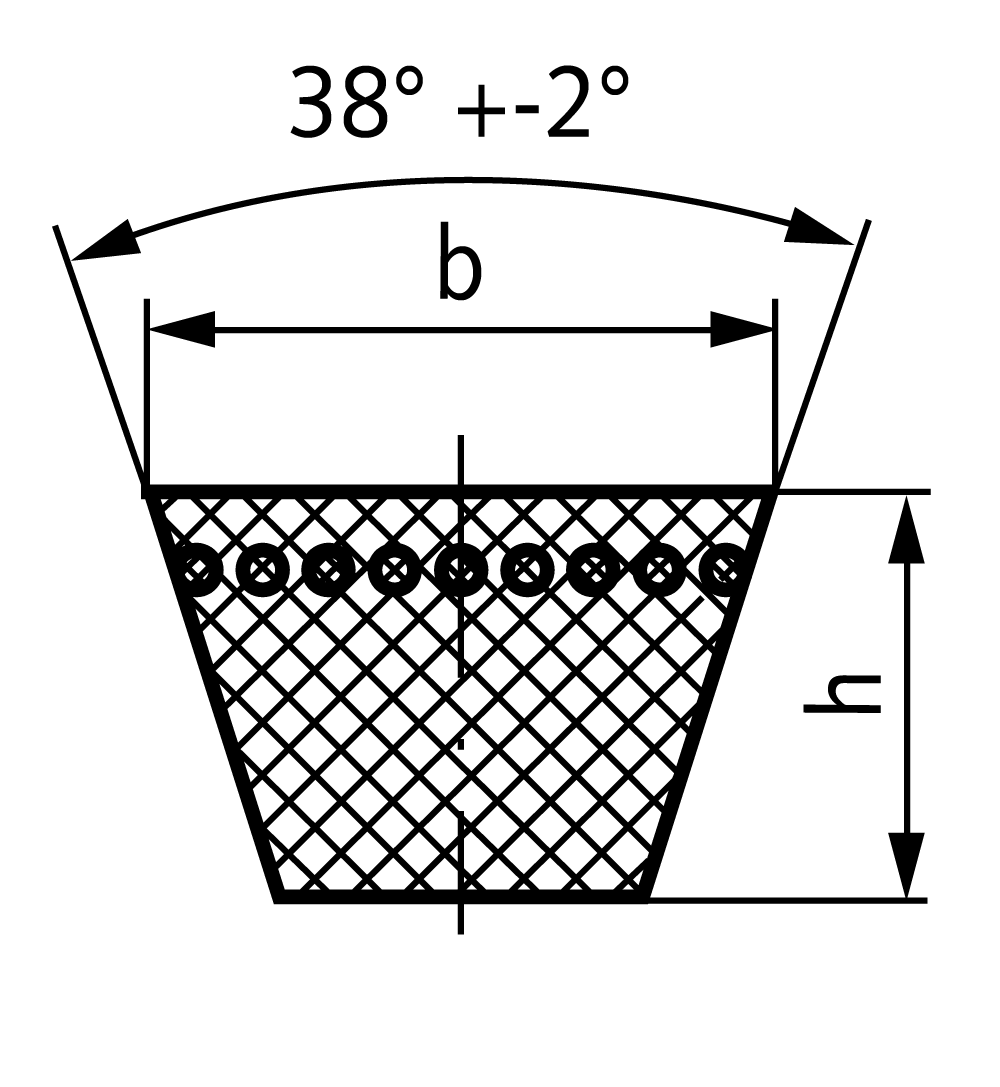

Material: Neopren with glass-fibre tensile member. Wedge angle approx. 38°. Width b = 10 mm. Height h = 6 mm. Width u = 5.9 mm. Smallest medium pulley diametre = 50 mm. Weight per Metre 0,064 kg. Inside Length = Reference Length – 22 mm. Outside Length = Inside Length + 35 mm. Important: During mounting the belt must be pre-tensioned. After running in for 15 – 20 minutes the belt needs to be retightened. At a continuous temperature of over 60° standard V-belts have only a short service life. Oil, Fats and chemicals should be kept away from the drive as they destroy the standard V-belts. Intermediate length are available on request.
