MÄDLERMÄDLER· V-Belts, Pulleys, Accessories

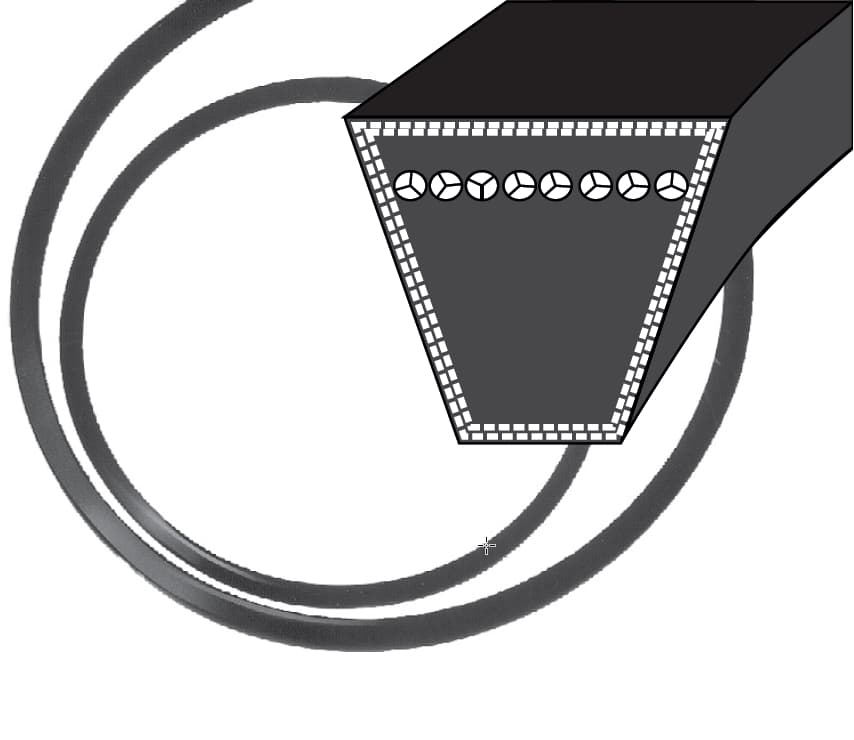

V-belt profile SPZ LR 850mm
Manufacturer part no. 15083000
$12.54≈ 10.89 €
In stock — 1 unitslead time 14 d
Estimated landed cost
| Item | €10.89 |
|---|---|
| Shipping | €15.00 |
| VAT (20%) | €5.18 |
| Total delivered | €31.07 |
Estimate for a single item delivered to mainland France, shipped from outside the EU: customs duty and clearance fees may apply and are charged by the carrier.
Datasheets & documents
Specifications (automatically extracted)
Other characteristics
| Reference length | 850 mm |
| Material | Neoprene (up to 60°C) |
| Number of grooves | Universal |
| Profile | SPZ |
| Surface | Blank |
Description

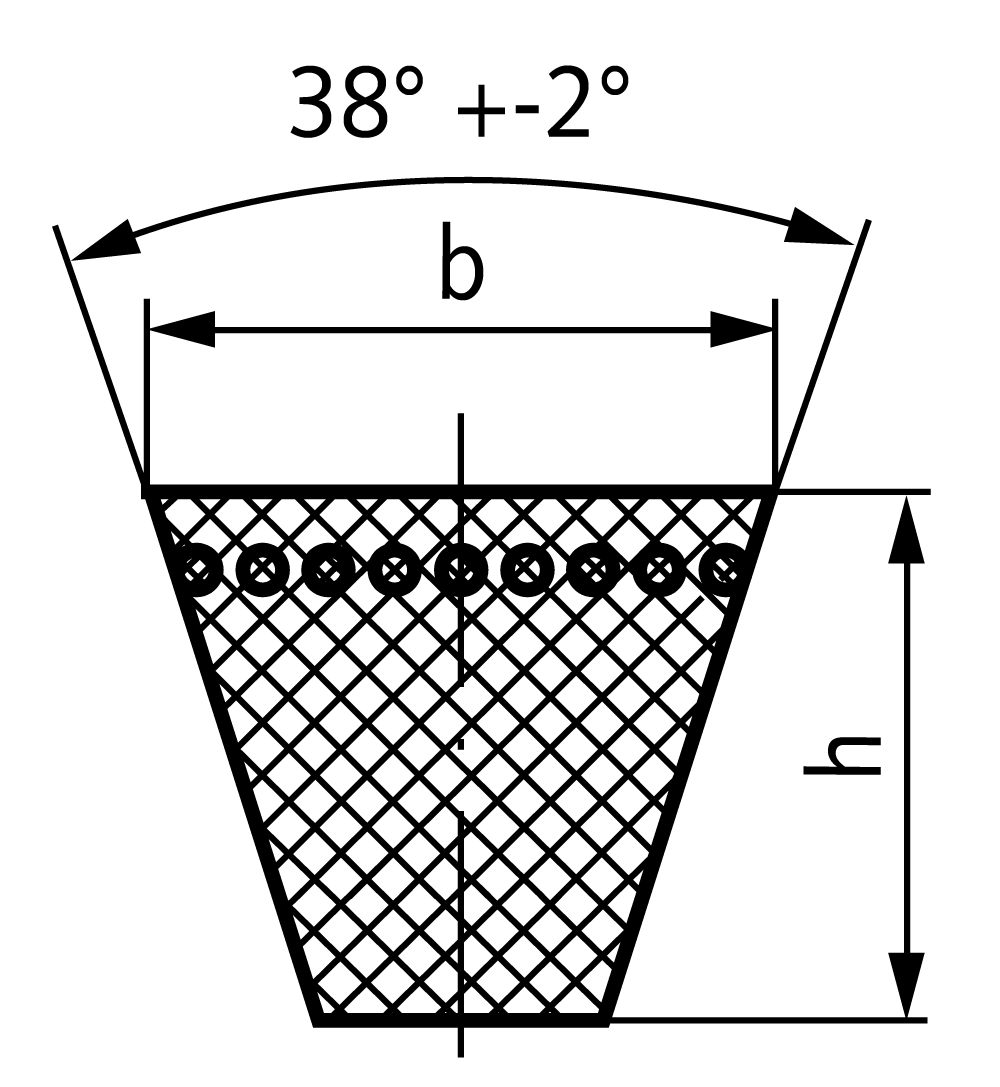

Material: Neopren with glass-fibre tensile member. Width b = 9.7 mm. Height h = 8 mm. Width u = 4.2 mm. Smallest medium pulley diametre = 63 mm. Weight per Metre 0.074 kg. Conversion Outside (LA) and Reference Length (LR): LA = LR + 18 mm Important: During mounting the belt must be pre-tensioned. After running in for 15 – 20 minutes the belt needs to be retightened. At a continuous temperature of over 60° standard V-belts have only a short service life. Oil, Fats and chemicals should be kept away from the drive as they destroy the standard V-belts. Intermediate length are available on request.
Similar products
MÄDLERIn stock

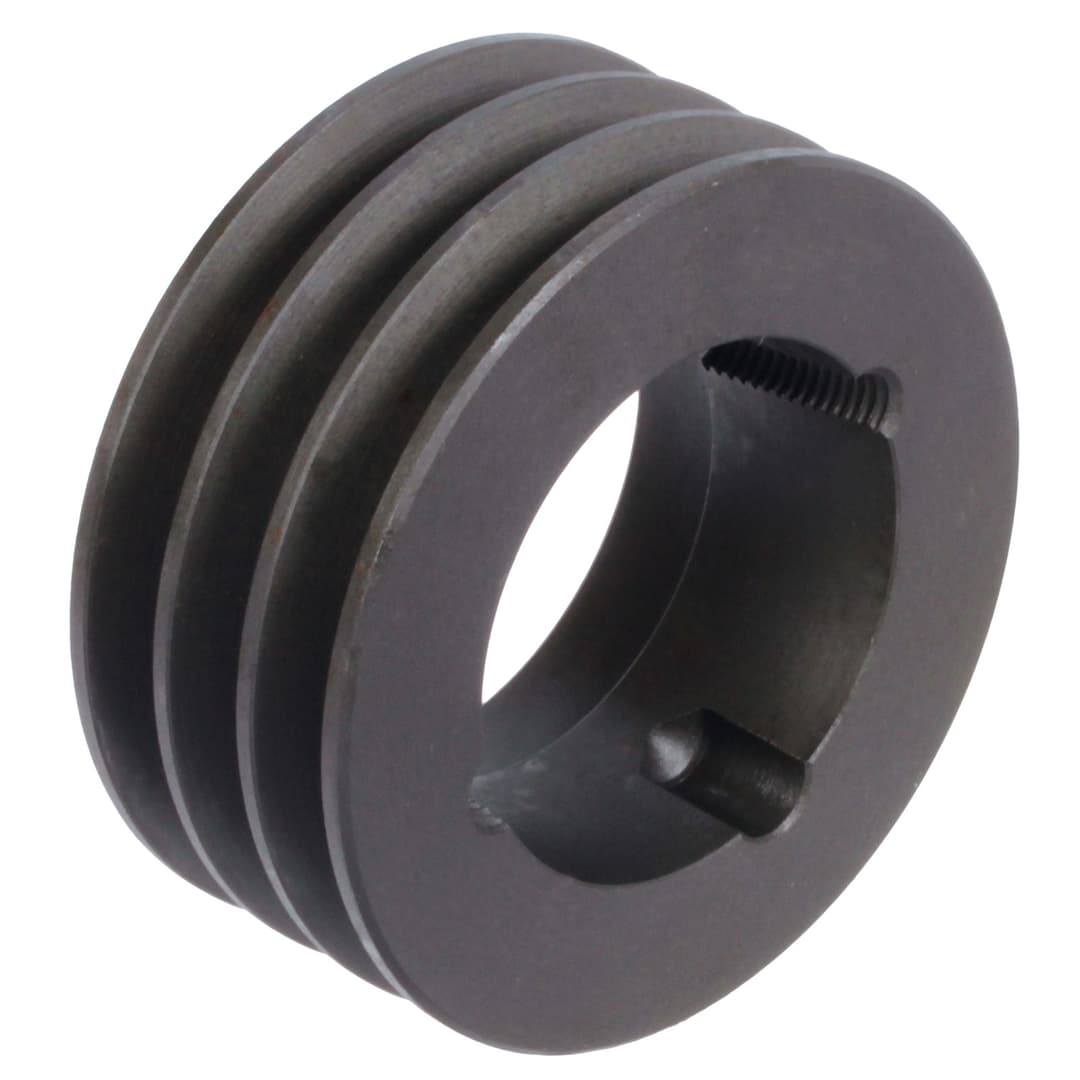

V-belt pulley material cast iron for taper-bush 3020 profile XPB, SPB and B (17) 3 grooves nominal diameter 315mm
