MÄDLERMÄDLER· Timing Belts and Pulleys

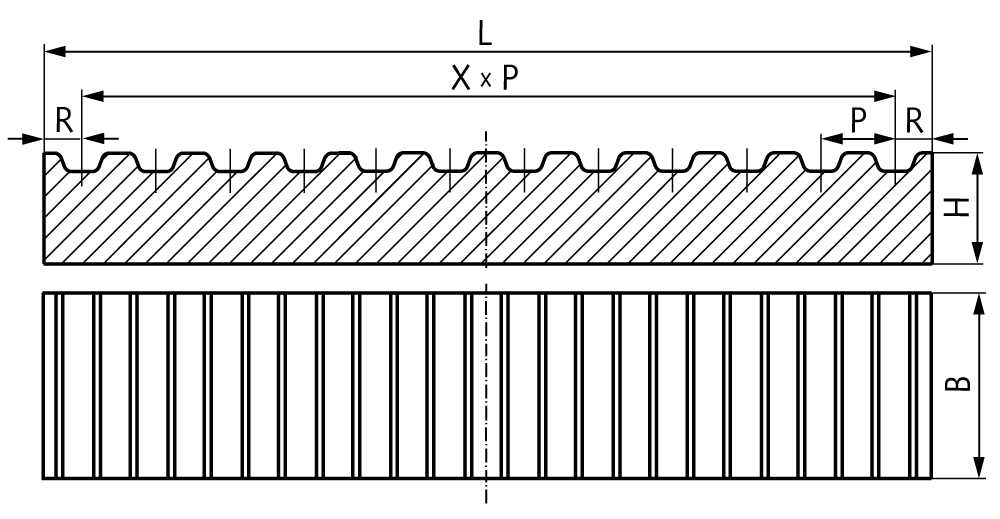

Clamping plate workpiece without bores material aluminium for timing belt T2,5 plate dimension: length 178mm x width 25mm
Manufacturer part no. 16079900L
$44.86≈ 38.96 €
On backorderlead time 14 d
Estimated landed cost
| Item | €38.96 |
|---|---|
| Shipping | €15.00 |
| VAT (20%) | €10.79 |
| Total delivered | €64.75 |
Estimate for a single item delivered to mainland France, shipped from outside the EU: customs duty and clearance fees may apply and are charged by the carrier.
Datasheets & documents
Specifications (automatically extracted)
Mechanical
| Weight | 60 g |
Other characteristics
| Height | 5 mm |
| Length | 178 mm |
| Number of complete teeth | 70 mm |
| Pitch | 2.5 mm |
| Width | 25 mm |
| Material | Aluminum |
| Profile | T2.5 |
| Surface | Blank |
Description
Material: Aluminium similar EN AW2017A. The fixing plates are used to connect the belt ends. Only for reversible use between the pulleys. The plates must not run on the pulleys. See mounting examples on the pdfcatalogue page. Usage: These clamping plate work pieces are used if the standardclamping plates cannot be used for dimensional reason. The clampingplate work pieces have max. production length and optimized width to bemost flexible for customer rework. We would appreciate to quote suchrework on request with shortest delivery time. Reworking: The belt should be engaged with minimum 6 teeth.Maintain the dimension R. The mounting holes must be placed beside thebelt, the belt must not be bored. * Number of complete teeth in the range X x P.
