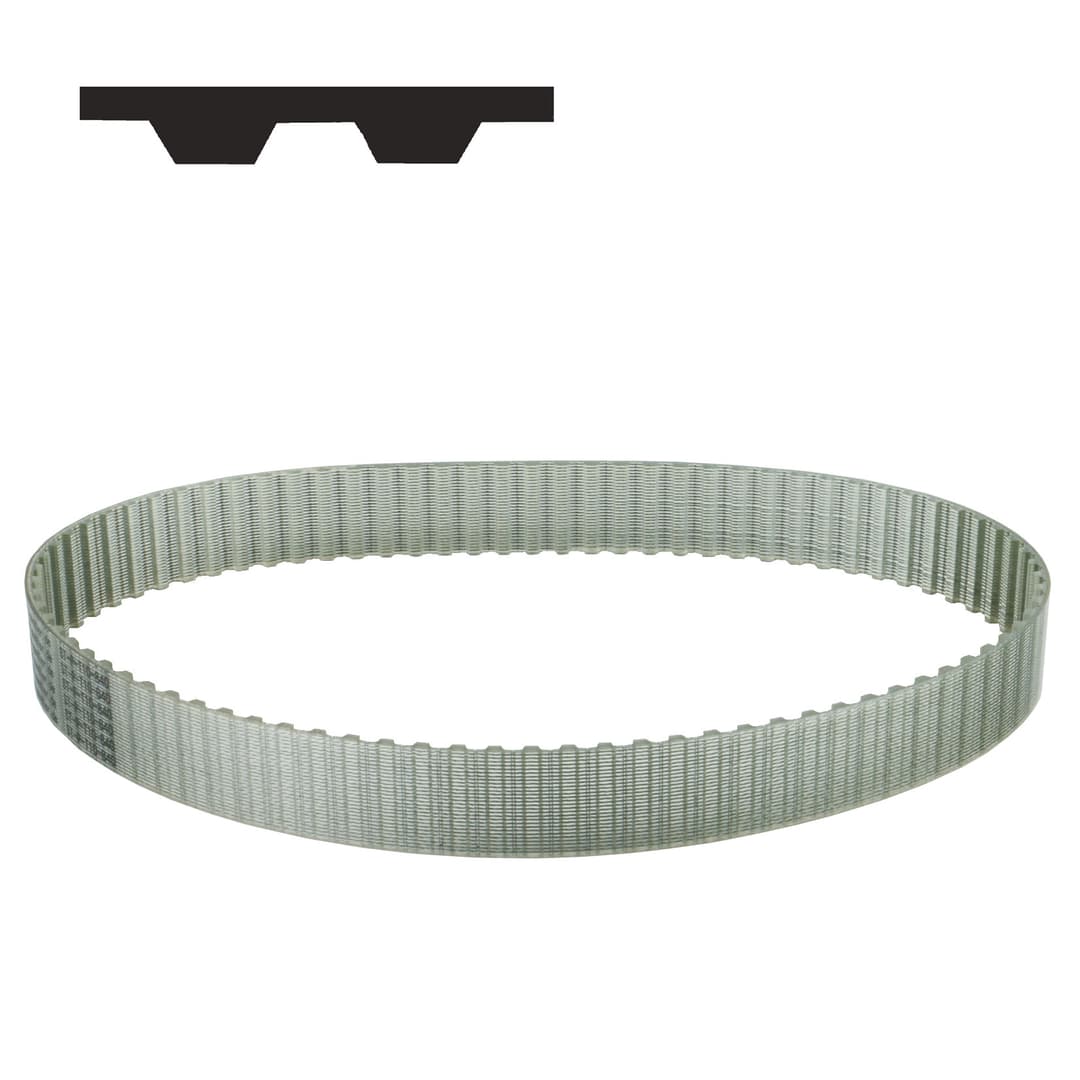

Polyurethane timing belt T5 width 16mm Lw 575mm 115 teeth 16 T5/575
Manufacturer part no. 16274000
$21.18≈ 18.39 €
In stock — 1 unitslead time 14 d
Estimated landed cost
| Item | €18.39 |
|---|---|
| Shipping | €15.00 |
| VAT (20%) | €6.68 |
| Total delivered | €40.07 |
Estimate for a single item delivered to mainland France, shipped from outside the EU: customs duty and clearance fees may apply and are charged by the carrier.
Datasheets & documents
Specifications (automatically extracted)
Other characteristics
| Belt width | 16 mm |
| Effective length | 575 mm |
| No of teeth | 115 |
| Material | Polyurethane (PU) with steel cord |
| Profile | T5 |
| Surface | Blank |
| Weight | 0.04 kg/m |
Description
Material: Cast polyurethane (PU) with steel tensile member. Timing belts in metric dimensions. Classical shape with trapezoid teeth. Good resistance against oil, fats and many chemicals. Temperature range -30º to +80ºC. T timing belts only run on T pulleys. Special length: Open-length timing belts made of thermoplastic TPU can be welded to endless belts at customized lengths.
