MÄDLERMÄDLER· Timing Belts and Pulleys
Polyurethane timing belt T5 width 25mm 25 T5 open length
Manufacturer part no. 16280000
$38.98≈ 33.85 €
In stock — 7 unitslead time 14 d
Estimated landed cost
| Item | €33.85 |
|---|---|
| Shipping | €15.00 |
| VAT (20%) | €9.77 |
| Total delivered | €58.62 |
Estimate for a single item delivered to mainland France, shipped from outside the EU: customs duty and clearance fees may apply and are charged by the carrier.
Datasheets & documents
Specifications (automatically extracted)
Other characteristics
| Admissible pulling force | 825 N |
| Angle x3b2 | 40 ° |
| Belt width | 25 mm |
| Matching clamping plate | 16 289 900 |
| Roller length max. | 100 m |
| Strap height | 1 mm |
| Tooth height | 1.2 mm |
| Material | Polyurethane (TPU) with steel cord |

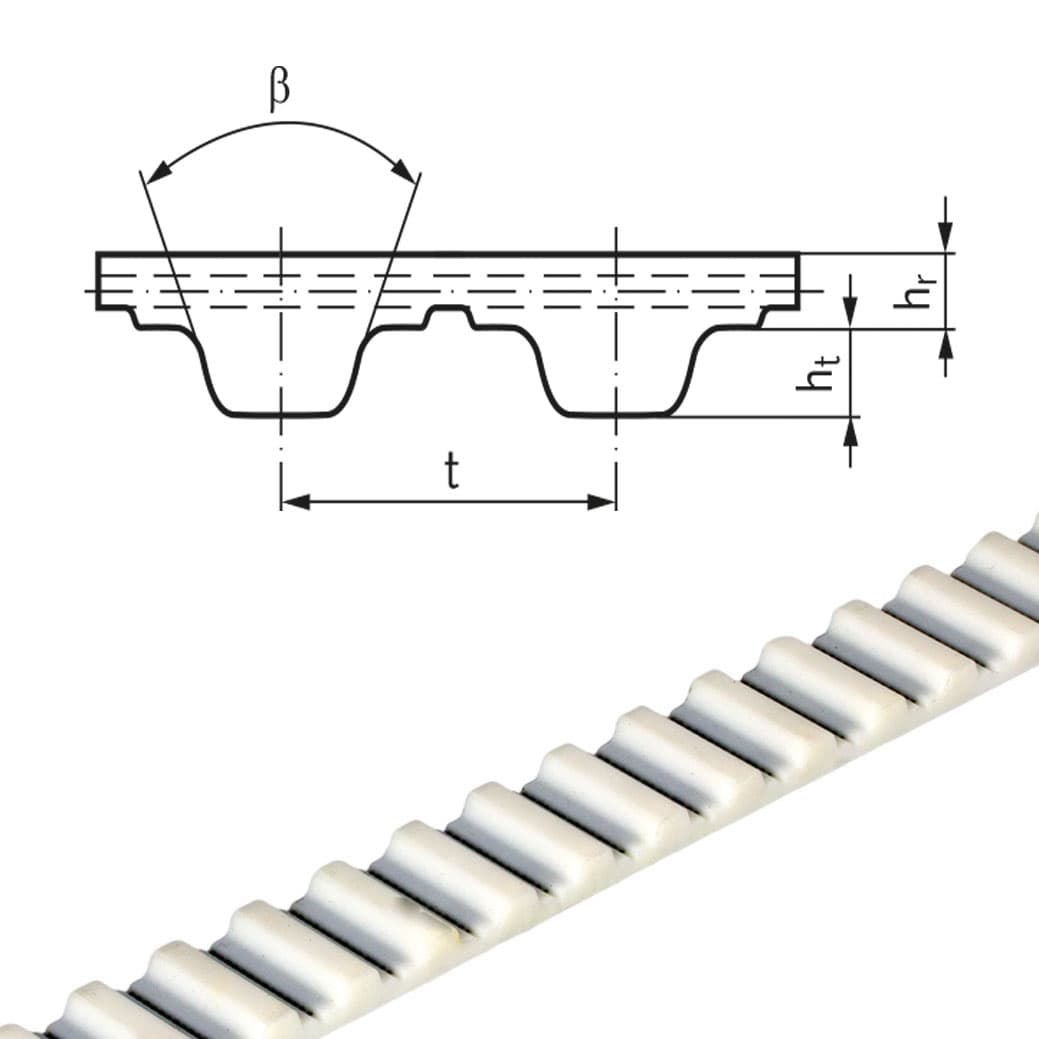

| Profile | T5 |
| Surface | Blank |
| Weight | 63 g/m |
Description
Material: Thermoplastic polyurethane (TPU), white, with steel tensile member. Good resistance against oil, fats and many chemicals. Temperature range -30º to +80ºC. T timing belts only run on T pulleys. Belts made of TPU can be welded to endless belts. When welded, the perm. tensile force is reduced to 50%. 1 Unit = 1 Meter = 39.37 Inches
