MÄDLERMÄDLER· Timing Belts and Pulleys

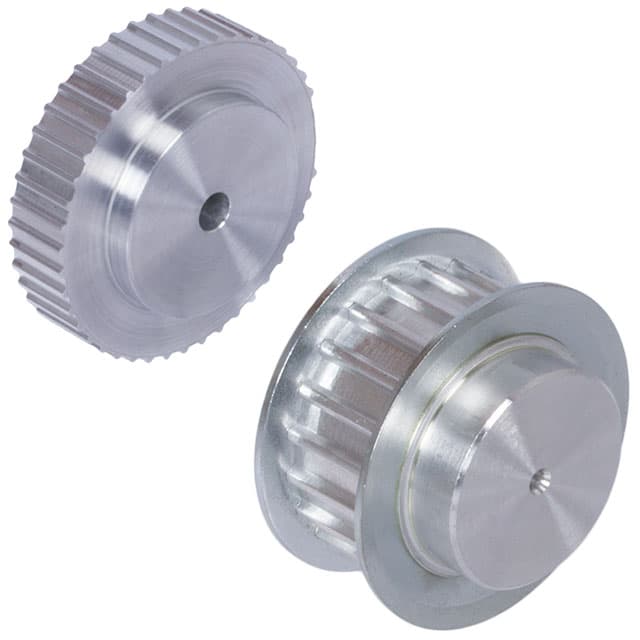

Timing belt pulley AT5 material aluminium 22 teeth for belt width 16mm 27 AT5/22-2
Manufacturer part no. 16632200
$13.38≈ 11.62 €
In stock — 3 unitslead time 14 d
Estimated landed cost
| Item | €11.62 |
|---|---|
| Shipping | €15.00 |
| VAT (20%) | €5.32 |
| Total delivered | €31.94 |
Estimate for a single item delivered to mainland France, shipped from outside the EU: customs duty and clearance fees may apply and are charged by the carrier.
Datasheets & documents
Specifications (automatically extracted)
Mechanical
| Weight | 54 g |
Other characteristics
| Belt width | 16 mm |
| Hub diameter | 24 mm |
| No of teeth | 22 |
| Outer diameter of flanges | 38 mm |
| Outer diameter of pulley | 33.79 mm |
| Pitch circle diameter | 35.01 mm |
| Tooth width | 21 mm |
| Total length | 27 mm |
| Version | 1 F |
| Material | Aluminum |
| Pilot hole | Without bore mm |
| Profile | AT5 |
| Surface | Blank |
| Type | 27 AT5/22-2 |
Description
Material: Aluminium similar EN AW2017A. Flanges zinc-plated steel.
