MÄDLERMÄDLER· Timing Belts and Pulleys

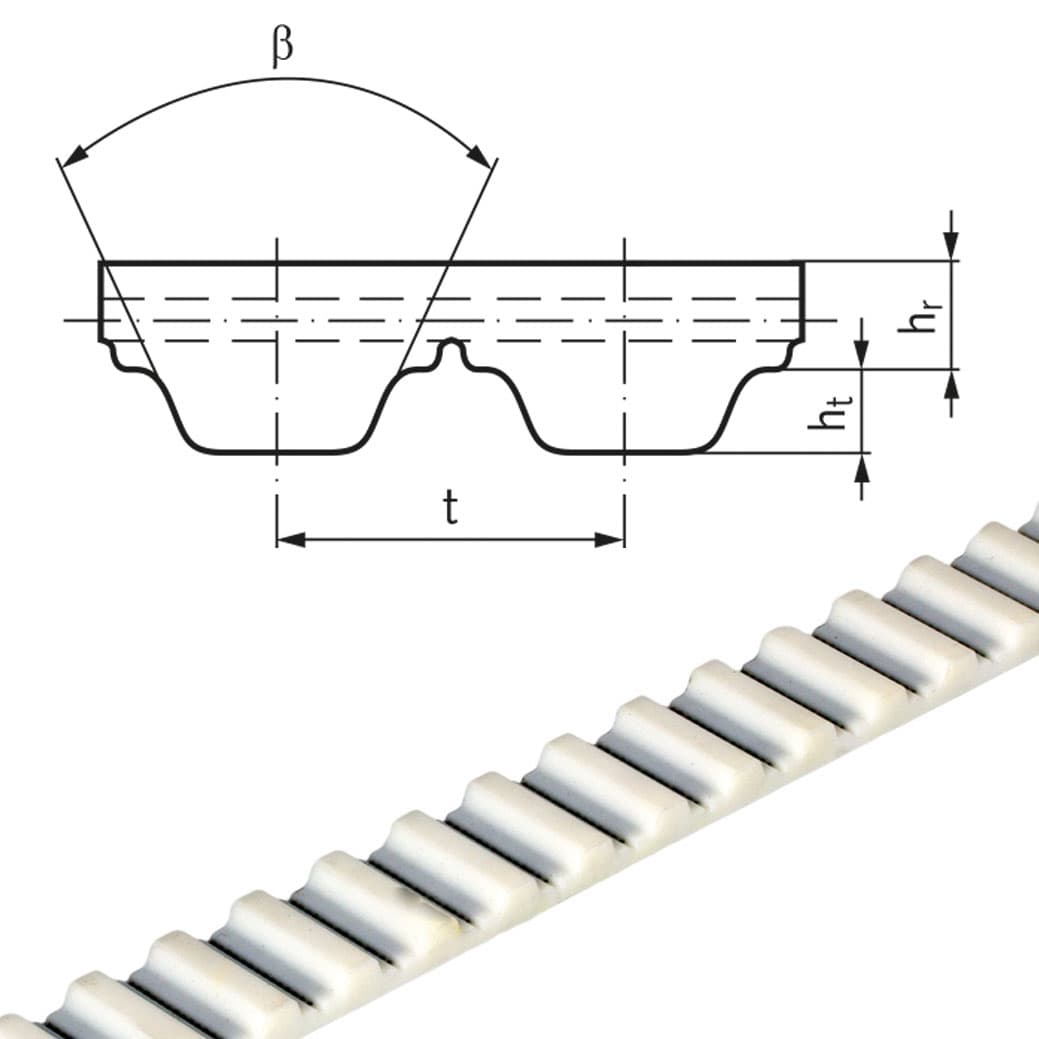

Polyurethane timing belt AT5 width 50mm 50 AT5 open length with tensile members from steel packed 2 x 25mm
Manufacturer part no. 16688000
$85.55≈ 74.29 €
In stock — 28 unitslead time 14 d
Estimated landed cost
| Item | €74.29 |
|---|---|
| Shipping | €15.00 |
| VAT (20%) | €17.86 |
| Total delivered | €107.15 |
Estimate for a single item delivered to mainland France, shipped from outside the EU: customs duty and clearance fees may apply and are charged by the carrier.
Datasheets & documents
Specifications (automatically extracted)
Mechanical
| Dimensions | 2x25mm |
Other characteristics
| Admissible pulling force | 3 500 N |
| Angle x3b2 | 50 ° |
| Belt width | 50 mm |
| Matching clamping plate | 16 689 901 |
| Roller length max. | 100 m |
| Strap height | 1.2 mm |
| Tooth height | 1.5 mm |
| Material | Polyurethane (TPU) with steel cord |
| Profile | AT5 |
| Surface | Blank |
| Weight | 170 g/m |
Description
Material: Thermoplastic polyurethane (TPU), white, with steel tensile member. Good resistance against oil, fats and many chemicals. Temperature range -30º to +80ºC. AT timing belts only run on AT pulleys. Belts made of TPU can be welded to endless belts. When welded, the perm. tensile force is reduced to 50%. 1 Unit = 1 Meter = 39.37 Inches
