MÄDLERMÄDLER· Timing Belts and Pulleys

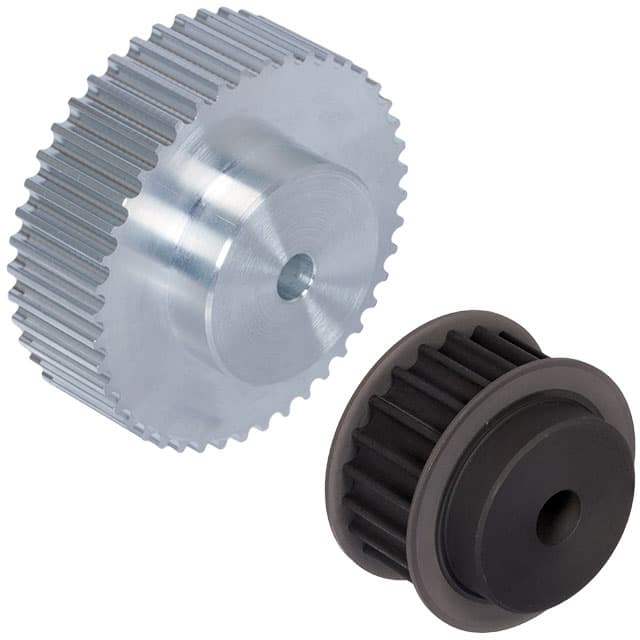

Timing belt pulley HTD 5M material steel 21 teeth for belt width 25mm
Manufacturer part no. 17242100
$17.38≈ 15.09 €
In stock — 1 unitslead time 14 d
Estimated landed cost
| Item | €15.09 |
|---|---|
| Shipping | €15.00 |
| VAT (20%) | €6.02 |
| Total delivered | €36.11 |
Estimate for a single item delivered to mainland France, shipped from outside the EU: customs duty and clearance fees may apply and are charged by the carrier.
Datasheets & documents
Specifications (automatically extracted)
Mechanical
| Weight | 200 g |
Other characteristics
| Belt width | 25 mm |
| Bore | 14 mm |
| Hub diameter | 24 mm |
| No of teeth | 21 |
| Outer diameter of flanges | 38 mm |
| Outer diameter pulley | 32.28 mm |
| Pilot hole | 6 mm |
| Pitch circle diameter | 33.42 mm |
| Total length | 38 mm |
| Version | 1 F |
| Material | Steel |
| Profile | HTD 5M |
| Surface | Phosphated |
Description
Material: Up to a teeth number of 40 phosphated steel, from a teeth number of 44 aluminium similar EN AW2017A. The functionability of a belt drive is largely influenced by the quality of the used pulley. HTD pulleys are precision components, manufactured pitch-true with special cutters. This leads to a precise meshing of teeth.
