MÄDLERMÄDLER· Timing Belts and Pulleys
Polyurethane timing belt HTD 5M width 10mm 5M-10 open length PAZ = Polyamide fabric on tooth side
Manufacturer part no. 17366101
$12.39≈ 10.76 €
In stock — 1 unitslead time 14 d
Estimated landed cost
| Item | €10.76 |
|---|---|
| Shipping | €15.00 |
| VAT (20%) | €5.15 |
| Total delivered | €30.91 |
Estimate for a single item delivered to mainland France, shipped from outside the EU: customs duty and clearance fees may apply and are charged by the carrier.
Datasheets & documents
Specifications (automatically extracted)
Other characteristics
| Admissible pulling force | 780 N |
| Belt width | 10 mm |
| Matching clamping plate | 17 319 900 |
| Roller length max. | 100 m |

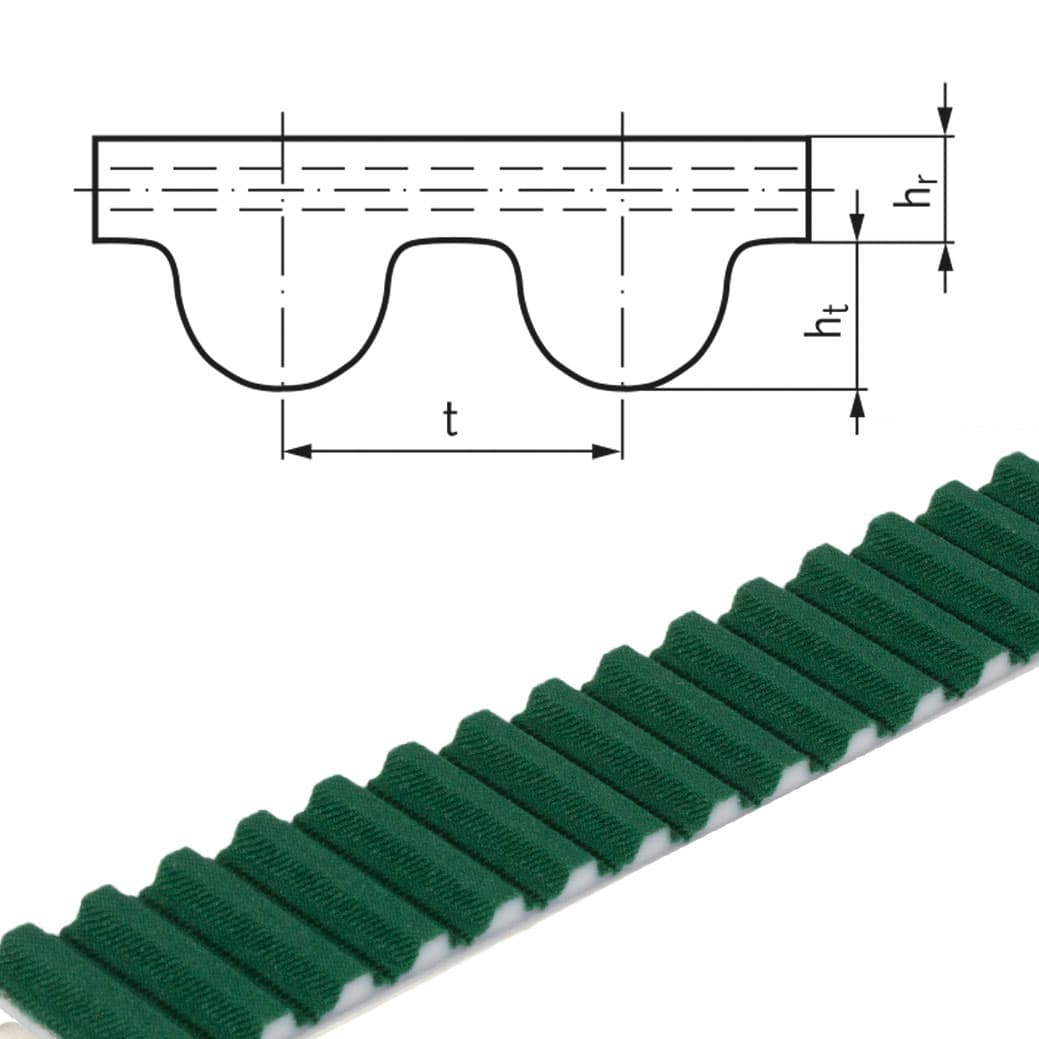

| Strap height | 1.59 mm |
| Tooth height | 2.11 mm |
| Material | Polyurethane (TPU) with steel cord |
| Profile | HTD 5M |
| Surface | PAZ-coated (tooth side) |
| Weight | 48 g/m |
Description
Material: Thermoplastic polyurethane (TPU), white, with steel tensile member. With green polyamide fabric on the tooth side. Temperature range -30º to +80ºC. TPU PAZ belts can be welded to endless belts (tensile force -50%). The polyamide fabric reduces the friction on aluminium or steel plates to approx. 50%. On plastic sliding plates, the friction reduction is approx. 30%. So, depending on the application, the needed driving power is much lower. By the fabric, the wear resistance of the belt is much higher and the noise is lower. Application: for example supported transportation belt drives. 1 Unit = 1 Meter = 39.37 Inches
