MÄDLERMÄDLER· Timing Belts and Pulleys

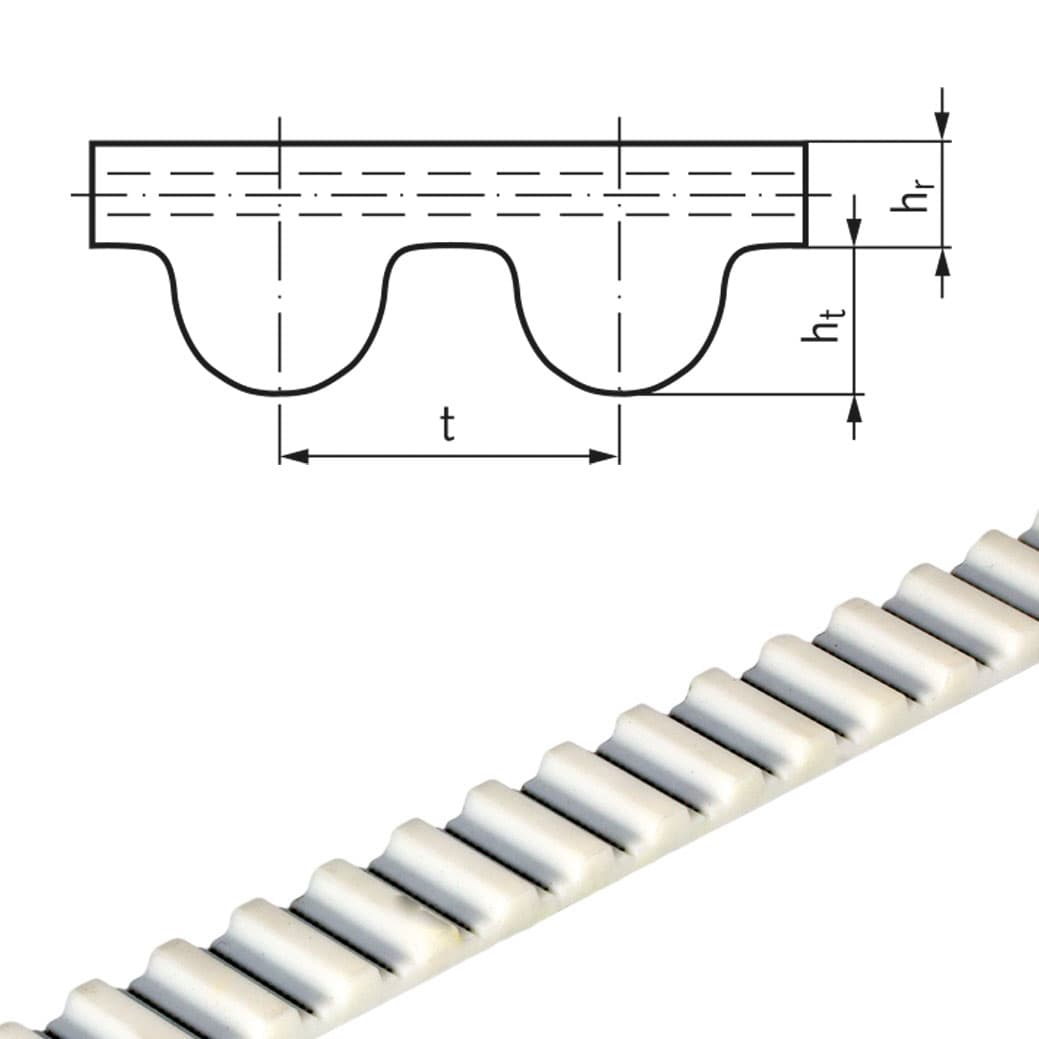

Polyurethane timing belt HTD 14M width 85mm 14M-85 open length
Manufacturer part no. 17766500
$154.84≈ 134.47 €
In stock — 6 unitslead time 14 d
Estimated landed cost
| Item | €134.47 |
|---|---|
| Shipping | €15.00 |
| VAT (20%) | €29.89 |
| Total delivered | €179.36 |
Estimate for a single item delivered to mainland France, shipped from outside the EU: customs duty and clearance fees may apply and are charged by the carrier.
Datasheets & documents
Specifications (automatically extracted)
Other characteristics
| Admissible pulling force | 21 600 N |
| Belt width | 85 mm |
| Matching clamping plate | 17 766 599 |
| Roller length max. | 100 m |
| Strap height | 3.9 mm |
| Tooth height | 6.1 mm |
| Material | Polyurethane (TPU) with steel cord |
| Profile | HTD 14M |
| Surface | Blank |
| Weight | 964 g/m |
Description
Material: Thermoplastic polyurethane (TPU), white, with steel tensile member. Good resistance against oil, fats and many chemicals. Temperature range -30º to +80ºC. Belts made of TPU can be welded to endless belts. When welded, the perm. tensile force is reduced to 50%. 1 Unit = 1 Meter = 39.37 Inches
