MÄDLERMÄDLER· Timing Belts and Pulleys

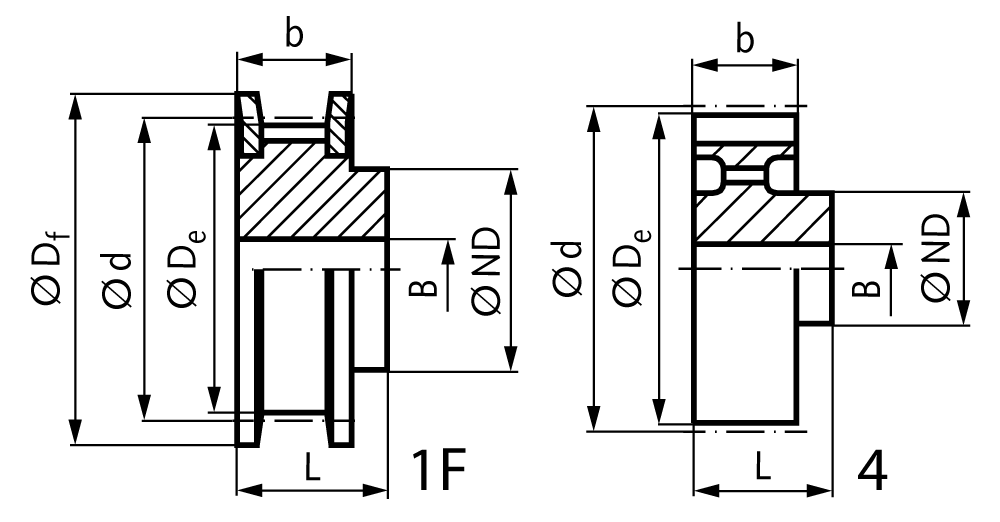

Timing belt pulley L material grey cast iron 72 teeth for belt width 050=12.7mm
Manufacturer part no. 18217200
$77.50≈ 67.30 €
In stock — 1 unitslead time 14 d
Estimated landed cost
| Item | €67.30 |
|---|---|
| Shipping | €15.00 |
| VAT (20%) | €16.46 |
| Total delivered | €98.76 |
Estimate for a single item delivered to mainland France, shipped from outside the EU: customs duty and clearance fees may apply and are charged by the carrier.
Datasheets & documents
Specifications (automatically extracted)
Mechanical
| Weight | 2.77 kg |
Other characteristics
| Belt width | 12.7 mm |
| No of teeth | 72 |
| Outer diameter pulley | 217.53 mm |
| Pilot hole | 14 mm |
| Version | 4 |
| Material | Grey cast iron (A48) |
| Profile | L |
| Surface | Phosphated |
Description
Material: Up to a Teeth Number of 48 phosphated steel, from a Teeth Number of 50 grey cast iron GG25. Pre-bored. Profile L = 3/8" = 9.525 mm. Belt width 050 = 12.7 mm.
