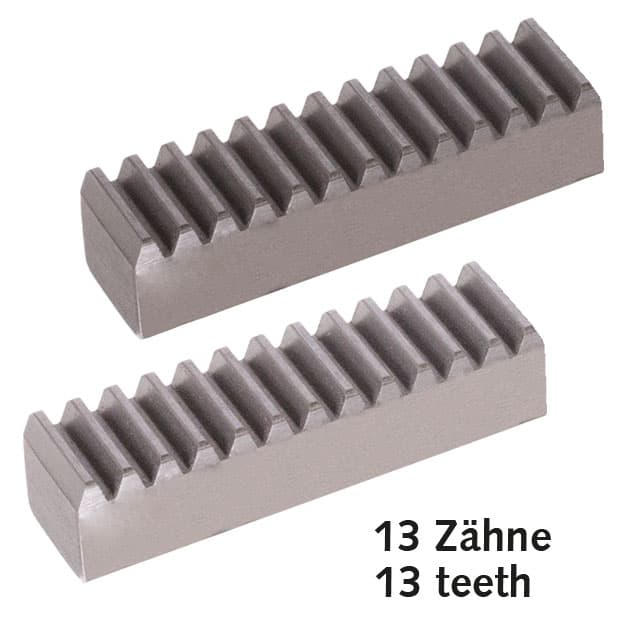

Mounting aid for gear racks stainless steel 1.4305 pitch 5mm tooth width 15mm height 15mm length approx. 63mm
Manufacturer part no. 20599600
$26.08≈ 22.65 €
In stock — 2 unitslead time 14 d
Estimated landed cost
| Item | €22.65 |
|---|---|
| Shipping | €15.00 |
| VAT (20%) | €7.53 |
| Total delivered | €45.18 |
Estimate for a single item delivered to mainland France, shipped from outside the EU: customs duty and clearance fees may apply and are charged by the carrier.
Datasheets & documents
Specifications (automatically extracted)
Mechanical
| Weight | 101 g |
Other characteristics
| B | 15 mm |
| H0 | 13.4 mm |
| Ha | 15 mm |
| L | 63 mm |
| Material | 1.431 |
| Module | 1.59 |
| Pitch | 5 mm |
| Tooth quality | 8 d25 |
Description

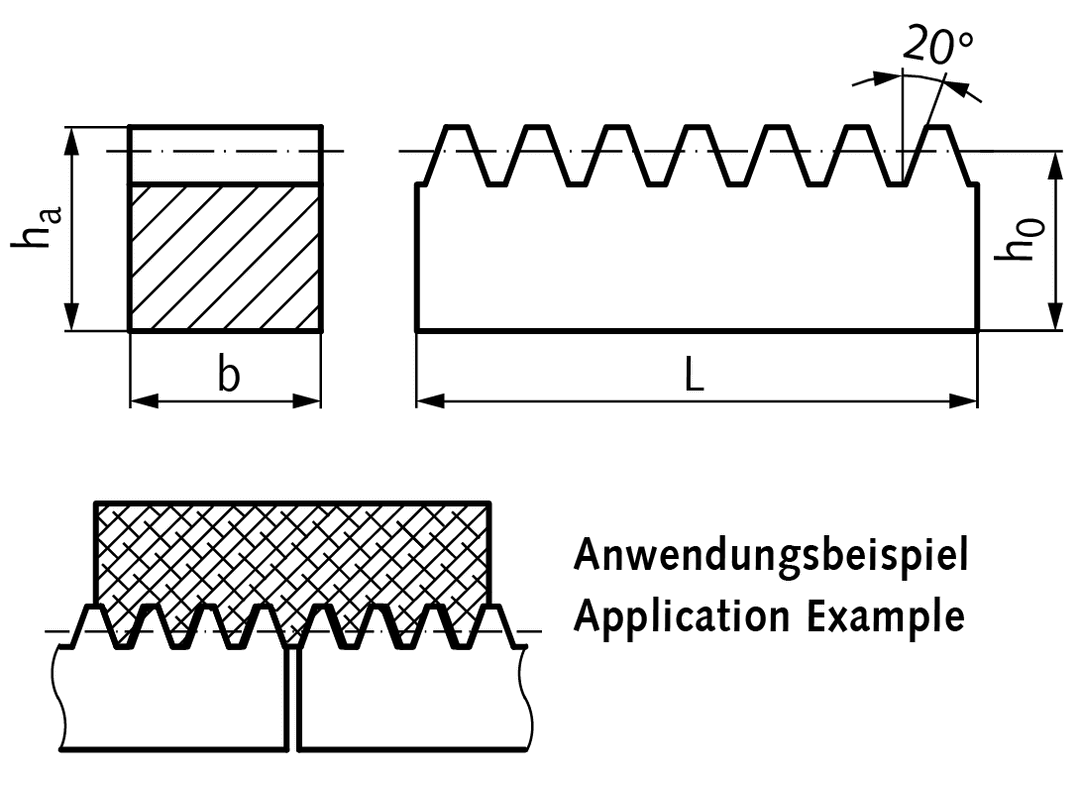

Material: Steel C45KG, tooth quality 8d25. Steel 16MnCr5, tooth quality 7h25. Stainless steel 1.4305 (AISI 303), tooth quality 8d25. Reference profile 2 DIN 867 / DIN 3972. Pressure angle 20º. Tooth quality according to DIN 3967. Milled teeth. Versions from steel 16MnCr5 have induction hardened teeth, ground at all long surfaces, including teeth. All these mounting aids have 13 teeth. Other dimensions and designs on request. Production-related tolerances of dimensions ha and h0: module 1.5 – 2: -0.2 mm, module 2.5 – 4: -0.3 mm, module 5 – 8: -0.4 mm
