MÄDLERMÄDLER· Spur Gears, Toothed Racks, Internal Gears, Ratchet Wheels

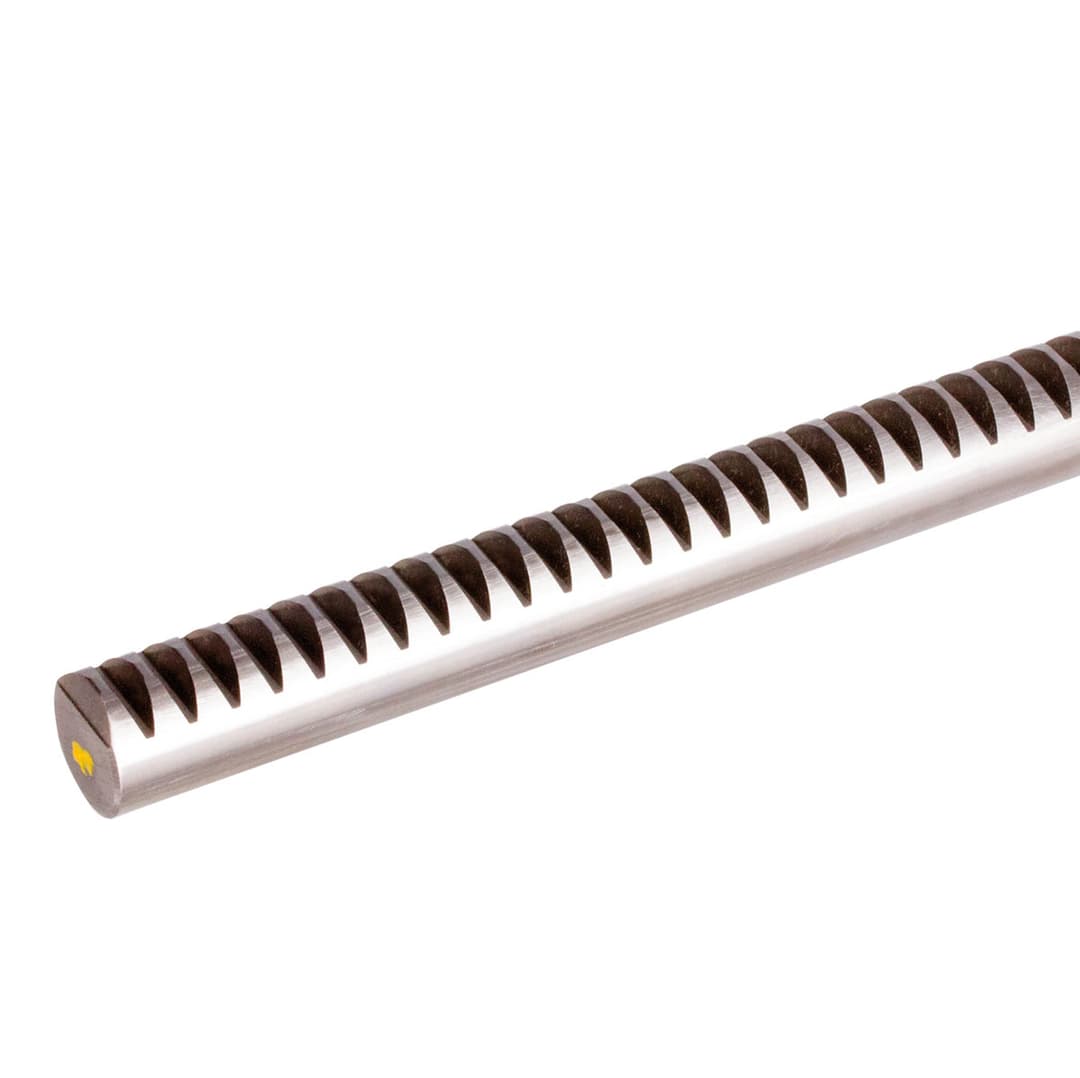

Round gear rack made of stainless steel module 1.59 (metrical pitch 5mm) Ø 15mm h9 length 1000mm
Manufacturer part no. 20599632
$276.20≈ 239.86 €
In stock — 1 unitslead time 14 d
Estimated landed cost
| Item | €239.86 |
|---|---|
| Shipping | €15.00 |
| VAT (20%) | €50.97 |
| Total delivered | €305.83 |
Estimate for a single item delivered to mainland France, shipped from outside the EU: customs duty and clearance fees may apply and are charged by the carrier.
Datasheets & documents
Specifications (automatically extracted)
Mechanical
| Weight | 1.28 kg |
Other characteristics
| Nominal length | 1 000 mm |
| Pitch | 5 mm |
| Tooth quality | 8 |
| Hardened | No |
| Material | Stainless steel (303) |
| Module | 1.59 (5mm) |
| Surface | Blank |
Description
Material: Stainless steel 1.4305. Outside diameter = h9 drawn. Straight teeth, milled. Pressure angle 20°. Tooth quality 8d25 modelled on DIN 3967. Pitch 5 mm = module 1.59. Pitch 10 mm = module 3.18. The teeth on the gear racks are manufactured using an overhead milling cutter. This leads to negative tolerances. Dimensions ha and h0: Pitch 5 mm: -0.2 mm. Pitch 10 mm: -0.3 mm.
