MÄDLERMÄDLER· Spur Gears, Toothed Racks, Internal Gears, Ratchet Wheels

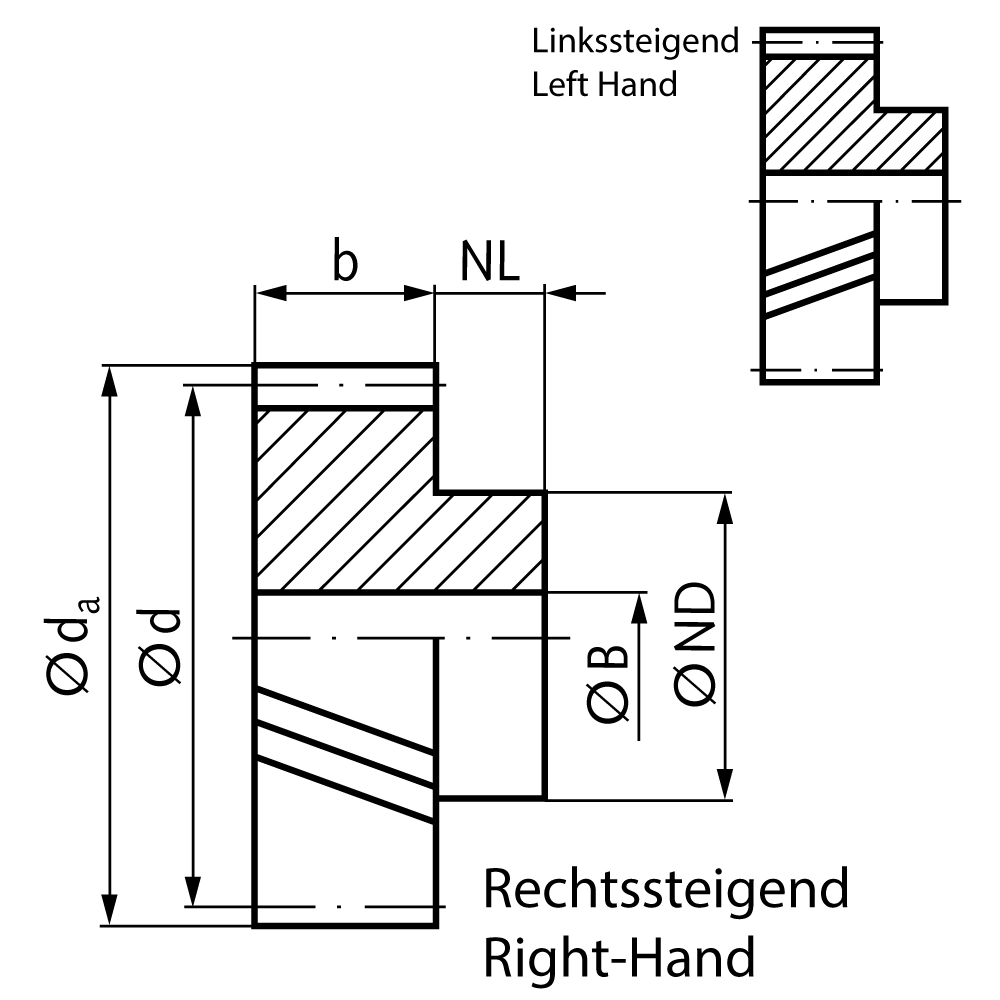

Spur gear made of steel C45 with hub module 1 36 teeth tooth width 10mm helical tooth 20° left handed outside diameter 40.3mm
Manufacturer part no. 21433600
$40.19≈ 34.90 €
In stock — 2 unitslead time 14 d
Estimated landed cost
| Item | €34.90 |
|---|---|
| Shipping | €15.00 |
| VAT (20%) | €9.98 |
| Total delivered | €59.88 |
Estimate for a single item delivered to mainland France, shipped from outside the EU: customs duty and clearance fees may apply and are charged by the carrier.
Datasheets & documents
Specifications (automatically extracted)
Mechanical
| Weight | 96.9 g |
Other characteristics
| Bore diameter | 6 mm |
| Hub diameter | 18 mm |
| Hub length | 6 mm |
| Max torque | 201 Ncm |
| Module | 1 |
| No of teeth | 36 |
| Outer diameter | 40.3 mm |
| Pitch circle diameter | 38.31 mm |
| Tooth quality | 8 |
| Tooth width | 10 mm |
| Hardened | No |
| Hub | With |
| Material | Steel (12L13) |
| Surface | Blank |
Description

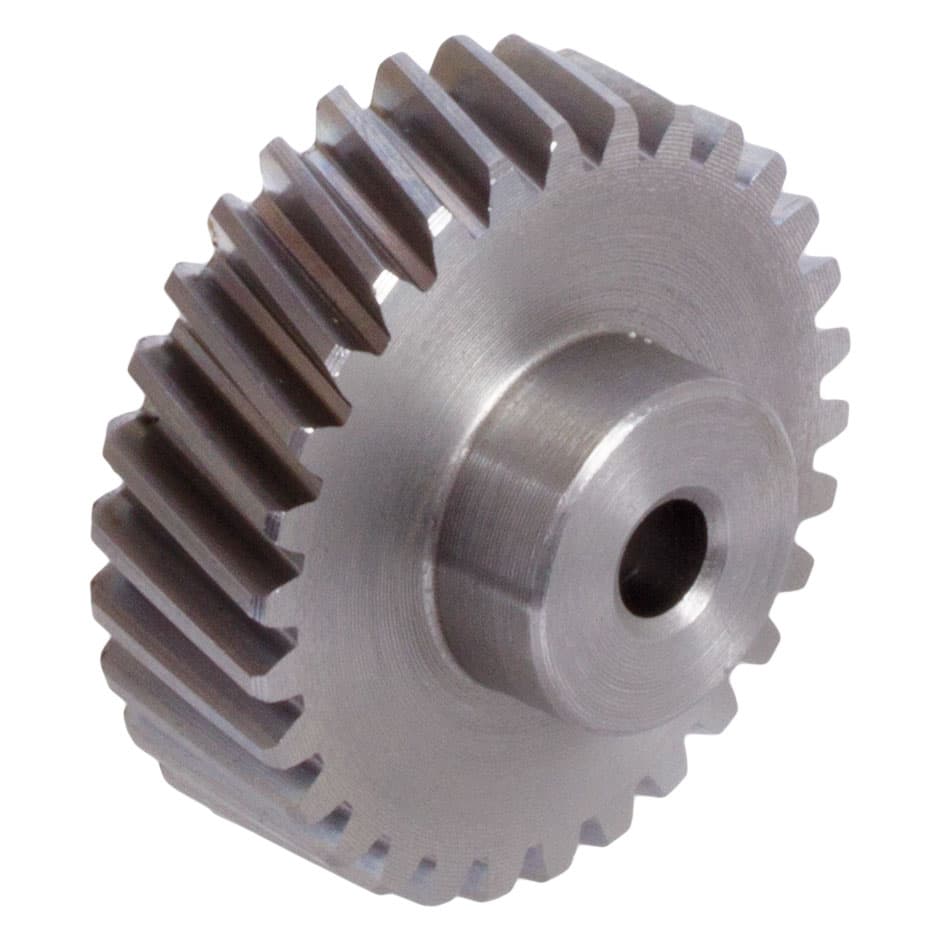

Material: Steel C45. Milled teeth. 20° helical tooth system, right and left hand. Pressure angle 20°. Within one module series gears with helical tooth system always mesh in right-hand/left-hand pairing. Photo: right hand. rechts = right handed, links = left handed
