MÄDLERMÄDLER· Spur Gears, Toothed Racks, Internal Gears, Ratchet Wheels
Spur gear made of plastic PA12G natural white with stainless steel core 1.4305 module 1.5 80 teeth tooth width 17mm outside diameter 123mm
Manufacturer part no. 21895080
$304.72≈ 264.63 €
In stock — 1 unitslead time 14 d
Estimated landed cost
| Item | €264.63 |
|---|---|
| Shipping | €15.00 |
| VAT (20%) | €55.93 |
| Total delivered | €335.56 |
Estimate for a single item delivered to mainland France, shipped from outside the EU: customs duty and clearance fees may apply and are charged by the carrier.
Datasheets & documents

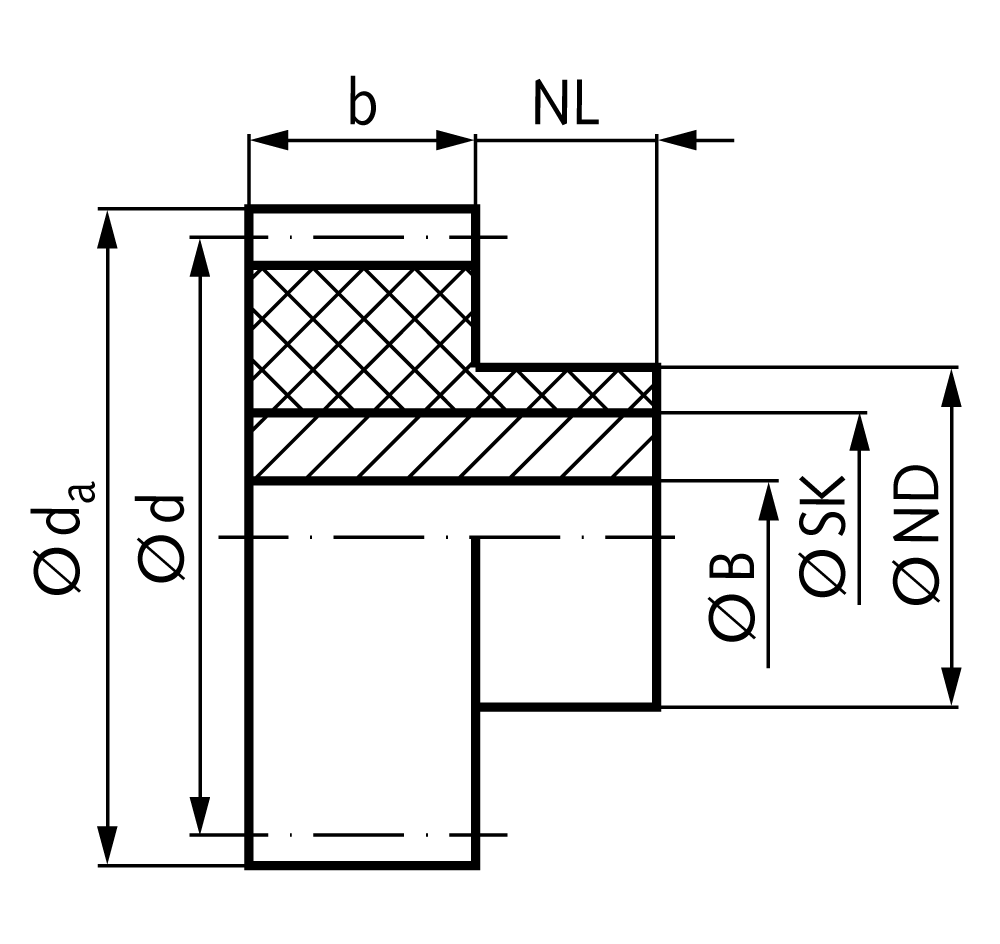

Specifications (automatically extracted)
Mechanical
| Weight | 1.096 kg |
Other characteristics
| Bore diameter | 20 mm |
| Hub diameter | 85 mm |
| Hub length | 13 mm |
| Max torque | 15.3 Nm |
| Module | 1.5 |
| No of teeth | 80 |
| Outer diameter | 123 mm |
| Pitch circle diameter | 120 mm |
| Tooth quality | 8 |
| Tooth width | 17 mm |
| Hardened | No |
| Hub | One sided |
| Material | Plastic (PA12) with stainless steel core |
| Surface | Blank |
Description
Material: Outer part: Plastic PA 12 G, white (natural color). Steel core: Stainless steel 1.4305 (AISI 303). Milled, straight teeth. Tooth quality 8e25 DIN 3967. Temperature range -60°C to +120°C, short periods 150°C. Special plastic with excellent material properties. Enables snugly fitting, high strength shaft-hub connection. Optimal force transmission due to cylindrical contact area. Light, silent and clean, with excellent dry running properties.
