MÄDLERMÄDLER· Spur Gears, Toothed Racks, Internal Gears, Ratchet Wheels

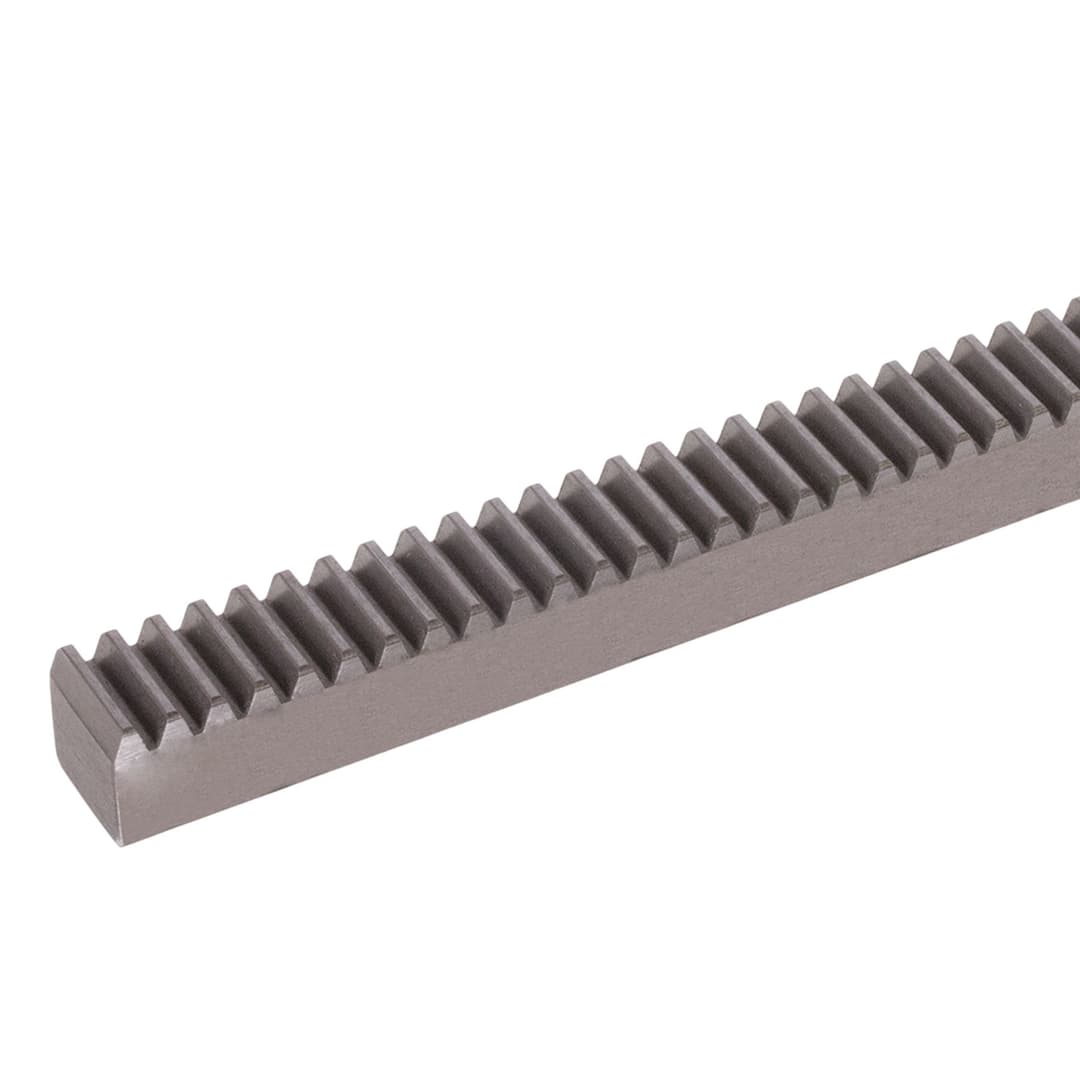

Gear rack made of steel module 0.7 tooth width 5mm height 7mm length 250mm
Manufacturer part no. 22260100
$24.48≈ 21.26 €
In stock — 21 unitslead time 14 d
Estimated landed cost
| Item | €21.26 |
|---|---|
| Shipping | €15.00 |
| VAT (20%) | €7.25 |
| Total delivered | €43.51 |
Estimate for a single item delivered to mainland France, shipped from outside the EU: customs duty and clearance fees may apply and are charged by the carrier.
Datasheets & documents
Specifications (automatically extracted)
Mechanical
| Weight | 60 g |
Other characteristics
| Module | 0.7 |
| Nominal length | 250 mm |
| Tooth quality | 8 |
| Tooth width | 5 mm |
| Hardened | No |
| Material | Steel (A36) |
| Surface | Blank |
Description
Material: Bright steel C45K. Milled teeth. Precisely Straightened. Width tolerance h11. Straight teeth. Pressure angle 20°. Tooth quality 8d25 modelled on DIN 3962, 3967, 3968. The teeth on the gear racks are manufactured using an overhead milling cutter. This leads to negative tolerances for dimension a and h0: up to Module 2: -0,2 mm. Module 2,5 to 3: -0,3 mm. Module 5 to 8: -0,4 mm. From Module 2, except for nominal length 500 mm, cut for continuous linking. * Length = Nominal length. The real length is roughly one multiple of the pitch.
