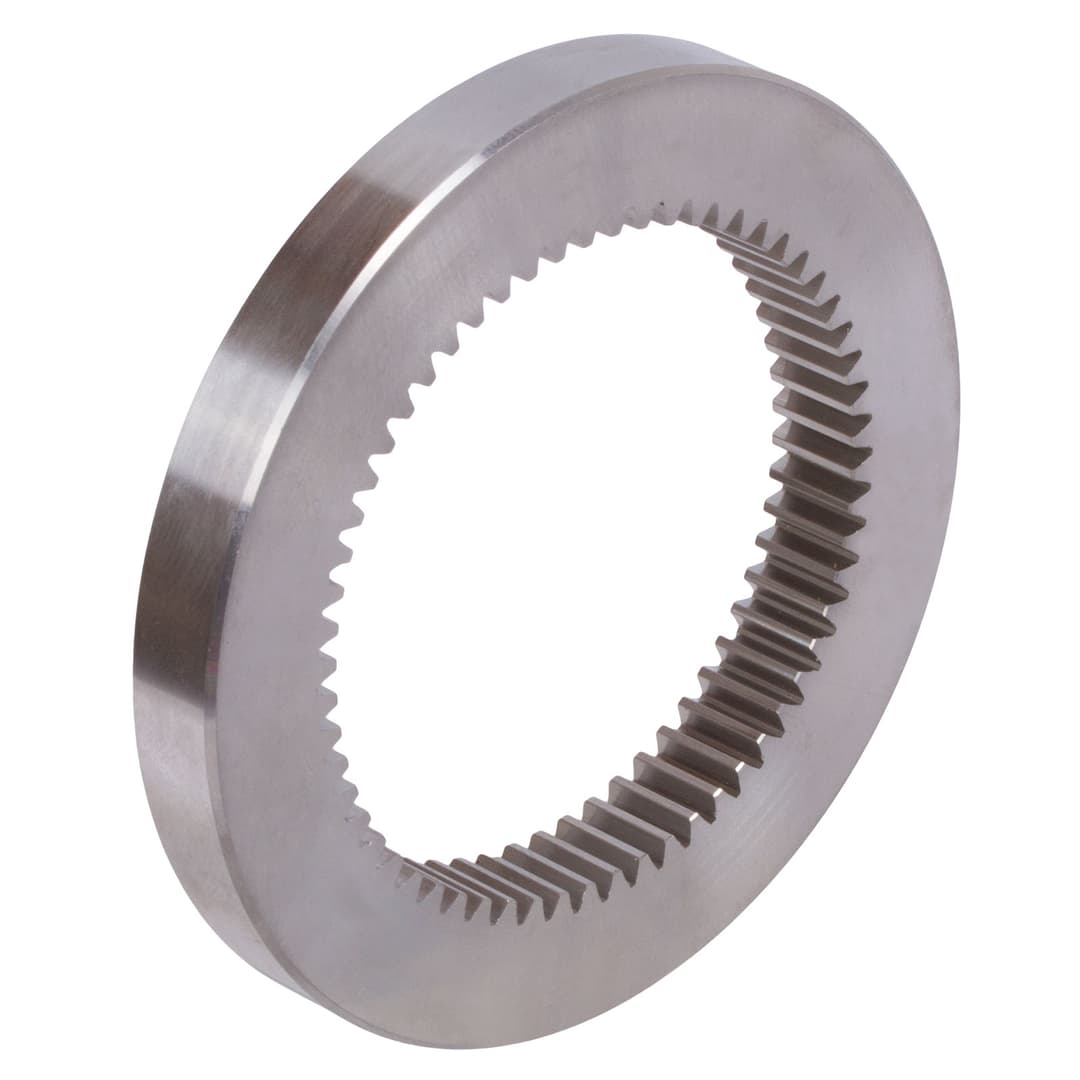

Internal gear made of steel C45 module 1 70 teeth tooth width 10mm outside diameter 95mm

MÄDLERMÄDLER· Spur Gears, Toothed Racks, Internal Gears, Ratchet Wheels

Internal gear made of steel C45 module 1 70 teeth tooth width 10mm outside diameter 95mm

Name: Internal gear made of steel C45 module 1 70 teeth tooth width 10mm outside diameter 95mm
Brand: MÄDLER
Price: 84.64 USD
Availability: InStock

Manufacturer part no. 22447000

$84.64≈ 73.50 €

In stock — 1 unitslead time 14 d

View at seller ↗

Estimated landed cost

Landed cost breakdown
Item	€73.50
Shipping	€15.00
VAT (20%)	€17.70
Total delivered	€106.20

Estimate for a single item delivered to mainland France, shipped from outside the EU: customs duty and clearance fees may apply and are charged by the carrier.

Datasheets & documents

Specifications (automatically extracted)

Mechanical

Weight

249 g

Other characteristics

Module	1
No of teeth	70
Outer diameter da mm	95 mm
Tooth width	10 mm
Material	Steel (1045)
Surface	Blank

Description

Tooth quality: 8, Teeth generated. Pressure angle 20°. Outside-diametre tolerance in accordance with DIN ISO 2768 middle.

Internal gear made of steel C45 module 1 70 teeth tooth width 10mm outside diameter 95mm
