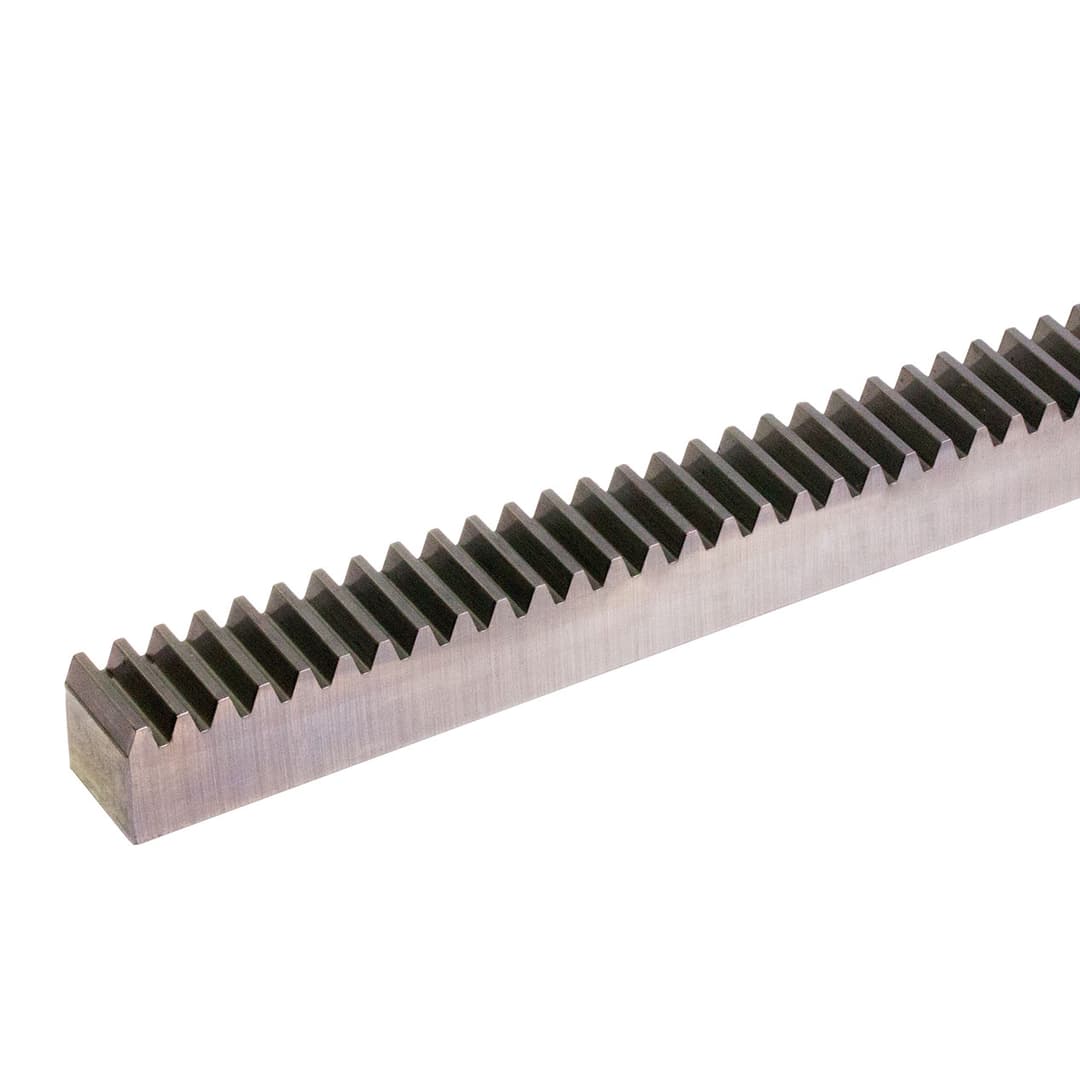

Precision gear rack module 1.5 15x15x1000mm material 16MnCr5 teeth induction hardened ground all-sided
Manufacturer part no. 22868500
$860.90≈ 747.63 €
In stock — 2 unitslead time 14 d
Estimated landed cost
| Item | €747.63 |
|---|---|
| Shipping | €15.00 |
| VAT (20%) | €152.53 |
| Total delivered | €915.16 |
Estimate for a single item delivered to mainland France, shipped from outside the EU: customs duty and clearance fees may apply and are charged by the carrier.
Datasheets & documents
Specifications (automatically extracted)
Mechanical
| Weight | 1.56 kg |
| Dimensions | 15x15x1000mm |
Other characteristics
| Module | 1.5 |
| Nominal length | 1 000 mm |
| Tooth quality | 7 |
| Tooth width | 15 mm |
| Effective length | 998.4 +/-0.3 mm |
| Hardened | Yes |
| Material | Steel (A29) |
| Surface | Ground finish |
Description
Material: 16MnCr5, tooth area induction hardened, HRC 58 ±2. Ground on all sides including the teeth. As only the teeth are hardened subsequent drilling and pinning is easily possible. Straight teeth. Pressure angle 20°. Teeth milled, hardened and ground. Tooth quality 7h25. From Module 1,5 cut for continuous linking. Tolerances: Angle accuracy 0,02 mm. Parallelism at length 500 mm = 0,03 mm. Parallelism at length 1000 mm = 0,05 mm. Tolerance to h0-line: on 500 mm = 0,03 mm. on 1000 mm = 0,05 mm. The width is machined with a tolerance of 0,05.
