MÄDLERMÄDLER· Spur Gears, Toothed Racks, Internal Gears, Ratchet Wheels

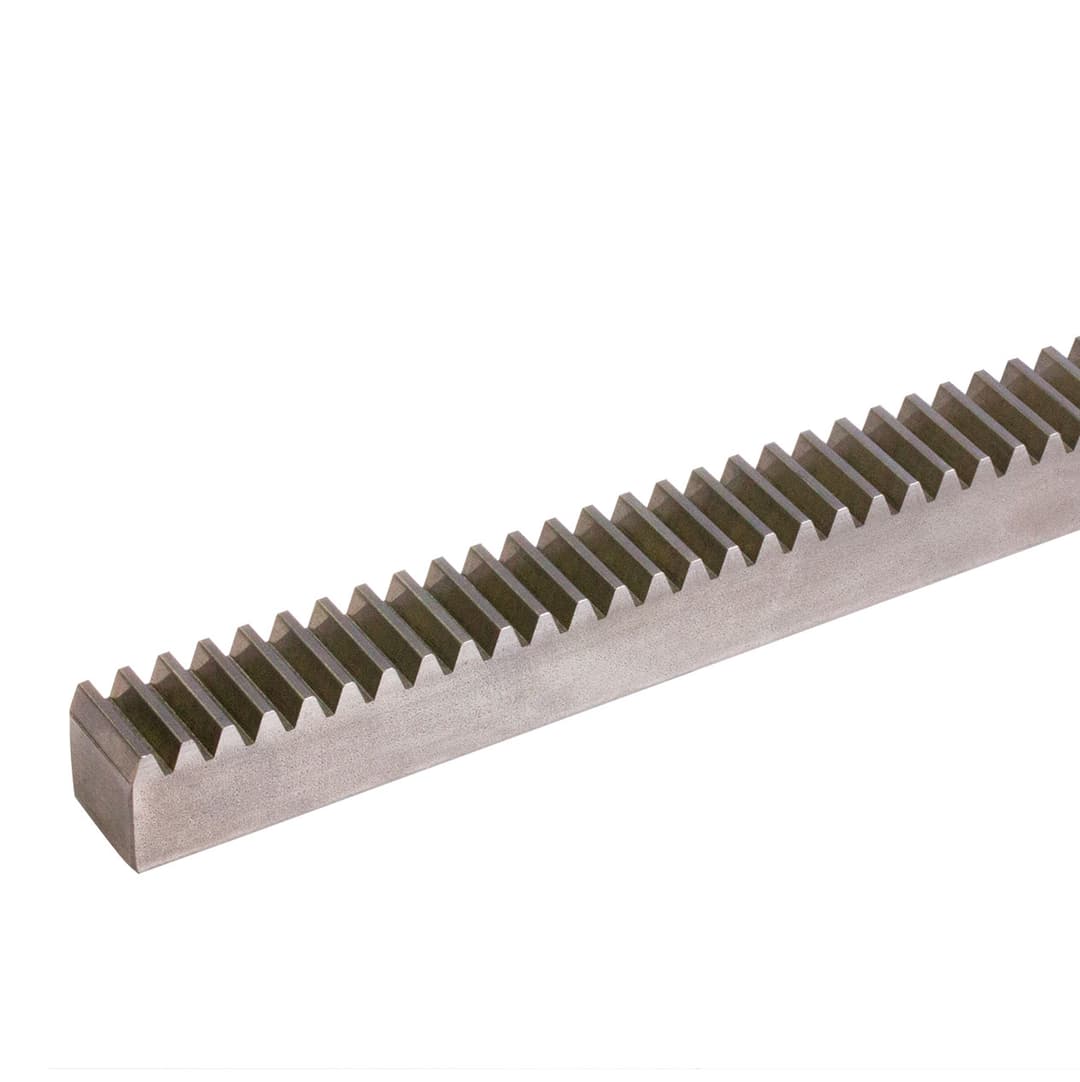

Gear rack made of stainless steel 1.4305 module 1.5 tooth width 15mm height 15mm length 1000mm
Manufacturer part no. 22899605
$214.08≈ 185.91 €
In stock — 4 unitslead time 14 d
Estimated landed cost
| Item | €185.91 |
|---|---|
| Shipping | €15.00 |
| VAT (20%) | €40.18 |
| Total delivered | €241.09 |
Estimate for a single item delivered to mainland France, shipped from outside the EU: customs duty and clearance fees may apply and are charged by the carrier.
Datasheets & documents
Specifications (automatically extracted)
Mechanical
| Weight | 1.55 kg |
Other characteristics
| Module | 1.5 |
| Nominal length | 1 000 mm |
| Tooth quality | 8 |
| Hardened | No |
| Material | Stainless steel (303) |
| Surface | Blank |
Description
Material: Stainless steel 1.4305 (AISI 303). Milled teeth, precisely straightened. Straight teeth. Pressure angle 20°. Tooth quality 8d25 modelled on DIN 3967. The teeth on the gear racks are manufactured using an overhead milling cutter. This leads to negative tolerances for dimension a and h0: up to Module 2: -0,2 mm. Module 2,5 to 4: -0,3 mm. From Module 2, except for nominal length 500 mm, cut for continuous linking.
