MÄDLERMÄDLER· Spur Gears, Toothed Racks, Internal Gears, Ratchet Wheels

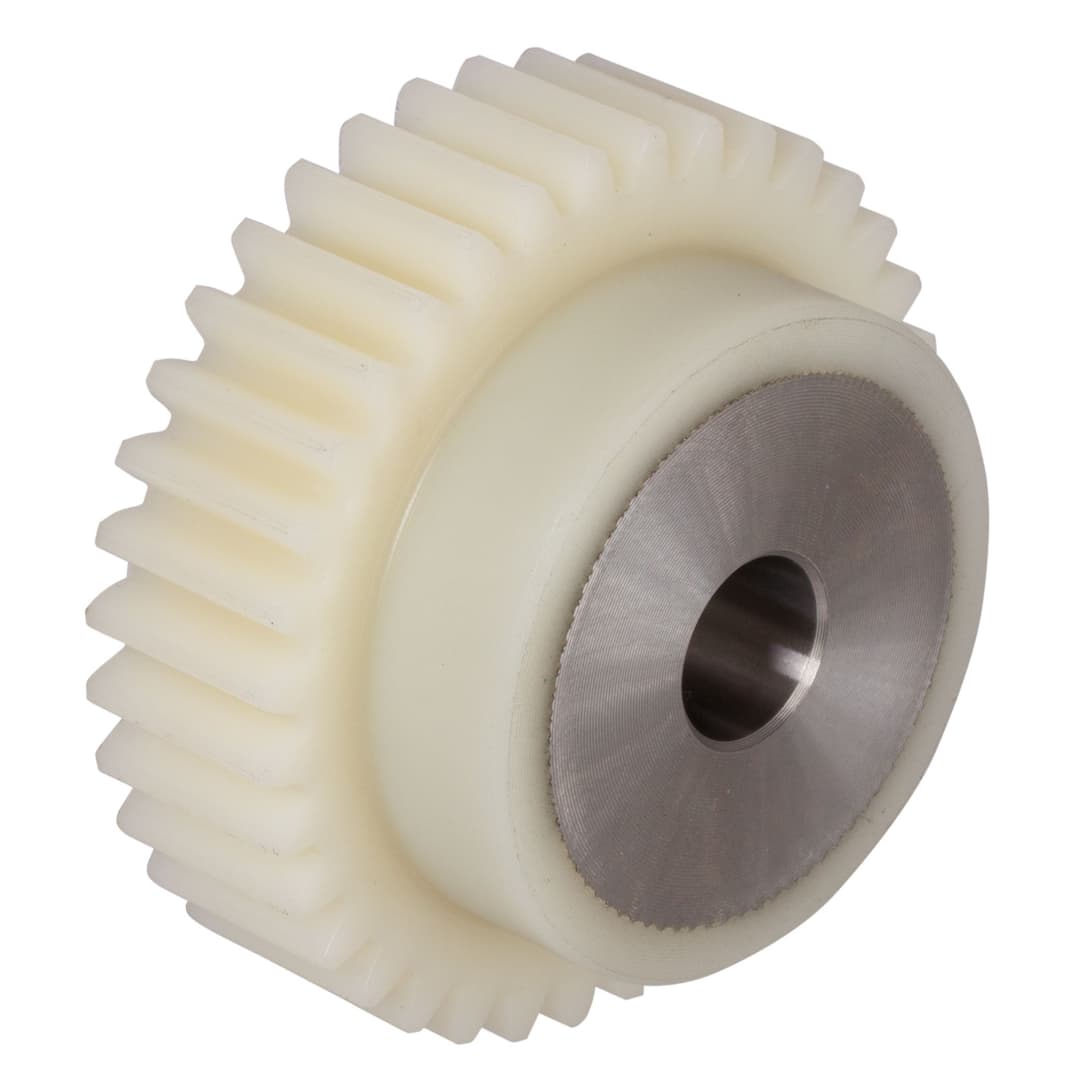

Spur gear made of plastic PA12G natural white with steel core module 3 36 teeth tooth width 30mm outside diameter 114mm
Manufacturer part no. 23355036
$225.96≈ 196.23 €
In stock — 1 unitslead time 14 d
Estimated landed cost
| Item | €196.23 |
|---|---|
| Shipping | €15.00 |
| VAT (20%) | €42.25 |
| Total delivered | €253.48 |
Estimate for a single item delivered to mainland France, shipped from outside the EU: customs duty and clearance fees may apply and are charged by the carrier.
Datasheets & documents
Specifications (automatically extracted)
Mechanical
| Weight | 1.565 kg |
Other characteristics
| Bore diameter | 20 mm |
| Hub diameter | 80 mm |
| Hub length | 20 mm |
| Max torque | 42 Nm |
| Module | 3 |
| No of teeth | 36 |
| Outer diameter | 114 mm |
| Pitch circle diameter | 108 mm |
| Tooth quality | 8 |
| Tooth width | 30 mm |
| Hardened | No |
| Hub | One sided |
| Material | Plastic (PA12) with steel core |
| Surface | Blank |
Description
Material: Outer part: Plastic PA 12 G, white (natural color) with steel core. Milled, straight teeth. Tooth quality 8e25 DIN 3967. Temperature range -60°C to +120°C, short periods 150°C. – Special plastic with excellent material properties. – Enables snugly fitting, high strength shaft-hub connection. – Optimal force transmission due to cylindrical contact area. – Light, silent and clean, with excellent dry running properties.
