MÄDLERMÄDLER· Spur Gears, Toothed Racks, Internal Gears, Ratchet Wheels
Spur gear made of steel C45 with hub module 3 12 teeth tooth width 30mm outside diameter 42mm teeth induction hardened
Manufacturer part no. 23388112
$52.69≈ 45.76 €
In stock — 1 unitslead time 14 d
Estimated landed cost
| Item | €45.76 |
|---|---|
| Shipping | €15.00 |
| VAT (20%) | €12.15 |
| Total delivered | €72.91 |
Estimate for a single item delivered to mainland France, shipped from outside the EU: customs duty and clearance fees may apply and are charged by the carrier.
Datasheets & documents

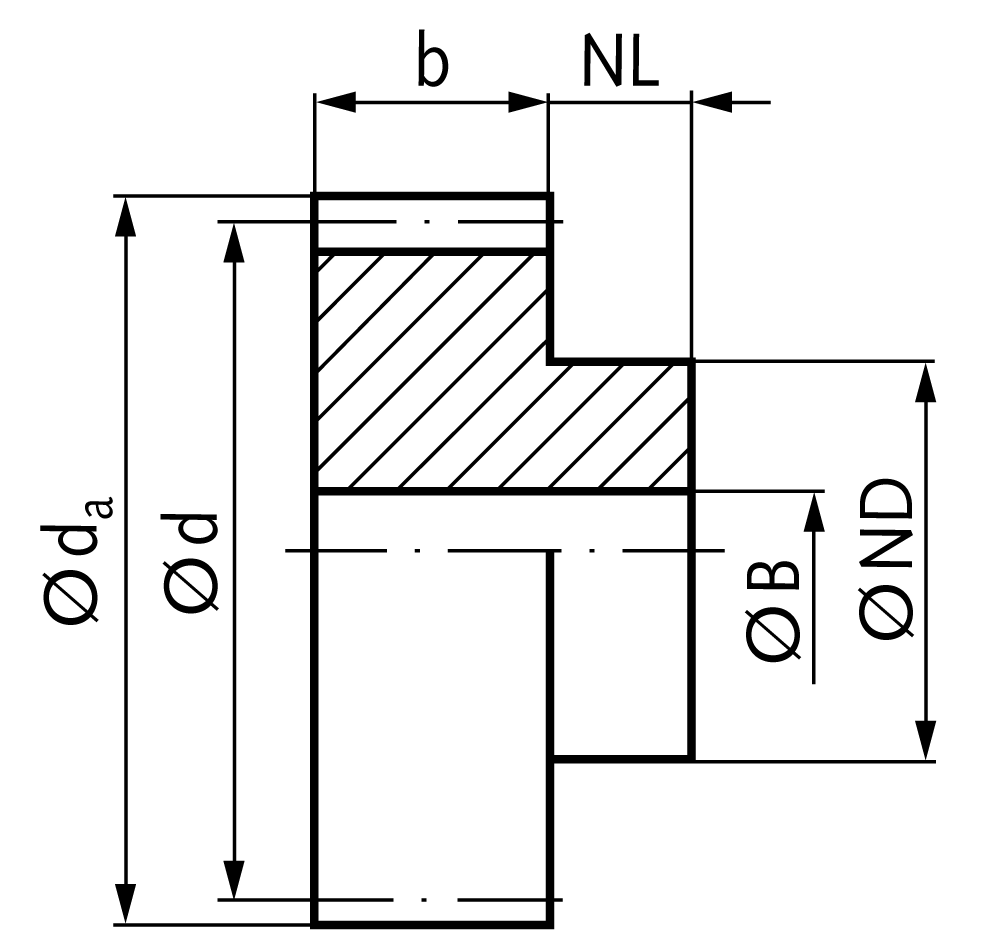

Specifications (automatically extracted)
Mechanical
| Weight | 280 g |
Other characteristics
| Admissible md | 35 Nm |
| Bore diameter | 12 mm |
| Hub diameter | 27 mm |
| Hub length | 20 mm |
| Module | 3 |
| No of teeth | 12 |
| Outer diameter | 42 mm |
| Pitch circle diameter | 36 mm |
| Tooth width | 30 mm |
| Hardened | Yes |
| Hub | One sided |
| Material | Steel (1045) |
| Surface | Blank |
| Tooth quality | 10-11 |
Description
Material: Steel C45. Tooth area induction hardened, 54 +4 HRC. Teeth milled in quality 8d25 DIN 3967. The hardening sets the tooth quality to 10-11. Straight teeth. Pressure angle 20°.
