MÄDLERMÄDLER· Spur Gears, Toothed Racks, Internal Gears, Ratchet Wheels

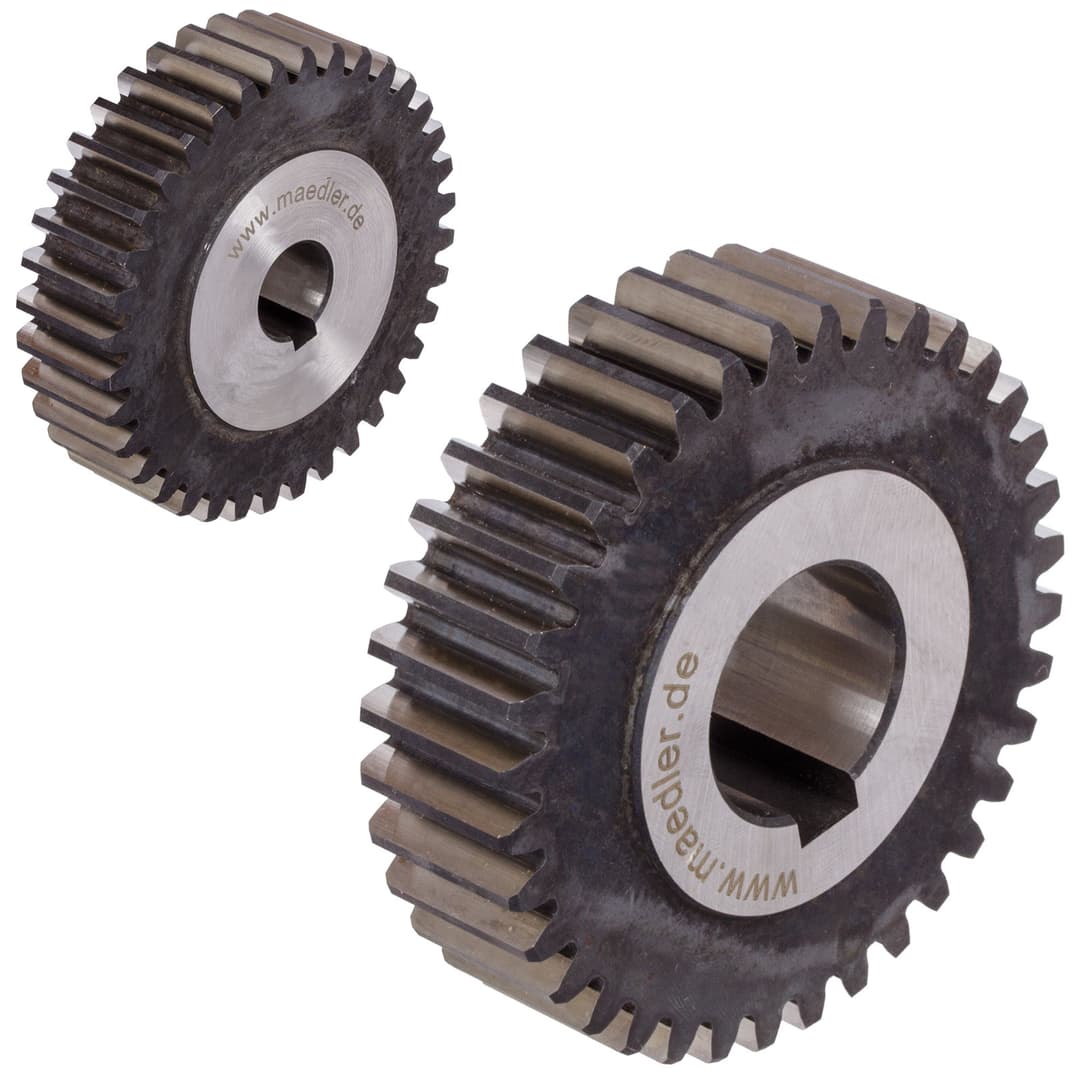

Precision spur gear made of steel 16MnCr5 module 2 60 teeth bore 35mm hardened and ground outside diameter 124mm
Manufacturer part no. 24186035
$315.77≈ 274.22 €
In stock — 2 unitslead time 14 d
Estimated landed cost
| Item | €274.22 |
|---|---|
| Shipping | €15.00 |
| VAT (20%) | €57.84 |
| Total delivered | €347.06 |
Estimate for a single item delivered to mainland France, shipped from outside the EU: customs duty and clearance fees may apply and are charged by the carrier.
Datasheets & documents
Specifications (automatically extracted)
Mechanical
| Weight | 1.671 kg |
Other characteristics

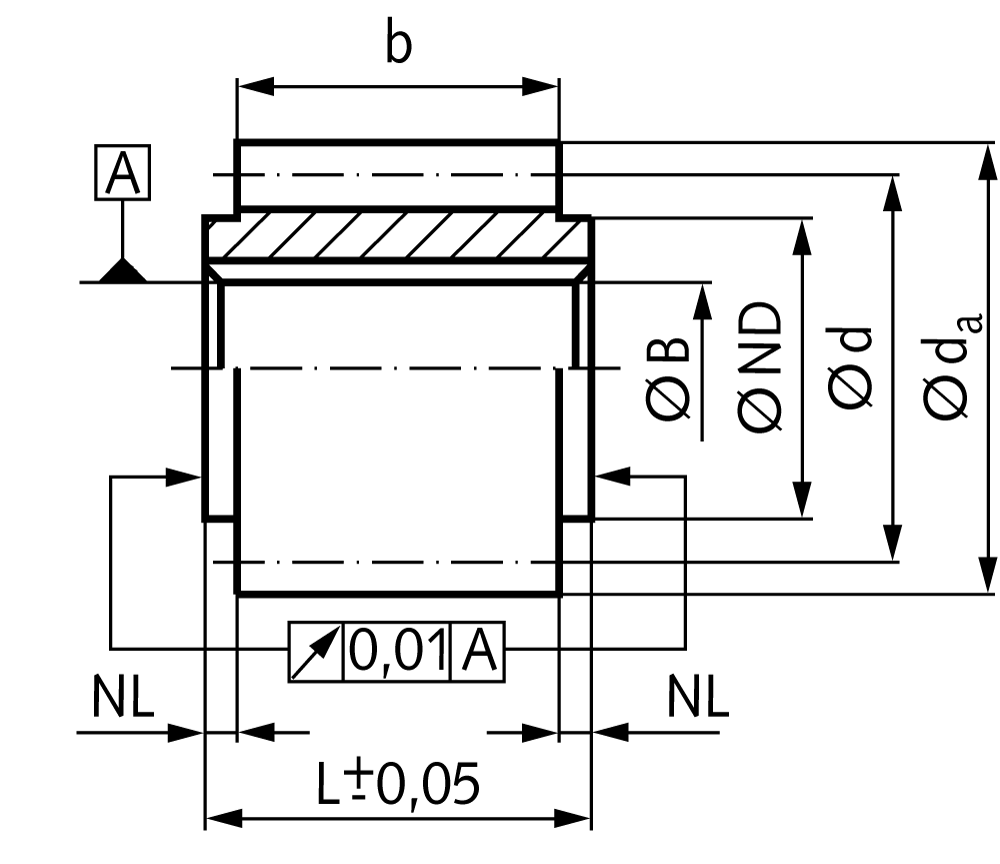

| Bore diameter | 35 mm |
| Hub diameter | 70 mm |
| Max torque | 337 Nm |
| Module | 2 |
| No of teeth | 60 |
| Outer diameter | 124 mm |
| Pitch circle diameter | 120 mm |
| Tooth quality | 7 |
| Tooth width | 20 mm |
| Hardened | Yes |
| Hub length | 1.5/1.5 mm |
| Material | Steel (A29) |
| Surface | Ground finish |
Description
Material: Steel 16MnCr5, case hardened HRC 58 ± 2. Teeth, bores and faces ground. Tooth quality 7 e25. Pressure angle 20°. Feather Keyways in accordance with DIN 6885/1, tolerance P9. Position of keyway to tooth is not defined.
