MÄDLERMÄDLER· Spur Gears, Toothed Racks, Internal Gears, Ratchet Wheels

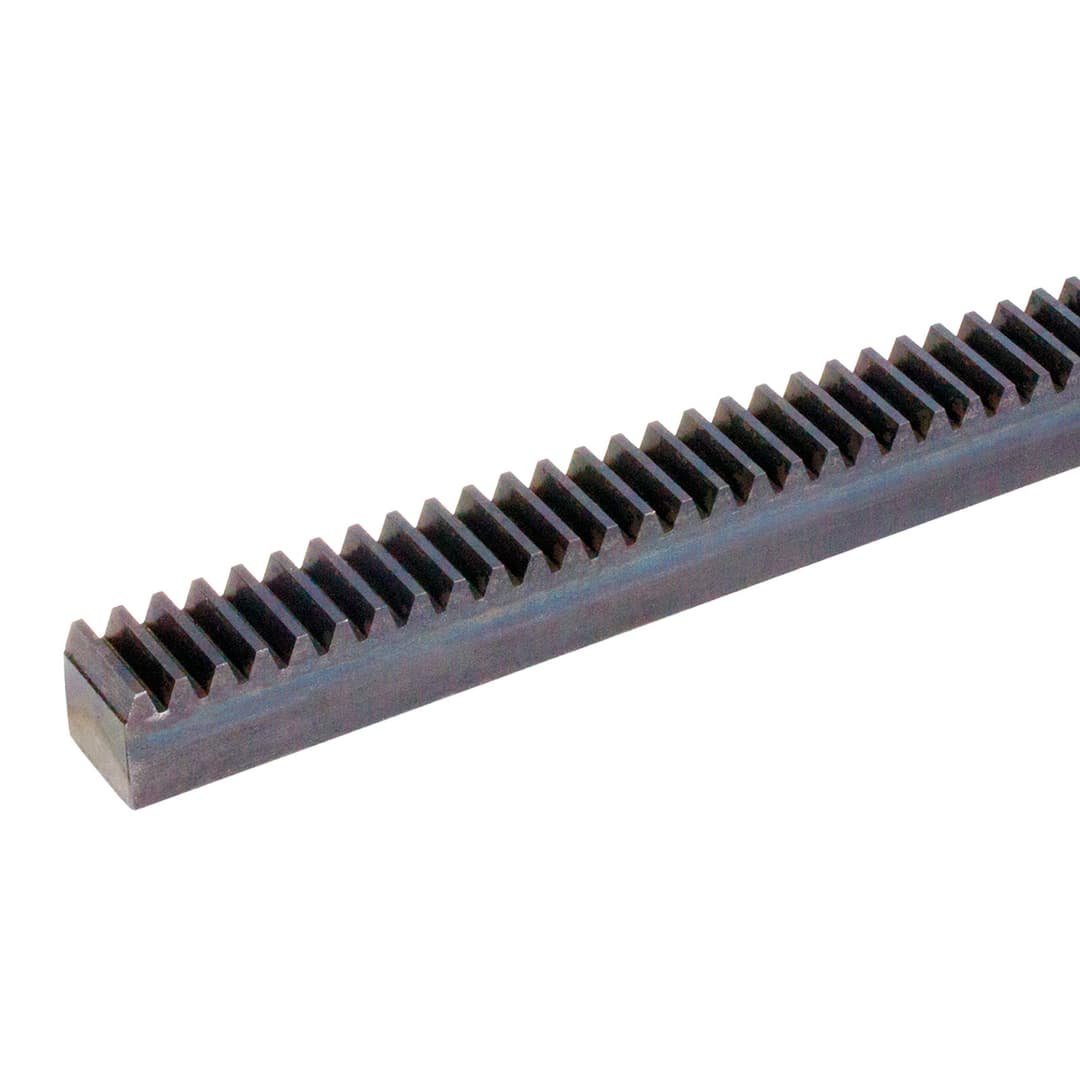

Gear rack steel C45K module 2 tooth width 20mm height 20mm length 2000mm teeth induction hardened
Manufacturer part no. 24188609
$268.04≈ 232.77 €
In stock — 1 unitslead time 14 d
Estimated landed cost
| Item | €232.77 |
|---|---|
| Shipping | €15.00 |
| VAT (20%) | €49.55 |
| Total delivered | €297.32 |
Estimate for a single item delivered to mainland France, shipped from outside the EU: customs duty and clearance fees may apply and are charged by the carrier.
Datasheets & documents
Specifications (automatically extracted)
Mechanical
| Weight | 5.5 kg |
Other characteristics
| Module | 2 |
| Nominal length | 2 000 mm |
| Tooth width | 20 mm |
| Finish size | 2004.0-1.5 mm |
| Hardened | Yes |
| Material | Steel (1045) |
| Surface | Blank |
| Tooth quality | 10-11 |
Description
Material: Bright steel C45K. Tooth area induction hardened, 54 +4 HRC. Precisely Straightened. Teeth milled in quality 8. But the hardening sets the tooth quality to 10-11. Cross-section tolerance h11 = -1/10 to -2/10 depending on size. Straight teeth. Pressure angle 20°. Tooth quality 8d25 modelled on DIN 3962, 3967, 3968. The teeth on the gear racks are manufactured using an overhead milling cutter. This leads to negative tolerances for dimension a and h0: Module 2: -0,2 mm. Module 3 to 4: -0,3 mm. Module 5: -0,4 mm. * Length = Nominal length. The real length is roughly one multiple of the pitch.
