MÄDLERMÄDLER· Spur Gears, Toothed Racks, Internal Gears, Ratchet Wheels

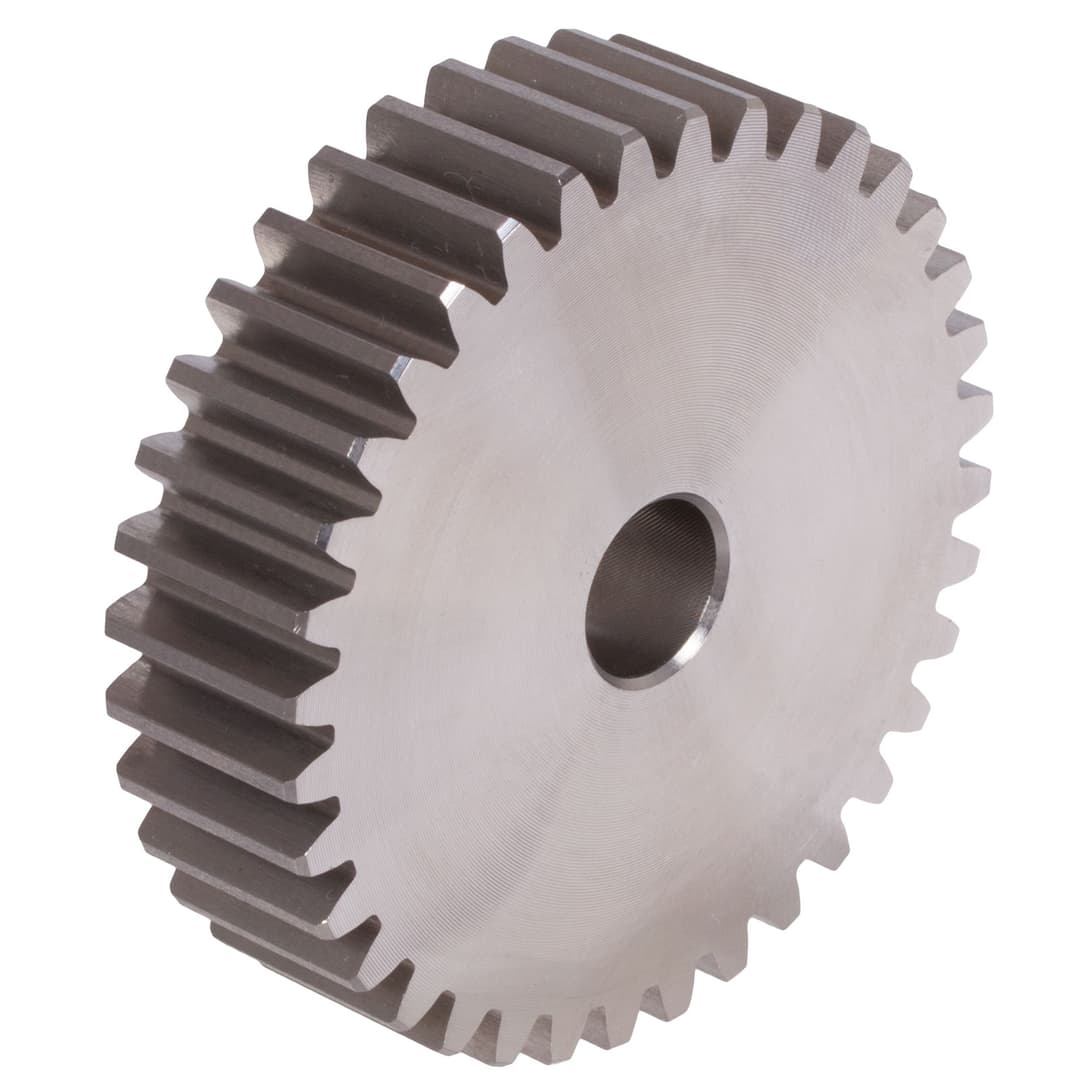

Spur gear made of steel C45 without hub module 3 55 teeth tooth width 30mm outside diameter 171mm
Manufacturer part no. 24311055
$156.05≈ 135.52 €
In stock — 1 unitslead time 14 d
Estimated landed cost
| Item | €135.52 |
|---|---|
| Shipping | €15.00 |
| VAT (20%) | €30.10 |
| Total delivered | €180.62 |
Estimate for a single item delivered to mainland France, shipped from outside the EU: customs duty and clearance fees may apply and are charged by the carrier.
Datasheets & documents
Specifications (automatically extracted)
Mechanical
| Weight | 4.93 kg |
Other characteristics
| Bore diameter | 20 mm |
| Max torque | 331 Nm |
| Module | 3 |
| No of teeth | 55 |
| Outer diameter | 171 mm |
| Pitch circle diameter | 165 mm |
| Tooth quality | 8 |
| Tooth width | 30 mm |
| Hardened | No |
| Hub | Without |
| Material | Steel (1045) |
| Surface | Blank |
Description
Material: C45. Milled teeth. Tooth quality 8d25 DIN 3967. Pressure angle 20°.
