MÄDLERMÄDLER· Spur Gears, Toothed Racks, Internal Gears, Ratchet Wheels

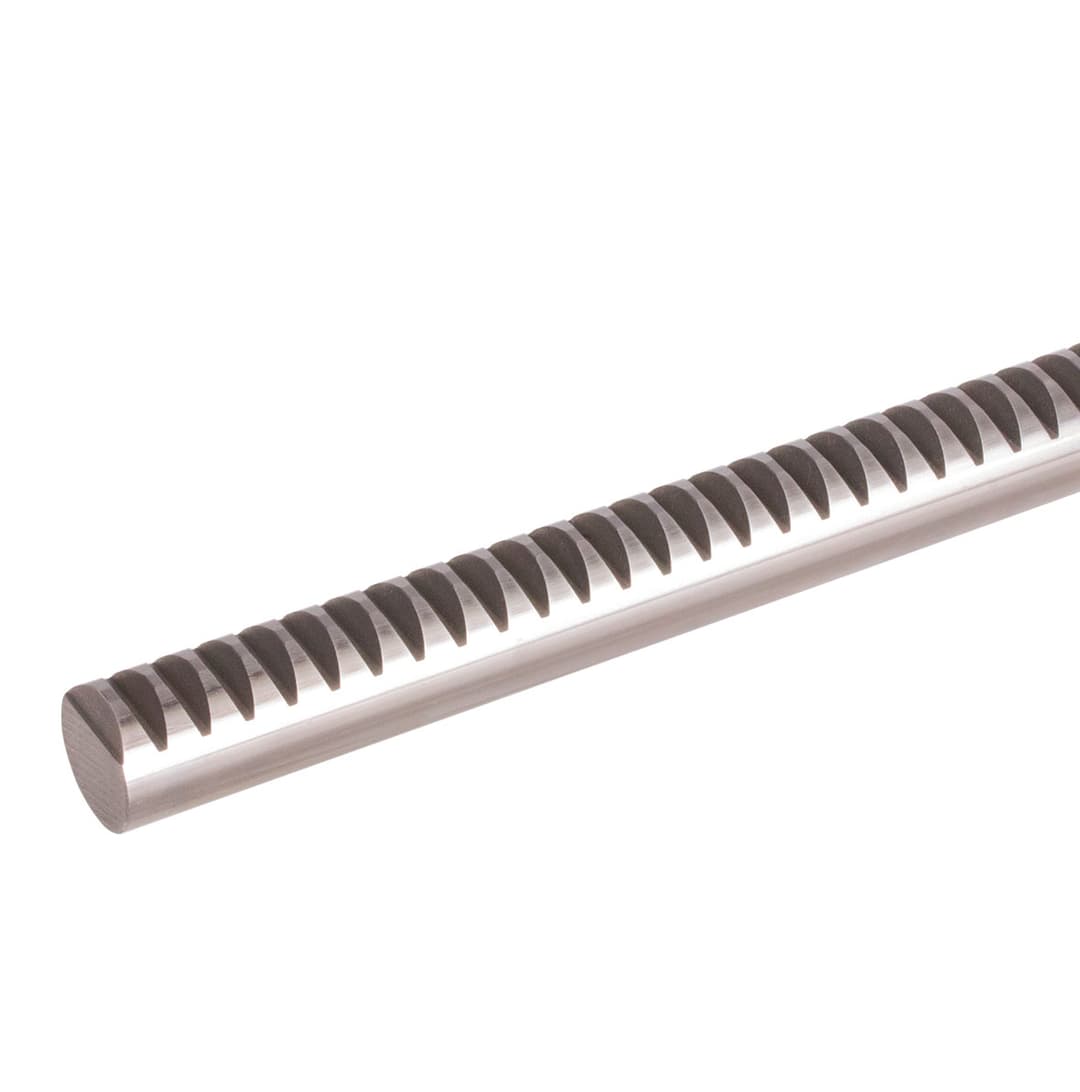

Round gear rack from steel St50K module 4 diameter 40mm h6 length 1000mm
Manufacturer part no. 24463200
$287.20≈ 249.41 €
In stock — 1 unitslead time 14 d
Estimated landed cost
| Item | €249.41 |
|---|---|
| Shipping | €15.00 |
| VAT (20%) | €52.88 |
| Total delivered | €317.29 |
Estimate for a single item delivered to mainland France, shipped from outside the EU: customs duty and clearance fees may apply and are charged by the carrier.
Datasheets & documents
Specifications (automatically extracted)
Mechanical
| Weight | 9.12 kg |
Other characteristics
| Module | 4 |
| Tooth quality | 8 |
| Hardened | No |
| Material | Steel (A36) |
| Surface | Blank |
Description
Material: Up to length 1,500mm: Steel St50K. Length 2000mm = Steel C45k. Outside diameter = h6 ground. Straight teeth, milled. Pressure angle 20°. Tooth quality 8d25 modelled on DIN 3967. The teeth on the gear racks are manufactured using an overhead milling cutter. This leads to negative tolerances. Dimensions ha and h0: up to Module 2: -0,2 mm. Module 2,5 – 4: -0,3 mm. Module 5 – 6: -0,4 mm.
