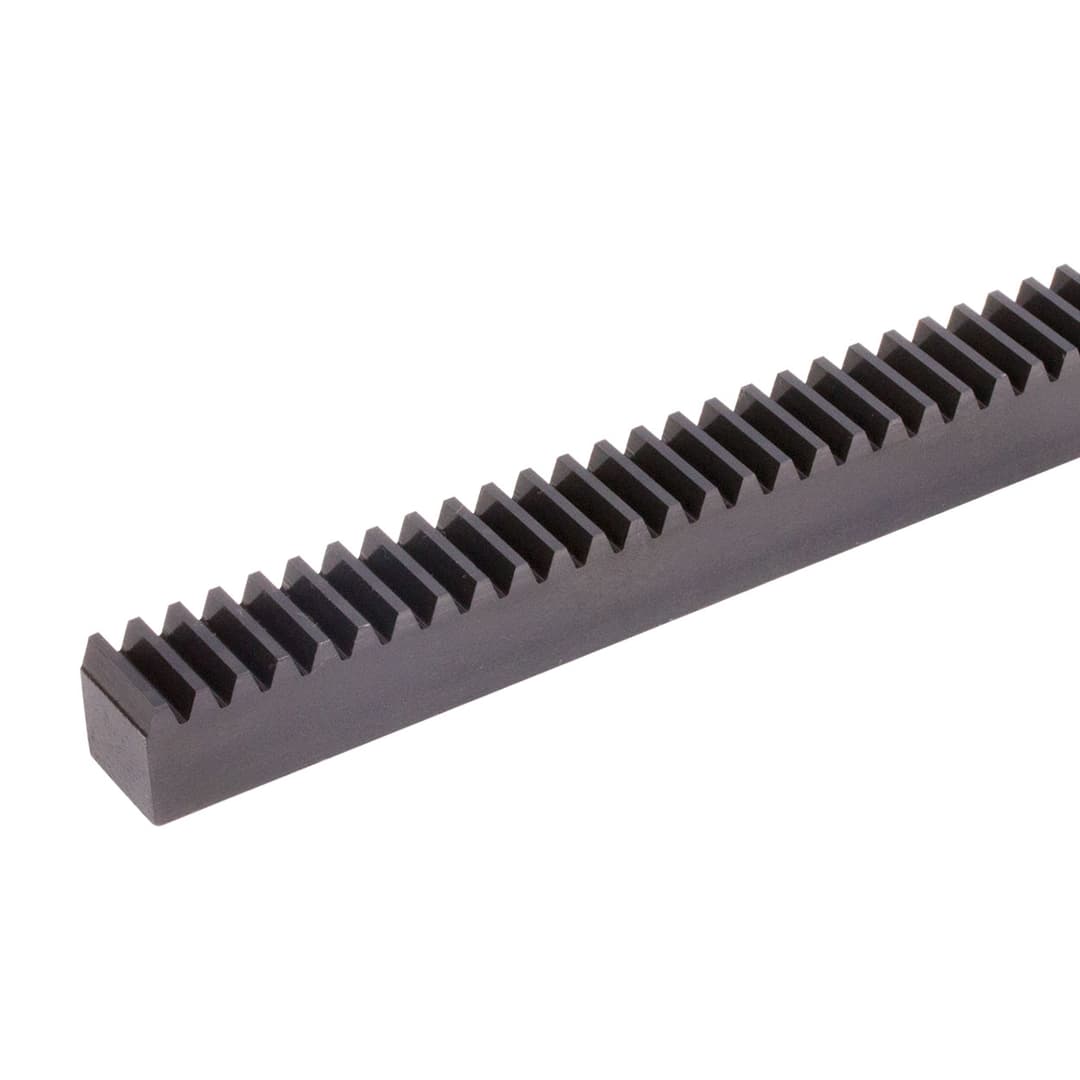

Gear rack made of steel C45 black oxide finished module 5 tooth width 50mm height 50mm nominal length 1000mm
Manufacturer part no. 24511605
$270.30≈ 234.74 €
In stock — 3 unitslead time 14 d
Estimated landed cost
| Item | €234.74 |
|---|---|
| Shipping | €15.00 |
| VAT (20%) | €49.95 |
| Total delivered | €299.69 |
Estimate for a single item delivered to mainland France, shipped from outside the EU: customs duty and clearance fees may apply and are charged by the carrier.
Datasheets & documents
Specifications (automatically extracted)
Mechanical
| Weight | 17.5 kg |
Other characteristics
| Module | 5 |
| Nominal length | 1 000 mm |
| Tooth quality | 9 |
| Tooth width | 50 mm |
| Effective length | 1005.0 -1.5 mm |
| Hardened | No |
| Material | Steel (1045) |
| Surface | Black oxide finish |
Description
Material: Steel C45, black oxide finish. Milled teeth. Straight tooth. Pressure angle 20°. Tooth quality 9. From Module 2,5 cut for continuous linking. * Length = Nominal length. The real length is roughly one multiple of the pitch.
