MÄDLERMÄDLER· Spur Gears, Toothed Racks, Internal Gears, Ratchet Wheels

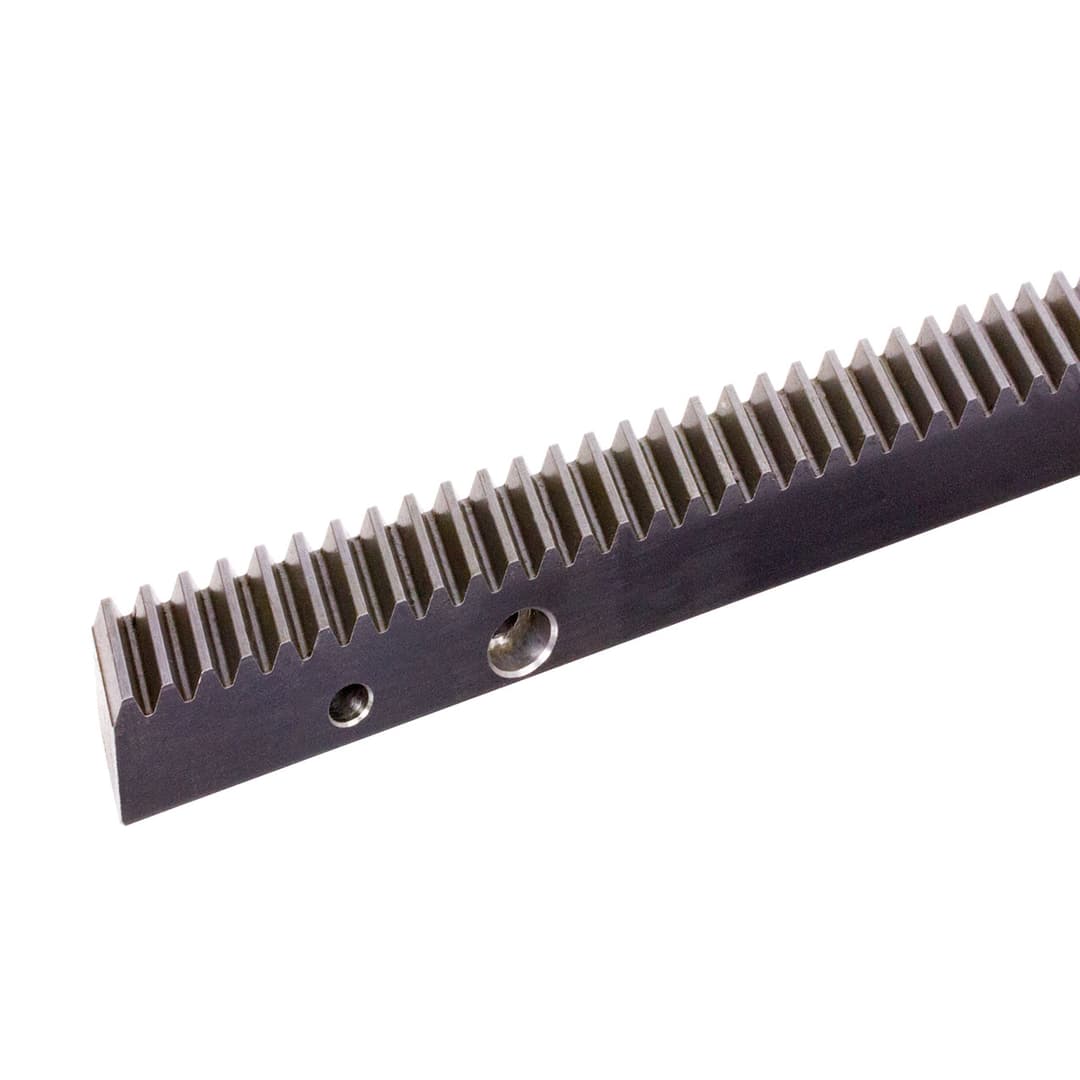

Precision gear rack made of bright steel 900N/mm² module 2 2000mm long without bores
Manufacturer part no. 25160910
$501.90≈ 435.87 €
In stock — 1 unitslead time 14 d
Estimated landed cost
| Item | €435.87 |
|---|---|
| Shipping | €15.00 |
| VAT (20%) | €90.17 |
| Total delivered | €541.04 |
Estimate for a single item delivered to mainland France, shipped from outside the EU: customs duty and clearance fees may apply and are charged by the carrier.
Datasheets & documents
Specifications (automatically extracted)
Mechanical
| Weight | 8.6 kg |
Other characteristics
| No of teeth | 300 |
| Tooth quality | 8 |
| Hardened | No |
| Material | Steel |
| Module | 2 (helical, RH) |
| Surface | Blank |
| Type | Without holes |
Description
Material: High-quality, specially treated bright steel with approx. 900 N/mm² tensile strength. Helical tooth system, right hand 19° 31′ 42”. Milled teeth, tooth quality 8e27. For continuous linking. See also the matching left hand-toothed counterparts to simplify the mounting. Note: These right-handed racks are designed to be used in combination with our helical-toothed left-handed gears. 1) GTf /300 = total pitch error, i.e. the max. permissible deviation (per 300 mm) of the measured length of the rack compared to the theoretical length L300, with L300 = (m / cos ß) * p * z300). *Tangential force at tooth, calculated for z = 20. With a smaller number of teeth, the tangential force has to be reduced by 10%.
