MÄDLERMÄDLER· Spur Gears, Toothed Racks, Internal Gears, Ratchet Wheels

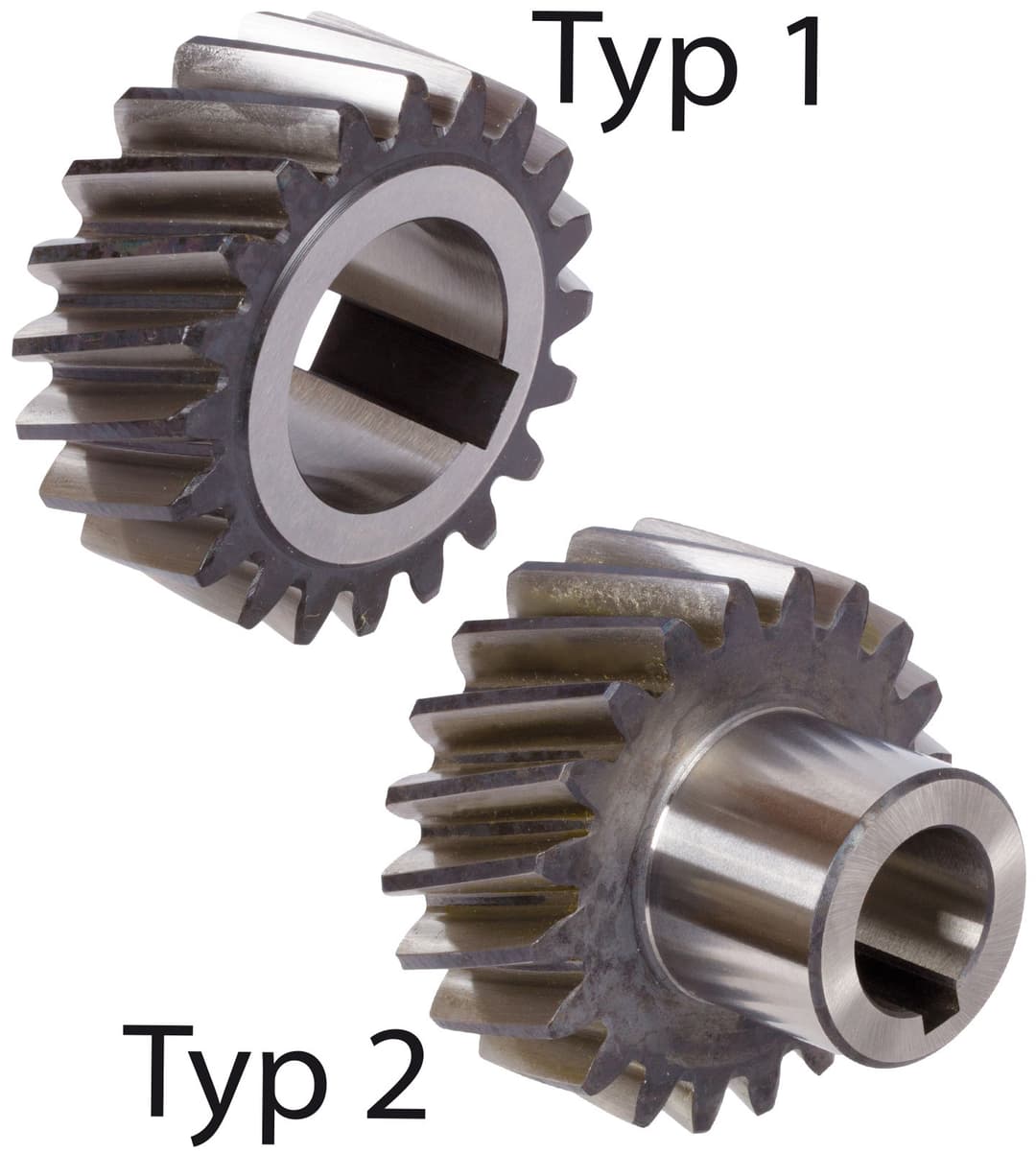

Precision spur gear made of steel 16MnCr5 module 3 20 teeth bore 22H6 hardened and grounded helical tooth 19°31’42” left handed outside diameter 69.7mm
Manufacturer part no. 25302022
$365.38≈ 317.31 €
In stock — 1 unitslead time 14 d
Estimated landed cost
| Item | €317.31 |
|---|---|
| Shipping | €15.00 |
| VAT (20%) | €66.46 |
| Total delivered | €398.77 |
Estimate for a single item delivered to mainland France, shipped from outside the EU: customs duty and clearance fees may apply and are charged by the carrier.
Datasheets & documents
Specifications (automatically extracted)
Mechanical
| Weight | 600 g |
Other characteristics
| Bore diameter | 22 mm |

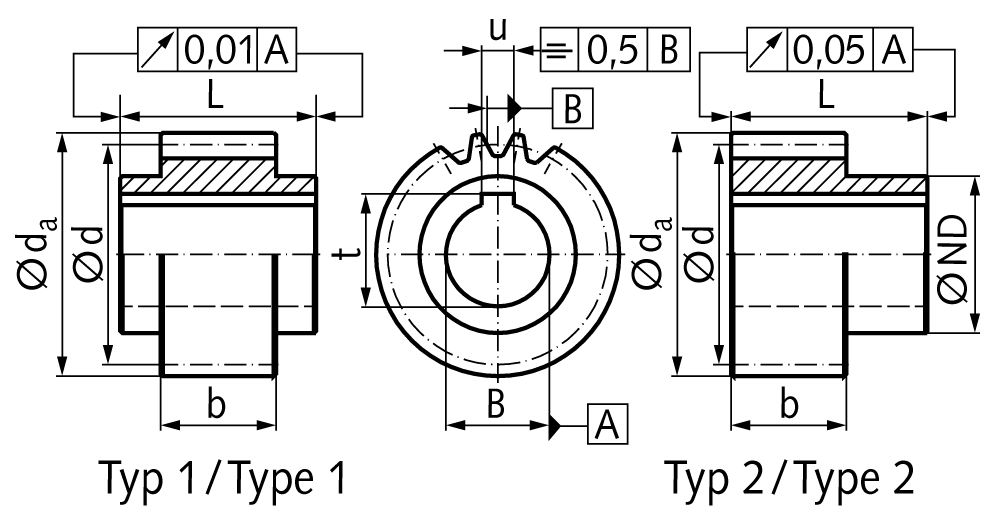

| Fig | 2 |
| Hub diameter | 36 mm |
| Max torque | 275 Nm |
| No of teeth | 20 |
| Outer diameter | 69.7 mm |
| Pitch circle diameter | 63.66 mm |
| Tooth quality | 7 |
| Tooth width | 28 mm |
| Hardened | Yes |
| Material | Steel (A29) |
| Module | 3 (helical, LH) |
| Surface | Ground finish |
Description
Material: Steel 16MnCr5, case hardened approx. 60 HRC. Teeth, bores and faces ground. Helical tooth system, left hand 19° 31′ 42”. Tooth quality 7e25. Keyways in accordance with DIN 6885/1, tolerance P9. Note: These gears are designed to be used in combination with our helical-toothed right-handed gear racks. If this gear is used to drive a mating gear instead, this mating gear must have the same lead angle and the opposite tooth direction (right hand).
