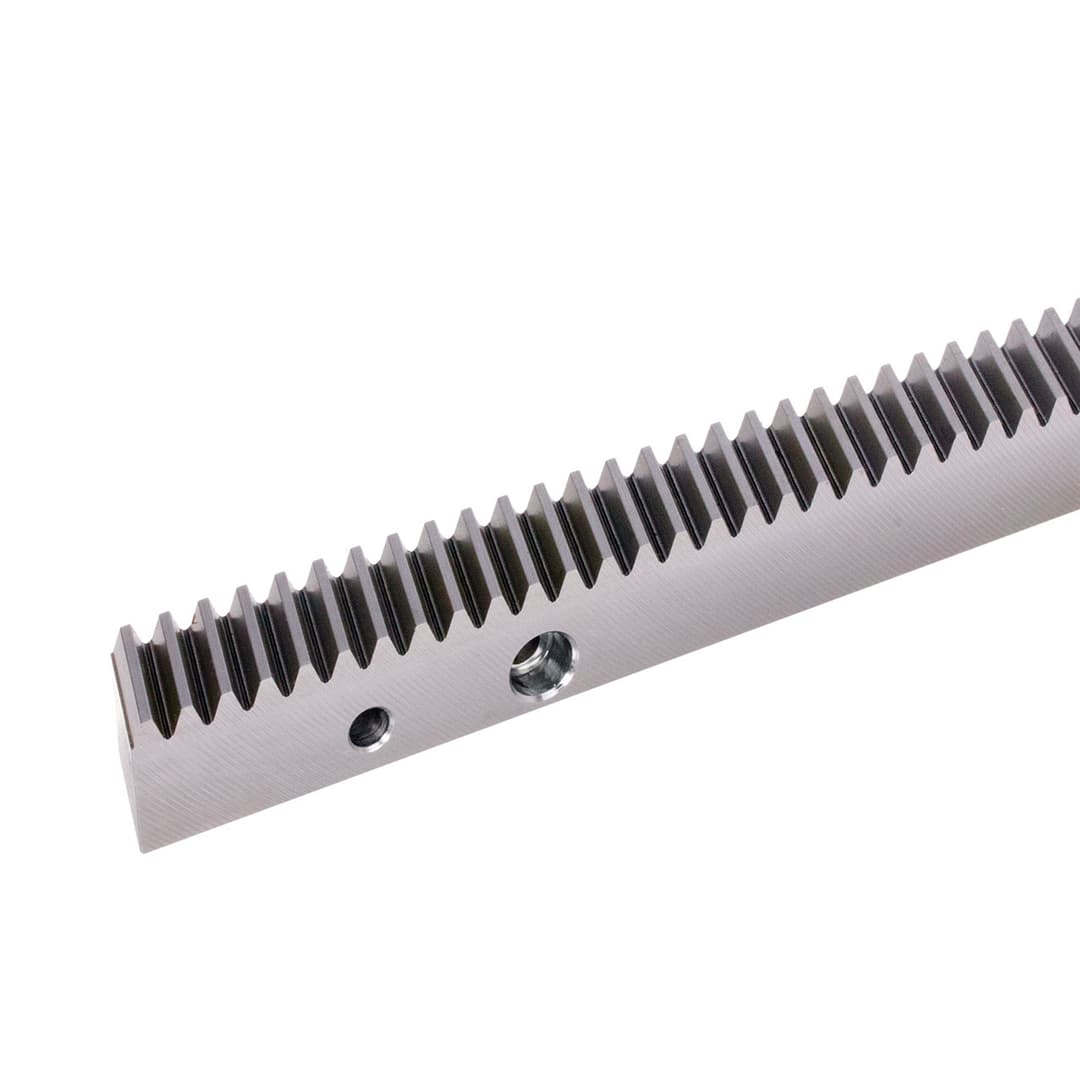

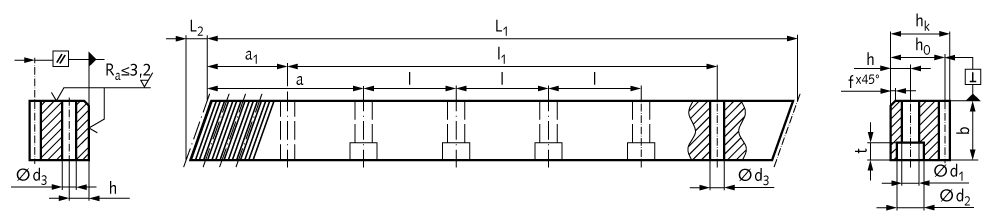

Precision gear rack made of steel 16MnCr5, module 4 1000mm long without bores; teeth hardened and all sides ground; teeth RH 19°31”42″
Manufacturer part no. 25460500
$880.75≈ 764.87 €
In stock — 1 unitslead time 14 d
Estimated landed cost
| Item | €764.87 |
|---|---|
| Shipping | €15.00 |
| VAT (20%) | €155.97 |
| Total delivered | €935.84 |
Estimate for a single item delivered to mainland France, shipped from outside the EU: customs duty and clearance fees may apply and are charged by the carrier.
Datasheets & documents
Specifications (automatically extracted)
Mechanical
| Weight | 10.7 kg |
Other characteristics
| No of teeth | 75 |
| Tooth quality | 6 |
| Hardened | Yes |
| Material | Steel (A29) |
| Module | 4 (helical, RH) |
| Surface | Ground finish |
| Type | Without holes |
Description
Material: 16MnCr5, teeth induction hardened to about 60 HRC. After hardening ground all around. As only the teeth are hardened subsequent drilling and pinning is easily possible. Helical tooth system, right hand 19° 31′ 42”. Teeth milled, hardened and ground. Tooth quality 6h25. For continuous linking. See also the matching left hand-toothed counterparts to simplify the mounting. Note: These right-handed racks are designed to be used in combination with our helical-toothed left-handed gears. 1) GTf /300 = total pitch error, i.e. the max. permissible deviation (per 300 mm) of the measured length of the rack compared to the theoretical length L300, with L300 = (m / cos ß) * p * z300). *Tangential force at tooth, calculated for z = 20. With a smaller number of teeth, the tangential force has to be reduced by 10%.
