MÄDLERMÄDLER· Spur Gears, Toothed Racks, Internal Gears, Ratchet Wheels

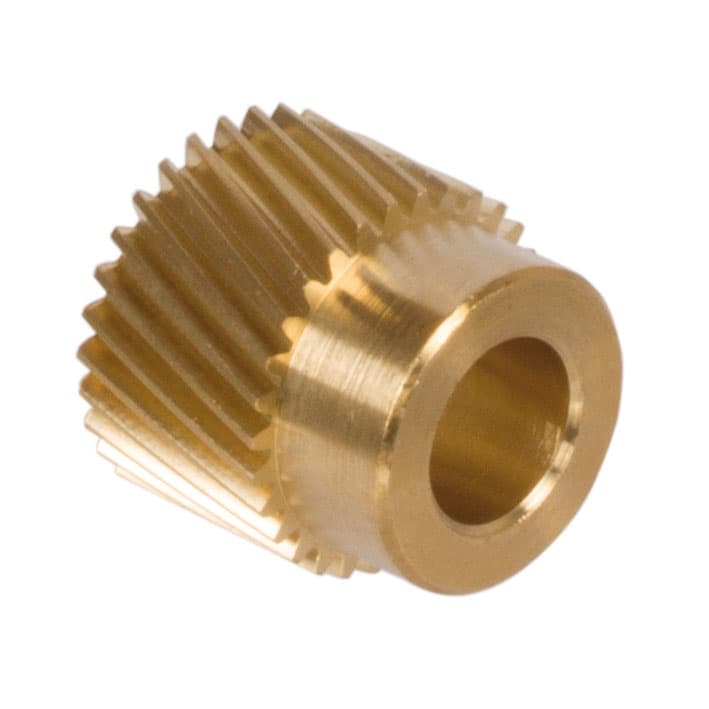

Spur gear made of brass Ms58 with hub module 0.3 24 teeth tooth width 5mm helical tooth 20° right handed outside diameter 8.3mm
Manufacturer part no. 26902400
$27.09≈ 23.53 €
In stock — 5 unitslead time 14 d
Estimated landed cost
| Item | €23.53 |
|---|---|
| Shipping | €15.00 |
| VAT (20%) | €7.71 |
| Total delivered | €46.24 |
Estimate for a single item delivered to mainland France, shipped from outside the EU: customs duty and clearance fees may apply and are charged by the carrier.
Datasheets & documents
Specifications (automatically extracted)
Mechanical
| Weight | 1.9 g |
Other characteristics

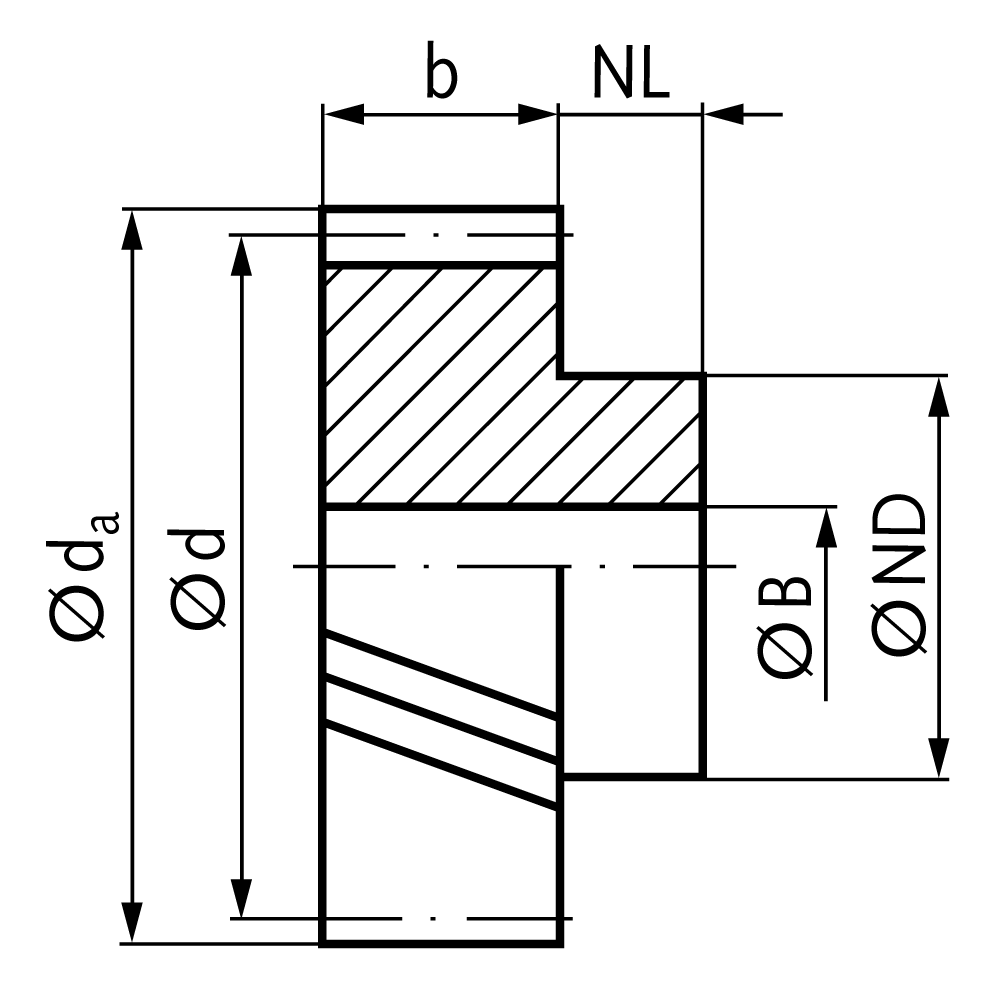

| Hub diameter | 7 mm |
| Hub length | 4 mm |
| Max torque | 3 Ncm |
| No of teeth | 24 |
| Outer diameter | 8.3 mm |
| Pilot hole | 4.5 mm |
| Pitch circle diameter | 7.66 mm |
| Tooth quality | 8 |
| Tooth width | 5 mm |
| Hardened | No |
| Hub | With |
| Material | Brass (Ms58) |
| Module | 0.3 (helical, RH) |
| Surface | Blank |
Description
Material: Brass Ms58 (2.0401). Milled teeth. 20° helical tooth system, right hand. Pressure angle 20°. Within one module series gears with helical tooth system always mesh in right-hand/left-hand pairing. To be used with our gear rack product no. 26960100
