MÄDLERMÄDLER· Spur Gears, Toothed Racks, Internal Gears, Ratchet Wheels

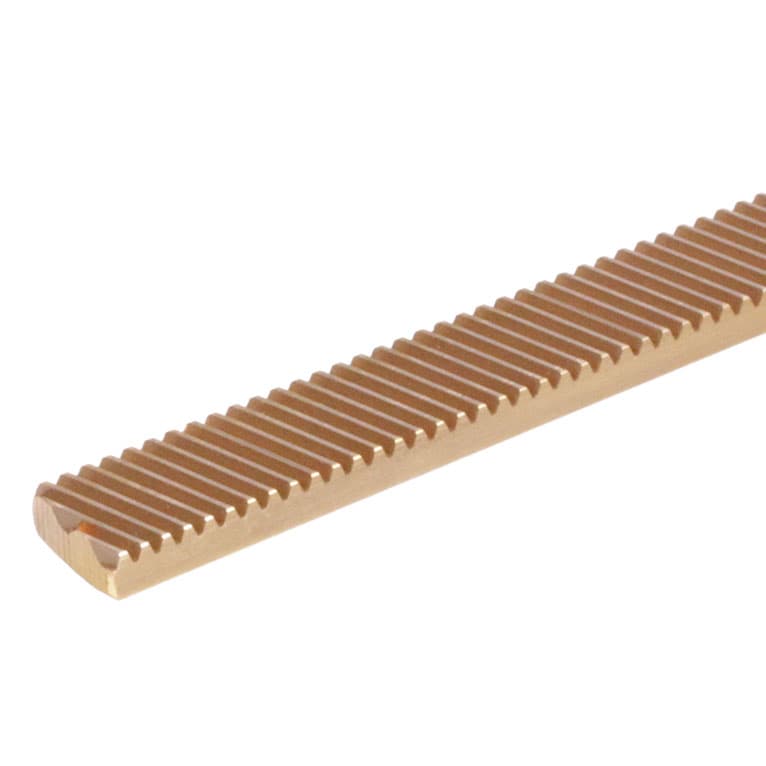

Gear rack made of brass Ms 58 module 0.5 width 10mm height 4mm length 500mm helical tooth 20° left handed
Manufacturer part no. 26960600
$66.31≈ 57.59 €
In stock — 5 unitslead time 14 d
Estimated landed cost
| Item | €57.59 |
|---|---|
| Shipping | €15.00 |
| VAT (20%) | €14.52 |
| Total delivered | €87.11 |
Estimate for a single item delivered to mainland France, shipped from outside the EU: customs duty and clearance fees may apply and are charged by the carrier.
Datasheets & documents
Specifications (automatically extracted)
Mechanical
| Weight | 139 g |
Other characteristics
| Tooth quality | 8 |
| Hardened | No |
| Material | Brass (Ms58) |
| Module | 0.5 (helical, LH) |
| Surface | Blank |
Description

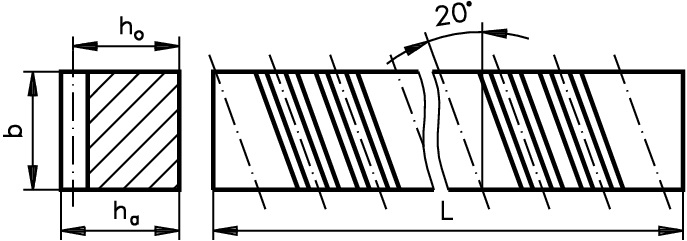

Material: Brass Ms58 (2.0401), milled teeth. 20° helical tooth system, left hand. Pressure angle 20°. The teeth on the gear racks are manufactured using an overhead milling cutter. This leads to negative tolerances for dimensions a and h0: -0,2 mm. * Length = Nominal length. The real length is roughly one multiple of the pitch. Attention: These standardized left-hand gear racks always have to be paired with right-hand-toothed pinions.
